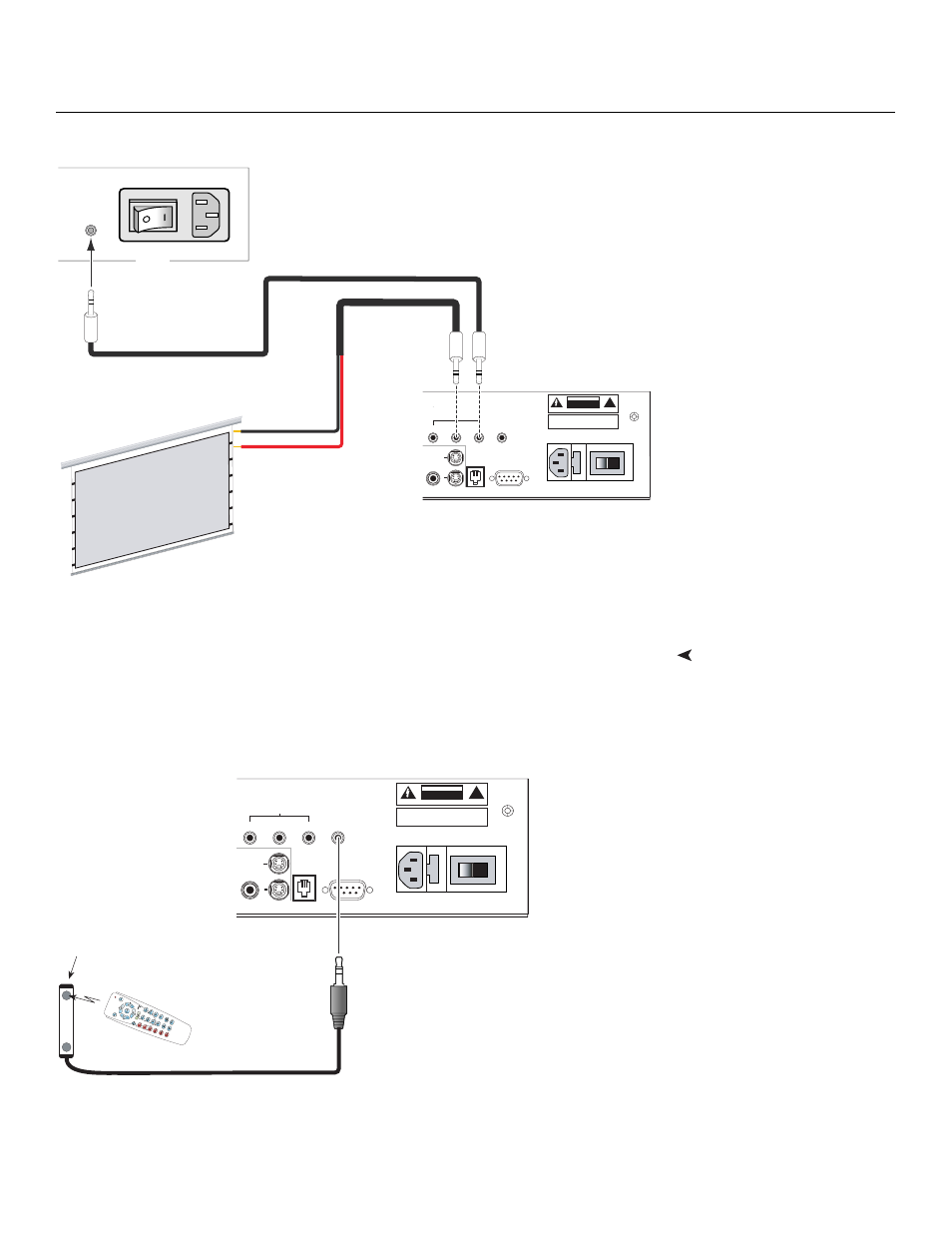

Figure 3-14. Connecting 12-Volt Trigger Outputs
Connecting an External IR
Receiver to the DHD
Controller If infrared signals from the remote control cannot reach the DHD Controller due to
excessive distance or obstructions such as walls or cabinet doors, you can connect an
external IR receiver to the DHD Controller to extend the range of the remote control. See
Figure 3-15.
Figure 3-15. External IR Receiver Connection
Tip = +12V
Sleeve = Ground
