6
SOURCE INPUT CONNECTIONS
Your source inputs are located at the top left corner of the
back panel. Connect each source output, left and right, using
quality signal cables / patch cables to the CAi source input.
Label each cable the name of your source and the input
number of the CAi you have selected. Repeat until all
sources are connected. List them down below.
List 1 – Source names should be written below
Input 1 ________________ Input 2 ________________
Input 3 ________________ Input 4 ________________
SPEAKER CONNECTIONS
Each speaker connection on the back panel corresponds to
one room/zone. Wire your speakers by first removing the
connector for the chosen zone. Using wire strippers, strip
back 1/4" of the end of the wire. Insert the proper polarity,
left + to left +, left- to left- etc., until all wires are connect-
ed in each zone output. Label each wire with the room name
and zone number. Write down the room name to the zone
number below. Note: We recommend 8 Ohm minimum
speakers for each zone. However, speakers as low as 4 Ohm
can be safely used in up to two zones, if necessary.
List 2 – Wire color should be written below
(Color) Left + _______________ Left - _______________
Right + _______________ Right - _______________
List 3 – Room names should be written below
Zone 1 ________________ Zone 2 ________________
Zone 3 ________________ Zone 4 ________________
R
EAR
P
ANEL
C
ONNECTIONS
1
R
L
2 1
R
L
2 3 4
CA6.4i NEWMARKET, NH U.S.A.
~110VAC
~220-240VAC
~50-60Hz
400W
VOLTAGE
110V
220-240V
FUSE
F4A
F2A
K EYPAD P ORTS
Z ONE P REAMP
O UTPUTS
1 2 3 4 5 6
O UTPUT T O 8 O HM S PEAKER
1 2 3 4 5 6
~110VAC ~220-240VAC
IR EMITTERS WARNING : SHOCK HAZARD – DO NOT OPEN
AVIS : RISQUE DE CHOC ELECTRIQUE –
NES PAS OUVRIR.
SERIAL #
MUTE
VARIABLE
FIXED
VARIABLE
FIXED
IN OUT 12V TRIG
S OURCE I NPUTS
LINK
IN OUT
Source Input
Connections
Keypad Zone Input Zone Preamp Outputs
Variable/Fixed
Output Switch
Mute Inputs
Speaker Output Connectors IR Link
In and Out
Emitter Outputs
Voltage Selector Switch
AC110/240
Input
Fuse
Holder
12 Volt Trigger
Output
R
L
1
R
L
R
L
2
CA4.4i
NEWMARKET, NH U.S.A.
~110VAC
~220-240VAC
~50-60Hz
400W
VOLTAGE
110V
220-240V
FUSE
F4A
F2A
K EYPAD P ORTS
Z ONE P REAMP
O UTPUTS
1 2 3 4
O UTPUT T O 8 O HM S PEAKER
1 2 3 4
~110VAC ~220-240VAC
IR EMITTERS WARNING : SHOCK HAZARD – DO NOT OPEN
AVIS : RISQUE DE CHOC ELECTRIQUE –
NES PAS OUVRIR.
SERIAL #
MUTE
VARIABLE
FIXED
VARIABLE VARIABLE
FIXED FIXED
IN OUT 12V TRIG
3 4
Z ONE P REAMP
O UTPUTS
VARIABLE
FIXED
DESIGNED IN USA
MADE IN KOREA
1 2 3 4
S OURCE I NPUTS
LINK
IN OUT
Source Input
Connections
Keypad Zone Input Zone Preamp Outputs
Variable/Fixed
Output Switch Mute Inputs
Speaker Output Connectors IR Link
In and Out
Emitter Outputs
Voltage Selector Switch
AC110/240
Input
Fuse
Holder
12 Volt Trigger
Output

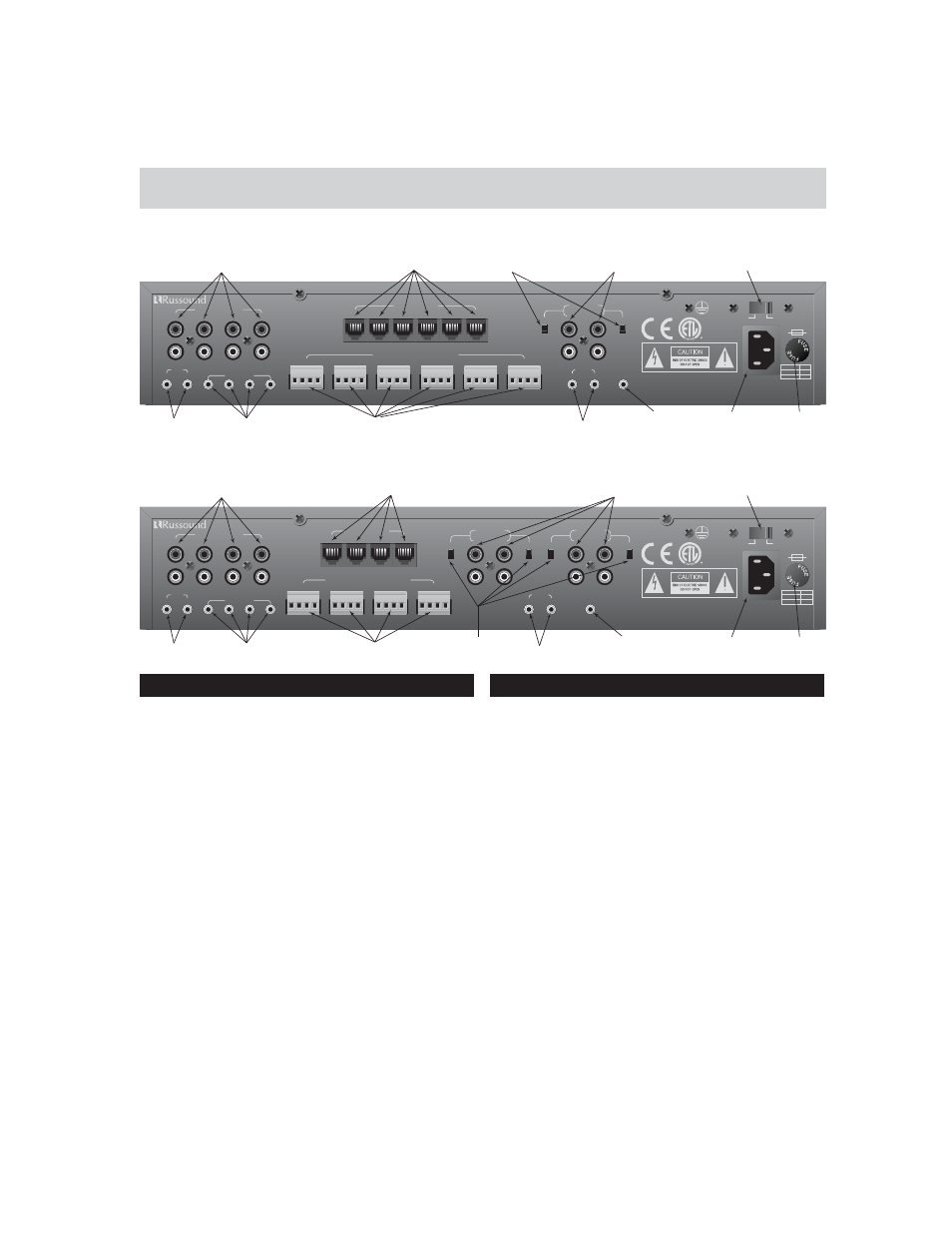

Figure 3 - CA6.4i Rear Panel Connections
Figure 4 - CA4.4i Rear Panel Connections
