10

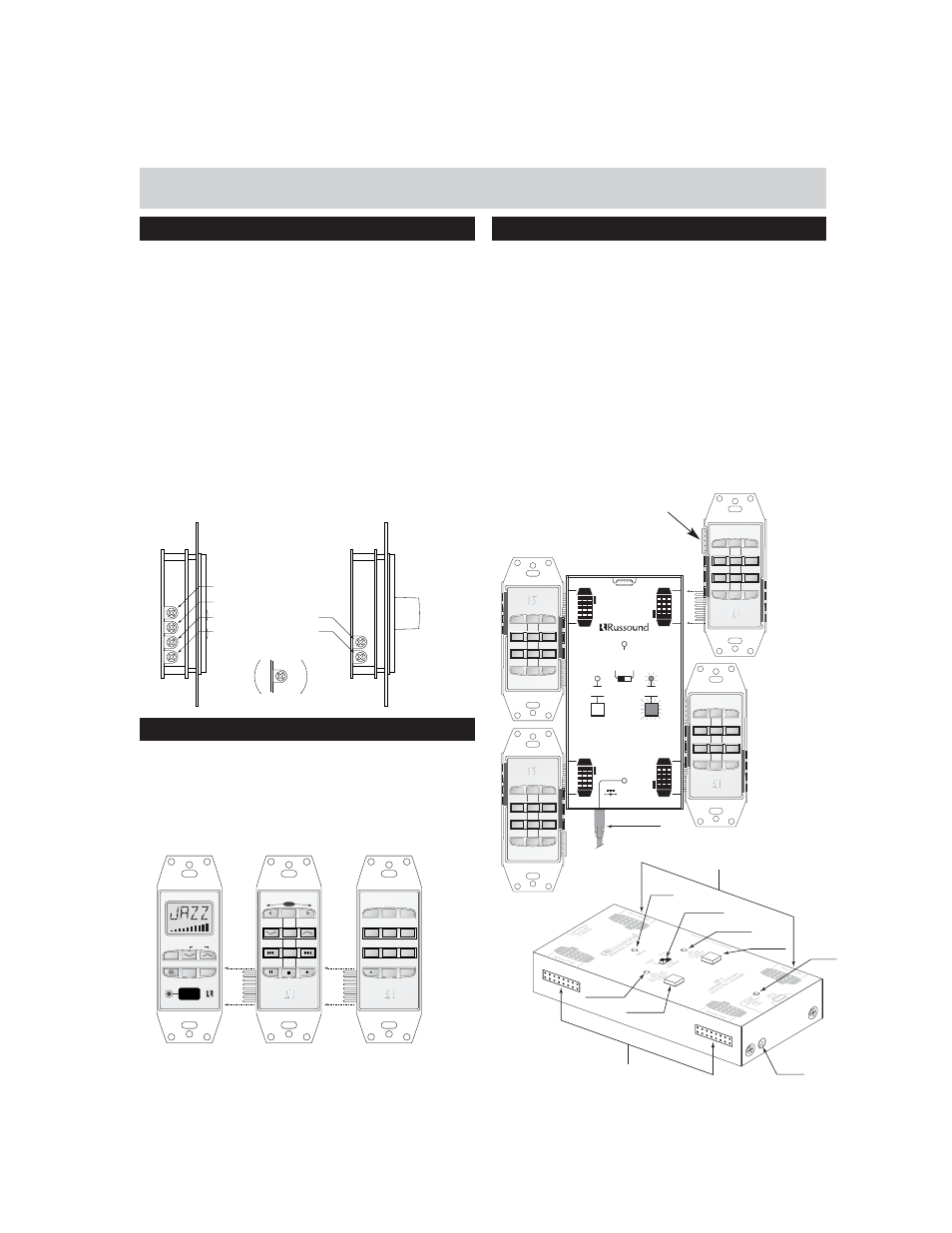

SETTING THE KEYPADS
Before a keypad is installed into the j-box, turn on the
power so that you can operate the keypad.
CA-LCD.2 Only: The amber and the green backlight bright-
ness can be individually set. Note the brightness controls are
located on the side of the keypad. Adjust to the desired
brightness the backlight that first comes on. Press and hold
the lamp button on the front of the keypad until the back-
light switches to the other color. Adjust the brightness for
the selected color.
Both CA-LCD.2 and CA-KP.2: The maximum volume and the
balance should also be set at this time.
Figure 13 - Keypad Adjustments
SOURCE CONTROL KEYPADS OPTION
The optional DSC and DAN source control keypads simply
dock into the side of either the CA-KP.2 or CA-LCD.2 key-
pads via a 16 prong jack. See DSC and/or DAN instruction
manuals for programming instructions.
Figure 14 - Installing the DSC or DAN
INFRARED KEYPAD PROGRAMMER — IKP-1
The optional IKP-1 is a programmer used to simplify and
speed up the IR programming for the DAN and DSC IR learn-
ing keypads. The IKP-1 programmer is compatible with DAN
and DSC IR Keypads which have a 5-pin programming port
located at the top left of the keypad. Refer to IKP-1
Instruction Manual for complete instructions.
1) Loads IR code in 30 seconds.
2) Simultaneous upload to 4 DAN and or DSC keypads
3) Stores 2 keypad configurations
4) Data cable connection for installed keypads
5) Self powered when used with data cable
6) Non-volatile memory
Figure 15 – Multiple
Progamming with IKP-1
I
NSTALLING
K
EYPADS
DIRECT ACCESS
NUMERIC SOURCE KEYPAD
8
9
7
5
6
4
2
3
1
0
ENTER
DIRECT SOURCE CONTROL
SEEK
MODE
SELECT
SCAN
REMOTE SENSOR
VOLUME
SOURCE
STORE
POWER
CA-LCD.2
DSC
DAN
AMBER BRIGHTNESS
GREEN BRIGHTNESS
VOLUME
BALANCE
VOLUME
BALANCE
LESS
MORE
CA-LCD.2
CA-KP.2
PRG CLR RST
IR IN PRG ST
O ERR
PRG CLR RST
IR IN PRG ST
O ERR
PRG CLR RST
IR IN PRG ST
O ERR
T
O
K
EYPAD
DESIGNED IN USA MADE IN KOREA
N
EWMARKET
, NH U.S.A.
IKP-1
I
NFRARED
L
EARNING
K
EYPAD
P
ROGRAMMER
K
EYP
AD
P
OR
T
K
EYP
AD
P
OR
T
K
EYP
AD
P
OR
T
K
EYP
AD
P
OR
T
P
OWER
12VDC 100mA
D
OWNLOAD
F
ROM
K
EYPAD
E
RROR
D
ATA
T
RANSFER
DAN
DSC
U
PLOAD
T
O
K
EYPAD
PRG CLR RST
IR IN PRG ST
O ERR
12VDC Power Supply
IKP-1
IKP-1
DSC or DAN
KEYPAD
Programming
Port
Keypad Ports
Keypad Ports
Upload to
Keypad Button
DAN/DSC Program
Toggle Switch
12VDC
Connection
Power LED
Upload
Verification LED
Error LED
Download from
Keypad Button
Download
Verification LED
