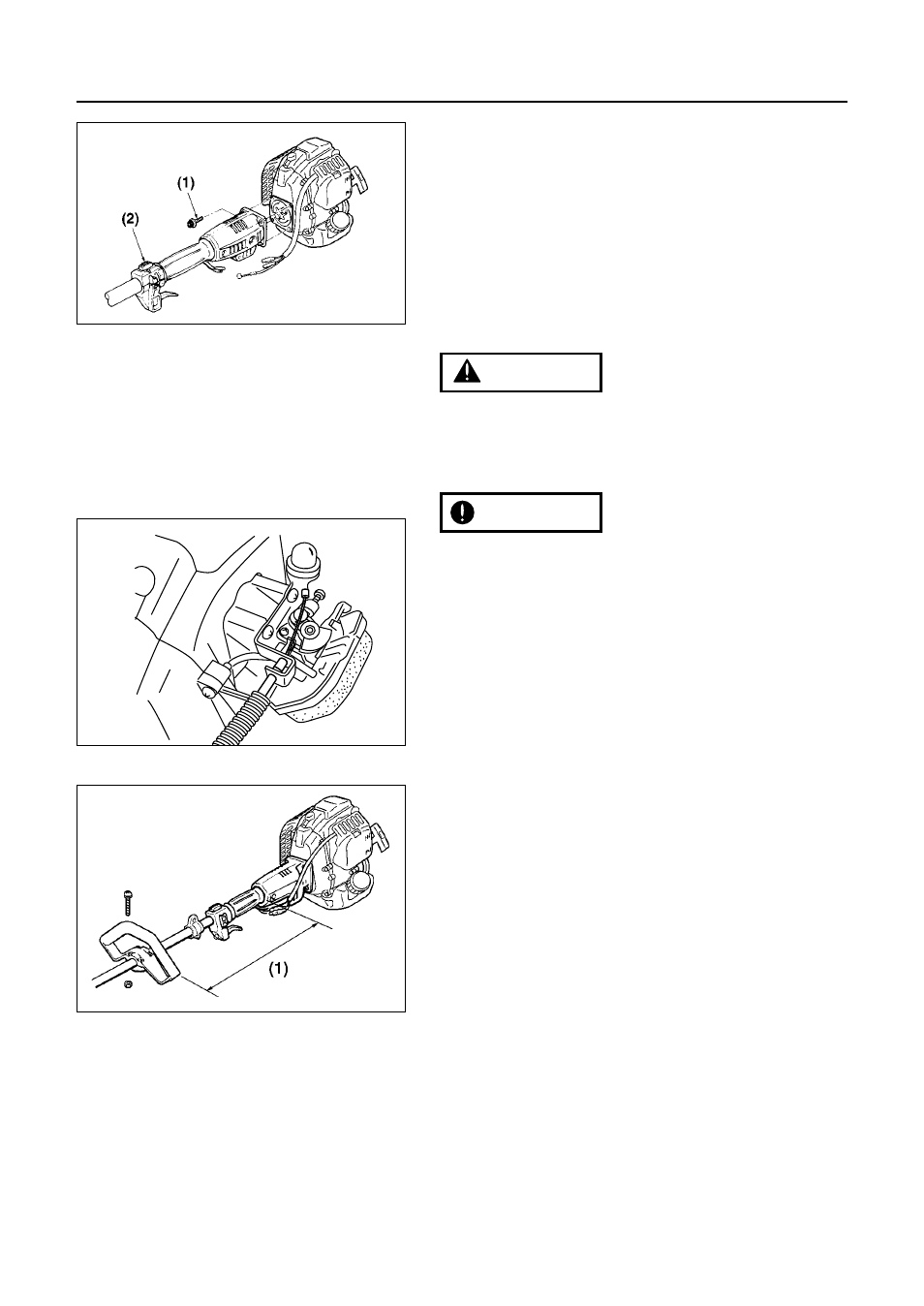

MOUNTING ENGINE (SE1)

1. Install the engine to the driveshaft so that the

cylinder head and the stop switch may come on
the same side.

2. Using attached four bolts, secure the connection

firmly with equal force (Torque: 25in-lbs)(Torque:
2.8 N.m.).

(1) Bolt
(2) Stop switch

Never use any screws other than those specified
by the manufacturer, or the engine can get loose,
resulting in a hazardous event.

Tighten the screws gradually by turns.

■

CONNECTING THROTTLE WIRE

1. Remove the air cleaner cover.
2. Connect the end of the throttle wire to the joint

on the top of the carburetor. (SE2)

■

CONNECTING SWITCH WIRES

• Connect the switch wires between the engine

and the main unit. Connect the wire to the same
color receiver on the main unit.

■

INSTALLING HANDLE

• Mount the handle to the shaft tube and clamp it

at a location that is comfortable to you. (SE3)

(1) About 19 inches (48cm)

IMPORTANT

WARNING

5. Set up

❲

❳

SE1

SE2

SE3
