1. Product Overview
RuggedCom® RuggedSwitch™
9
RS900G Installation Guide Rev 107
1.1. RS900G Front Panel

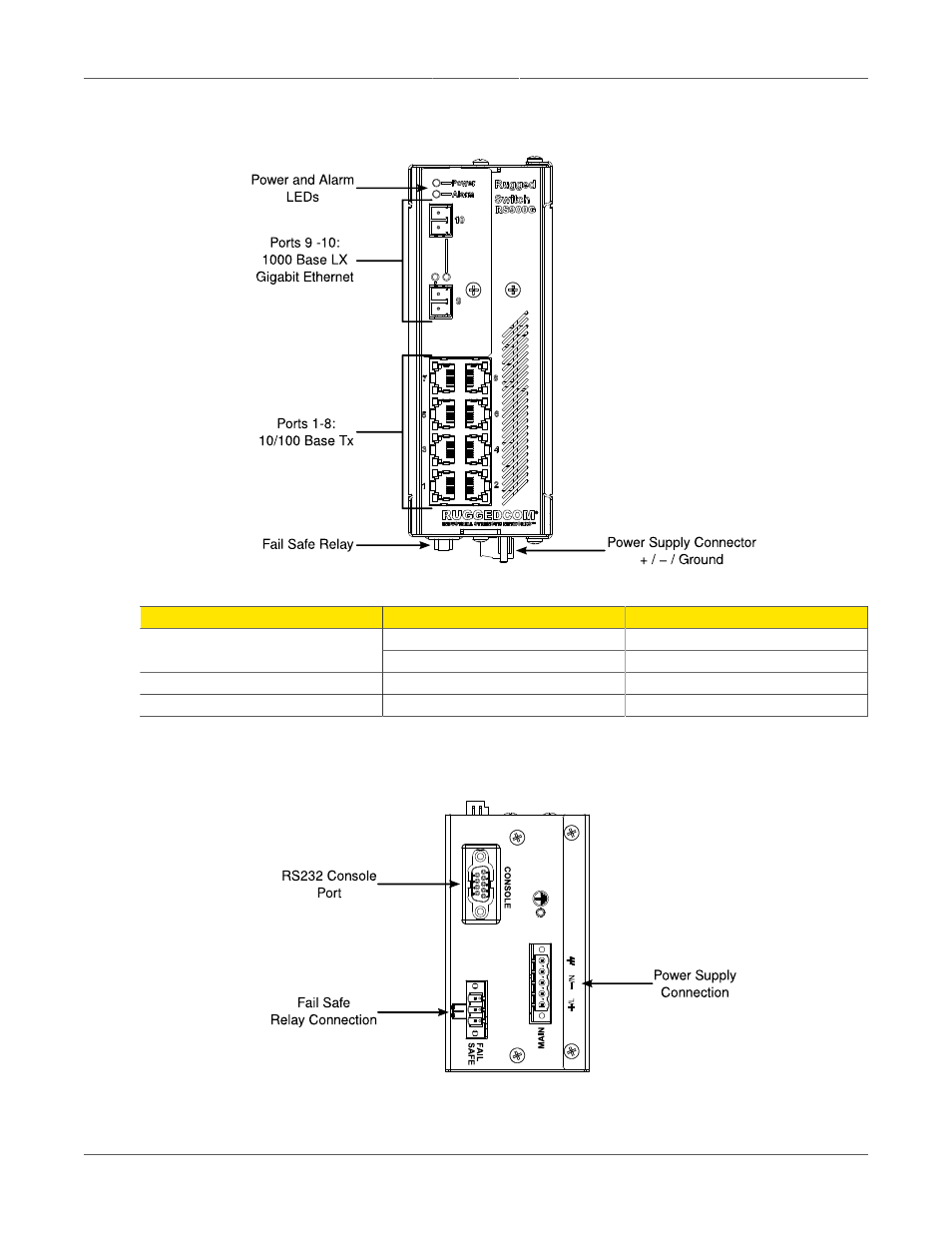

Figure 1.1. RS900G Front Panel
LED
Activity
Description
Solid
Link Established
LINK LED (Yellow)
Blinking
Tx/Rx Activity
Power LED
Solid
Power On
Alarm LED
Solid
Alarm condition exists
Table 1.1. RS900G Front Panel LED Definitions
1.2. RS900G Bottom Panel
Figure 1.2. RS900G Bottom Panel
