2. Installation
RuggedCom® RuggedSwitch™
14
RS900G Installation Guide Rev 107

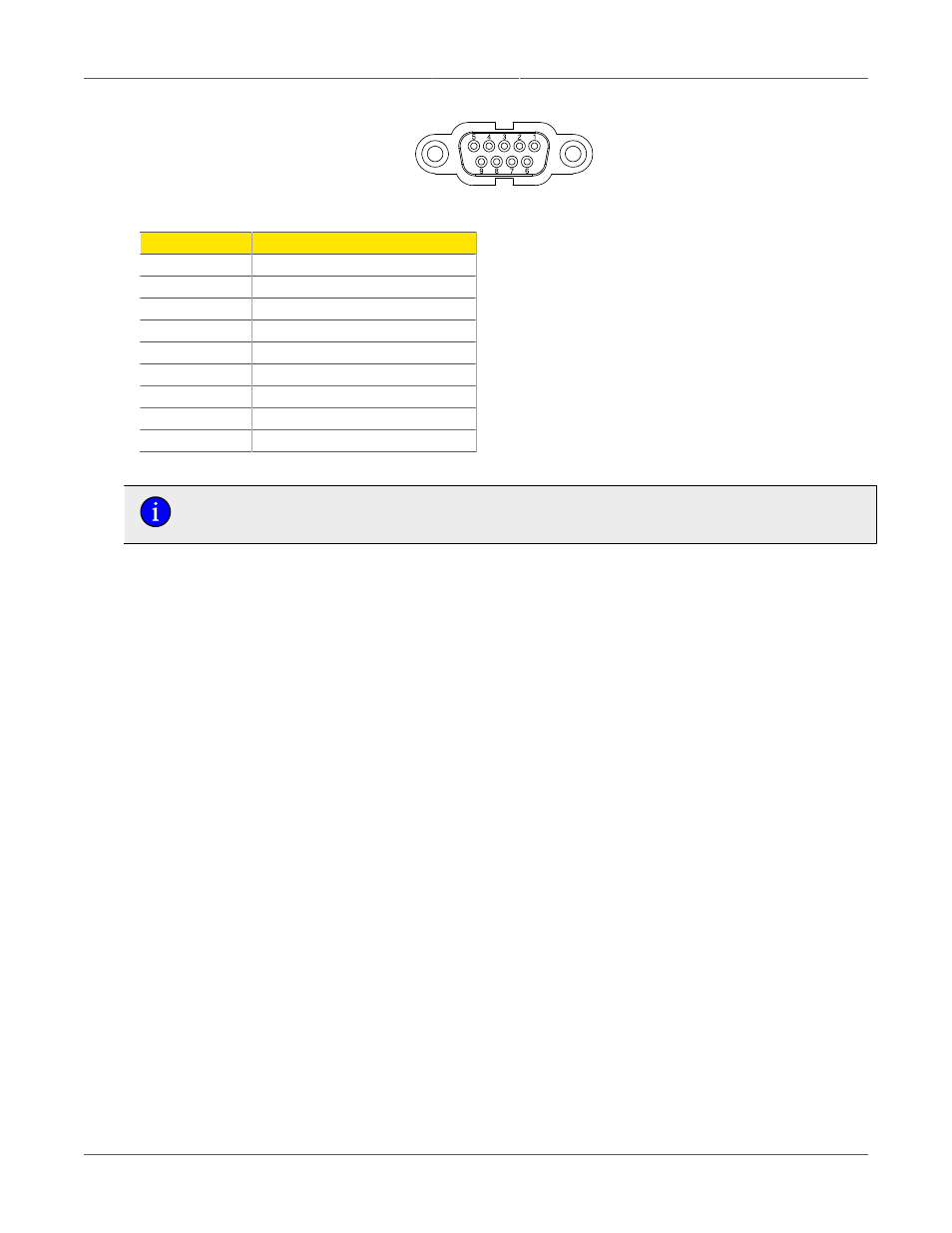

Figure 2.6. RS232 Female Connector
Pin
Signal
1
No Connection
2
Transmit Data
3
Receive Data
4
No Connection
5
Ground
6
No Connection
7
No Connection
8
No Connection
9
No Connection
Table 2.1. RS232 Female DCE Pinout
This port is not intended to be a permanent connection and the cable shall be less
than 2m (6.5 ft) in length.
