Regency CLASSIC C34-2 Direct Vent Freestanding Gas Heater 31

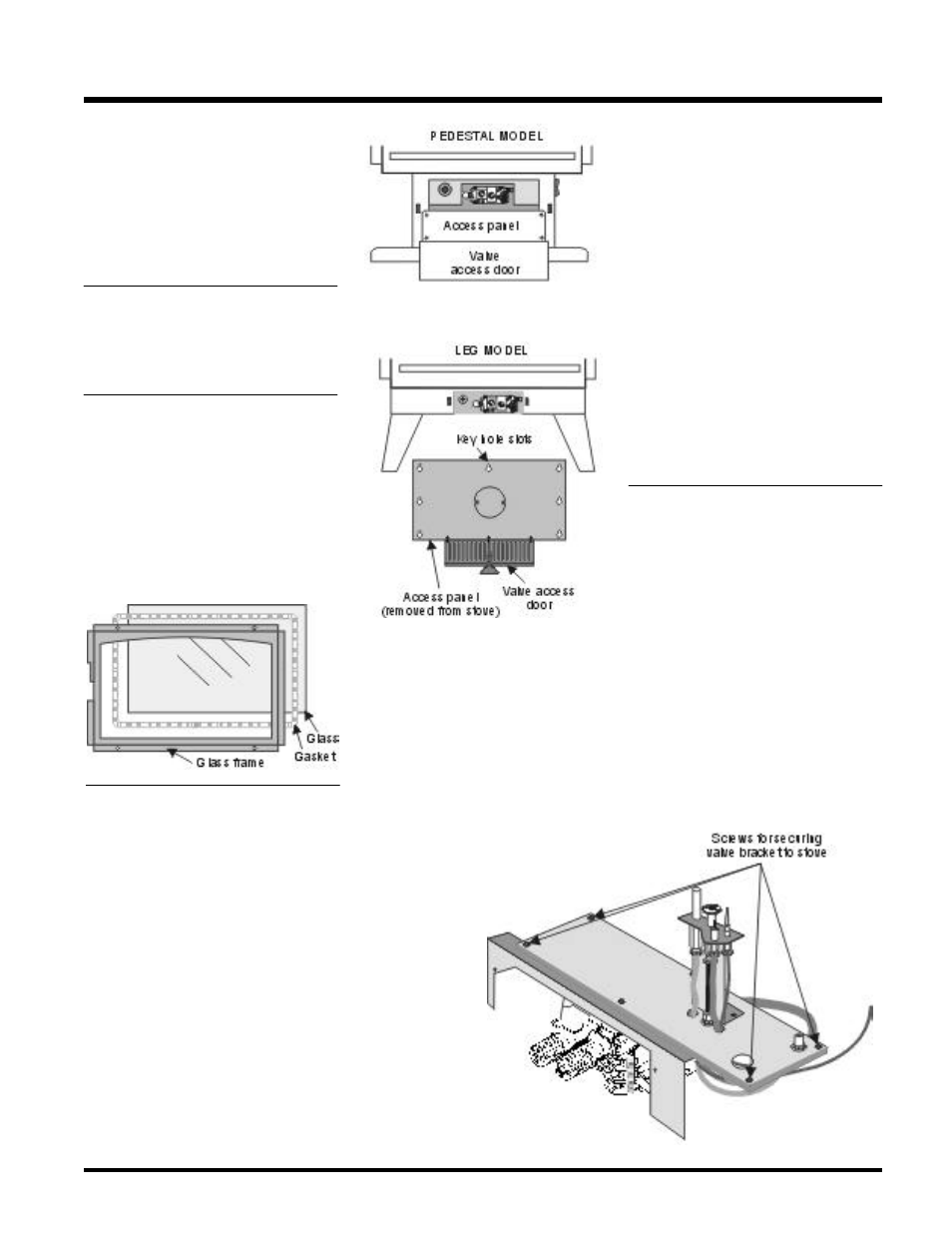

REMOVING VALVE
ASSEMBLY
1) Shut off gas supply.
2) If optional fan is installed, disconnect pow-
er source to stove.
3) Remove access panel.
a) Front panel on pedestal model. See
diagram 1.
b) Panel from bottom of leg shield. See
diagram 2.
Note: Access panel only has to be loos-
ened to be taken out.
4) Remove front cover with piezo igniter by
removing two (2) sheet metal screws.
5) Disconnect piezo wire.
Diagram 2
Diagram 1
6) Disconnect gas line to stove.
7) Disconnect 3/8" NPT pipe from 90 o elbow on
valve.
8) Disconnect the two (2) switch wires from
valve.
9) Remove orifice.
10) Loosen four (4) phillips head M5 valve
mounting screws from underside of fire-
box. Drop valve assembly down.
To remove valve from valve assembly,
continue.
11) Remove two (2) thermopile wires.
12) Remove thermocouple with a 9 mm (metric)
wrench.
13) Remove pilot nut with an 11 mm wrench.
14) Remove valve to orifice nut with a 13/16"
wrench.
15) Remove inlet pipe with pipe wrench. Note
orientation of 90 o elbow.
16) Remove two (2) phillips head M5 screws on
each side of the valve.
17) Remove valve and remove gas out 90 o
brass fitting. Note orientation of fitting.
See diagram on page 7 for more detail.
INSTALLING VALVE
ASSEMBLY
1) To install a new valve assembly, reverse
instructions for removing valve . See
assembly steps 1-10.
2) Check for leaks and manifold pressure. See
Gas Pressure Test instructions.
3) To reinstall valve, reverse instructions for
removing valve assembly, steps 11-17.
MAINTENANCE
GOLD-PLATED DOORS
The 24 carat gold plated finish on the door
requires little maintenance, and need only be
cleaned with a damp cloth. DO NOT use
abrasive materials or chemical cleaners, as
they may harm the finish and void the warranty.
Clean any fingerprints off before turning
the unit on.
GLASS GASKET
If the front glass requires replacement use a
front glass gasket (Part # 936-243).
GLASS
REPLACEMENT
Your CLASSIC stove is supplied with high
temperature, 5 mm Neoceram ceramic glass
that will withstand the highest heat that your
unit will produce. In the event that you break
your glass by impact, purchase your replace-
ment glass from an authorized Regency dealer
only, and follow our step-by-step instructions
for replacement.
