Installation – Regency C34-NG2 User Manual
Page 14
14
Regency CLASSIC C34-2 Direct Vent Freestanding Gas Heater

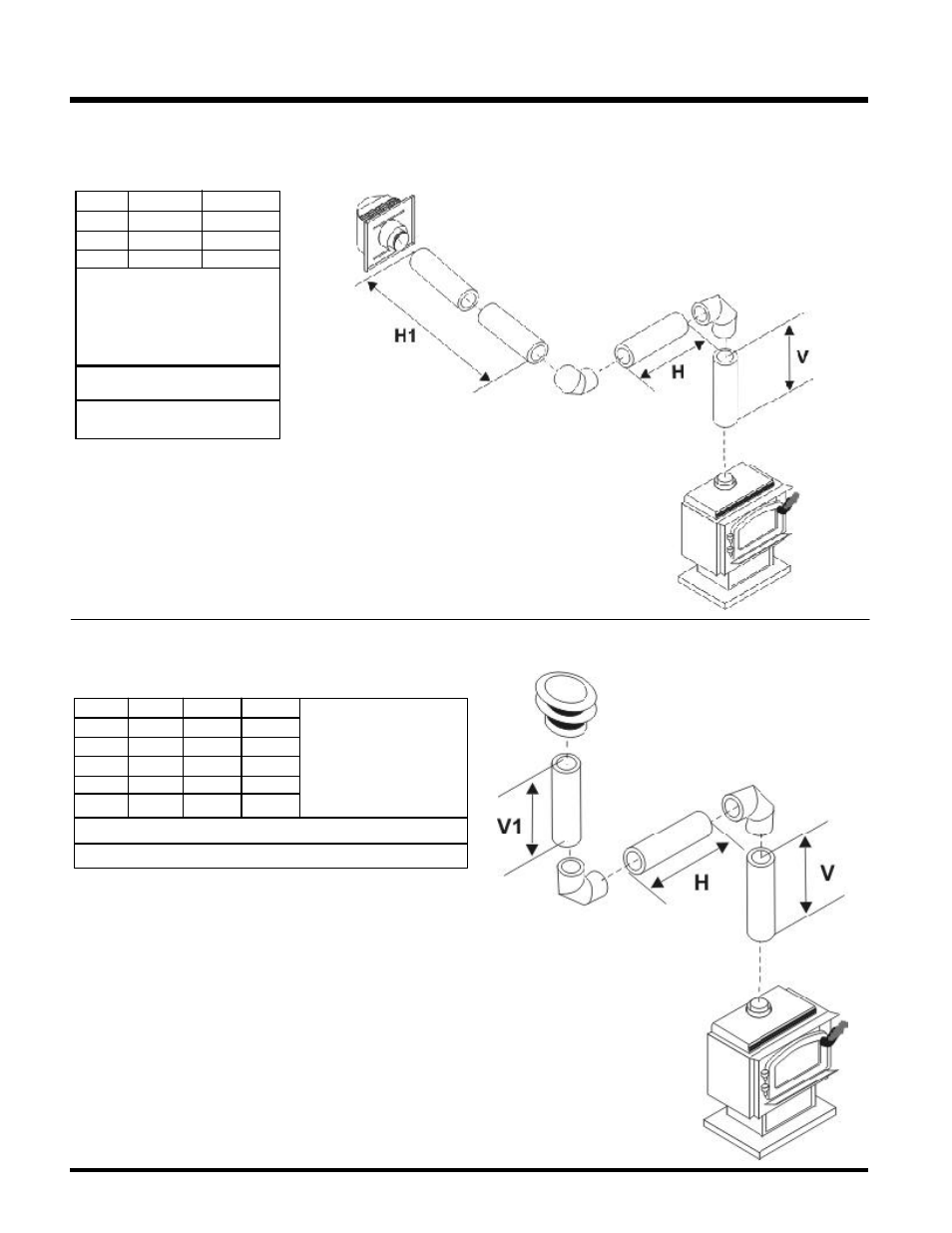

Horizontal Venting with Two (2) 90
o
Elbows
Option V
H + H1
A)
4' Min. 6' Max.
B)
5' Min. 7' Max.
C)
6' Min. 8' Max.
Vertical Venting with Two (2) 90
o
Elbows
Option V
H
V + V1
A)
1' Min.
4' Max.
2' Min.
B)
2' Min.
5' Max.
3' Min.
C)
3' Min.
6' Max.
4' Min.
D)
4' Min.
7' Max.
5' Min.
E)
5' Min.
8' Max.
6' Min.
With these options, max. total
pipe length is 30 feet with min.
of 6 feet total vertical and max.
8 feet total horizontal.
Please note min. 1 foot
between 90
o
elbows is re-
quired.
With these options, maximum total
pipe length is 30 feet with minimum
of 6 feet total vertical and maximum
8 feet total horizontal.
Please note minimum 1 foot
between 90
o
elbows is required.
INSTALLATION
One 90
o
elbow = Two 45
o
elbows.
One 90
o
elbow = Two 45
o
elbows.
Vent restrictor position C (fully
open), refer to page 9.
Vent restrictor position C (fully open), refer to page 9.
Lengths do not include elbow
indicated.
Lengths do not include elbow indicated.
