Installation
9

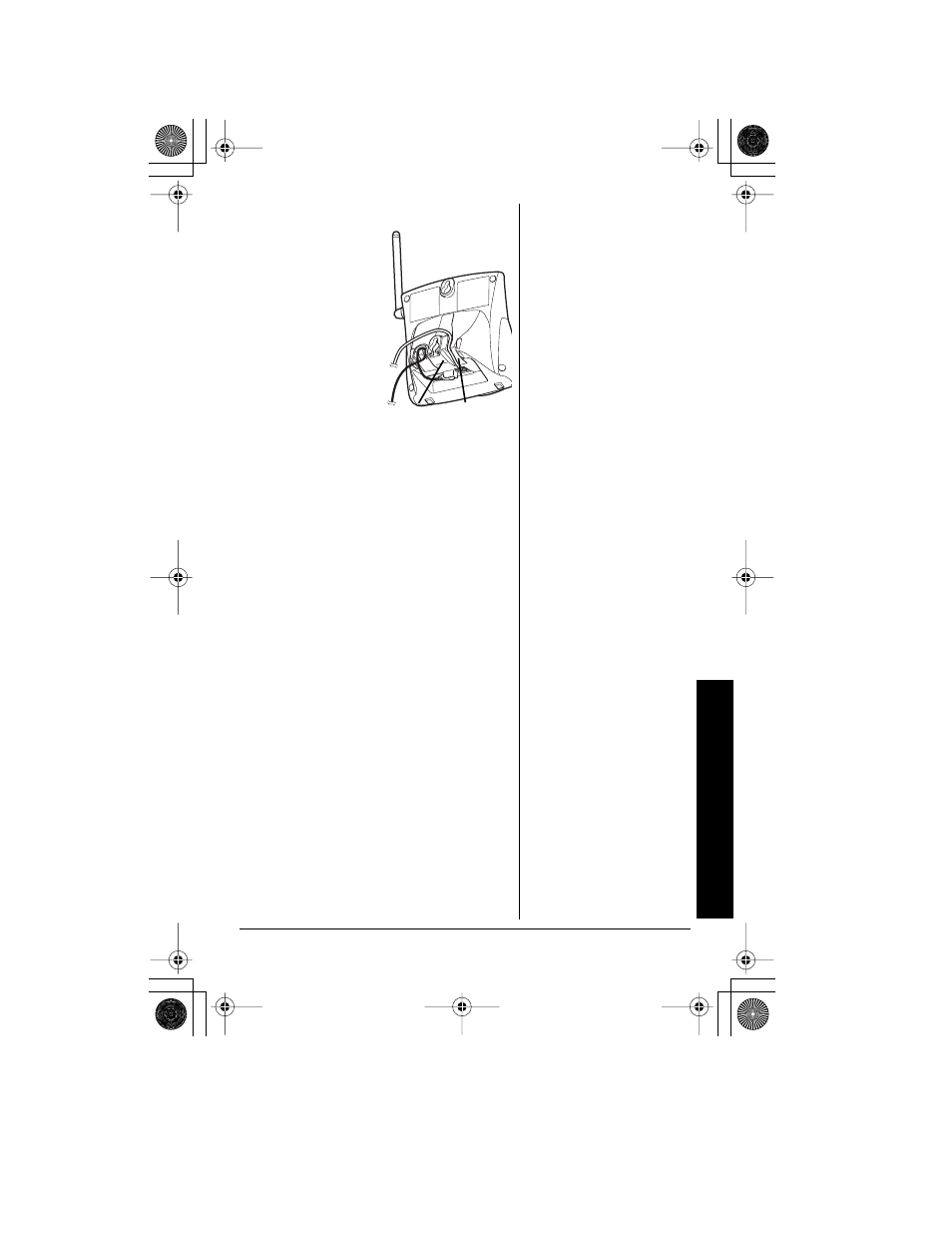

On a Desk Top
1. Plug one end of
the supplied long
modular cord into
the
TEL LINE jack
on the back of
the base.
2. Plug the modular
cord’s other end
into a modular
phone line jack.
3. Insert the
supplied AC
adapter’s barrel plug into the
DC IN 9V
jack on the back of the base.
4. Route the adapter’s cord through the
strain relief slot on the base, then plug
the adapter into a standard AC outlet.
5. Lift the base’s antenna to a vertical
position.
On a Wall Plate
1. Plug one end of the supplied short
modular cord into the TEL LINE jack on
the back of the base. Then insert the
supplied AC adapter’s barrel plug into
the
DC IN 9V jack on the back of the
base.
2. Route the adapter and modular cords
through the grooves on the bottom of
the base.
3. Plug the short modular cord into the
wall plate jack, then align the base’s
keyhole slots with the wall plate studs
and slide the base down to secure it.
TEL
LINE
DC IN 9V
