Connections & Setup
Chapter 1
Jacks Used Cables needed Go to...
Component video page 10
page 11 audio/Video
S-Video
pages 12-13 HDMI
Or
HDMI
Y Pb Pr
audio r and L
Video
audio r and L
HDMI 1 INPUT HDMI 2 INPUT
HDMI™
INPUT 1
COMPONENT/COMPOSITE
Y/VIDEO
P B
P R
L
R
INPUT 2
COMPOSITE
VIDEO
L
R S-VIDEO
HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
HDMI/DVI™
adapter
audio
audio

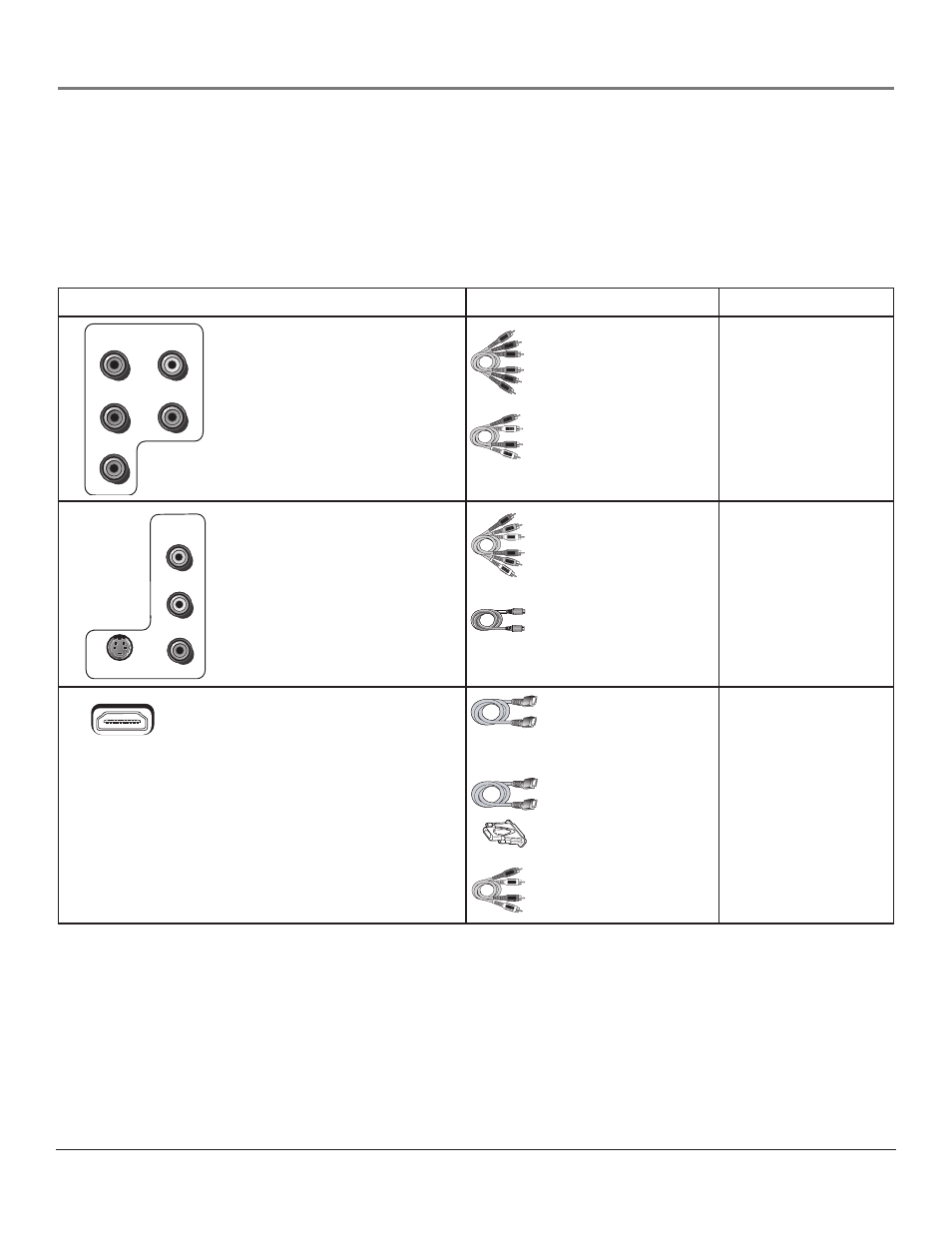

Choose Your Connection
There are several ways to connect your HDTV, depending on the components you want to connect and the quality of the
signal you want to achieve. The HDMI and component jacks are considered excellent; S-Video is very good; composite jacks
are good, while connecting components to the Antenna or Cable input is fair.
Please use the following chart to determine which connection is best for you. Proceed to the appropriate page and connect
your TV.
