Model

L676-NG1

L676-LP1

Fuel Type

Natural Gas

Propane

Minimum Supply Pressure

5” W.C. (1.25 kPa)

12” W.C. (2.98 kPa)

Manifold Pressure - High

3.5” W.C. (0.87 kPa)

10” W.C. (2.49 kPa)

Manifold Pressure - Low

1.6” W.C. (0.40 kPa)

6.4” W.C. (1.59 kPa)

Orifi ce Size

#33 DMS

#51 DMS

Minimum Input
Altitude 0-4500 ft. (0-1372m)

22,000 BTU/h

(6.45 kW)

25,000 BTU/h

(7.33 kW)

Maximum Input
Altitude 0-4500 ft. (0-1372m)

33,000 BTU/h

(9.67 kW)

31,500 BTU/h

(9.23 kW)

Vent Sizing

5” Inner / 8” Outer

5” Inner / 8” Outer

L676-1 Gas Fireplace

Approved Venting Systems

Flex Vent Systems:

FPI AstroCap™ Flex Vent

Rigid Pipe Vent Systems:

Simpson Direct Vent Pro®
Selkirk Direct-Temp™
Metal-Fab® Sure Seal

Regency Liberty L676 Gas Fireplace

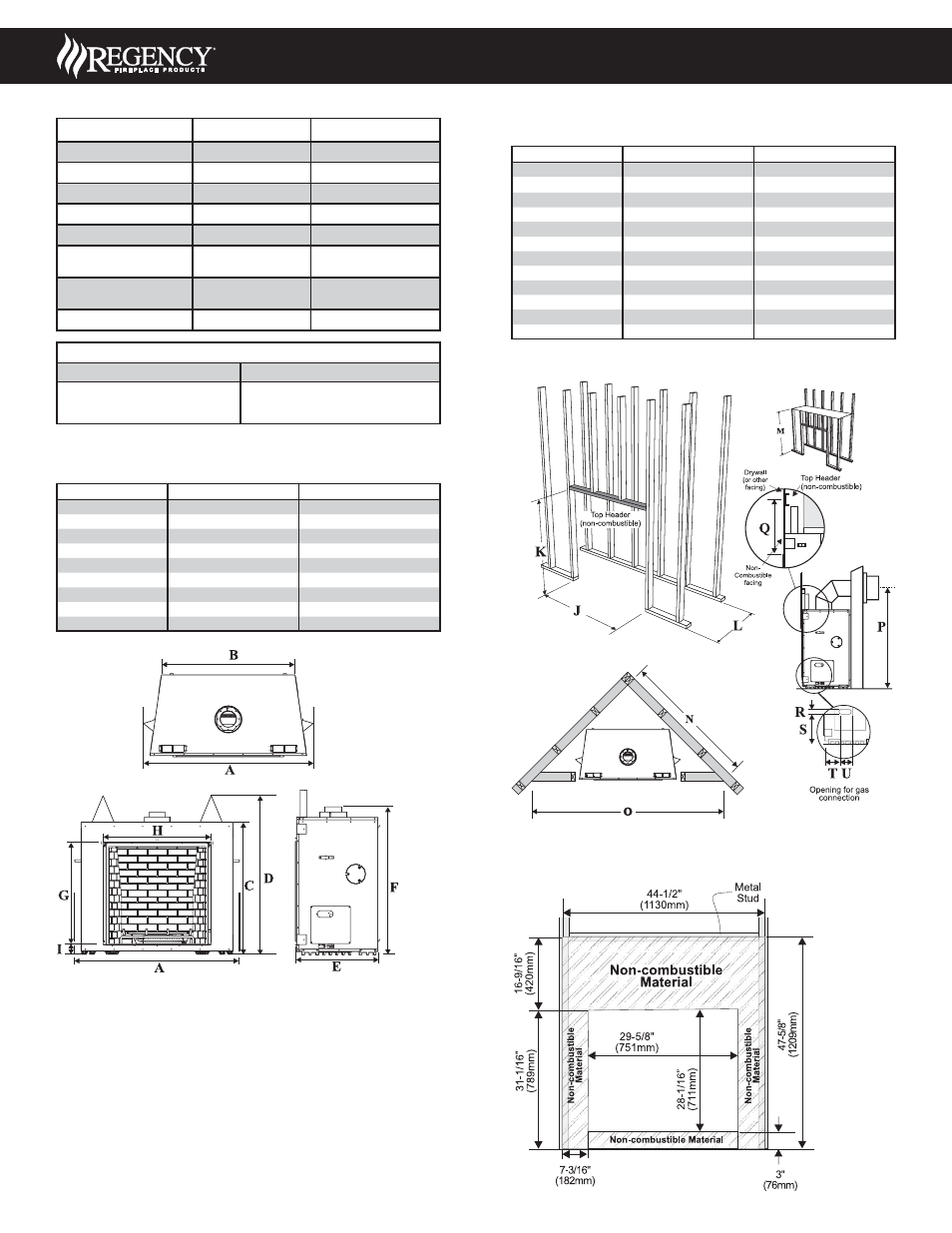

Unit Dimensions

Description

L676-1

A

Firebox Width w/ Standoff

42-1/2” (1080mm)

B

Rear Firebox Width

33-1/8” (841mm)

C

Firebox Height

37-3/8” (949mm)

D

Height w/ Standoff

45-5/8” (1159mm)

E

Unit Depth

24-1/2” (622mm)

F

Height to Vent

40-3/8” (1026mm)

G

Fireplace Opening Height

28-1/16” (713mm)

H

Fireplace Opening Width

29-5/8” (751mm)

I

Height to Fireplace Opening

2” (51mm)

Unit Dimensions:

Framing Dimensions

Description

L676-1

J

Framing Width

43” (1092mm)

K

***

Framing Height

***

45-7/8” (1165mm)

***

+ Hearth

L

Framing Depth

25-3/4” (654mm)

M

Minimum Height to Combustibles

56-1/4” (1429mm)

N

Corner Wall Length

57-3/16” (1453mm)

O

Corner Facing Wall Width

80-13/16” (2052mm)

P

Vent Centerline Height

49-1/4” (1251mm)

Q

Non-combustible Facing Height

16-9/16 (421mm)

R

Gas Connection Opening Height

2” (51mm)

S

Gas Connection Height

11-1/4” (286mm)

T

Gas Connection Inset

5-3/4” (146mm)

U

Gas Connection Opening Width

5” (127mm)

***

Important: Framing height requires consideration of the hearth

depth. Dimension K = K + the thickness of installed hearth.

Framing Dimensions:

Non-Combustible Requirements:

WARNING

Failure to maintain required clearances is a major cause of chimney related fi res.
Installation of this fi replace must comply with these clearances
Please note:
Due to ongoing product development, product appearance and specifi cations
are subject to change without notice.

This manual is intended to be a Sales Reference Guide only.
Do NOT use for actual framing and installation of any unit.
Some specifi cations may change without notice.
You must use the actual manual for exact installation specifi cations.
