Pipe and Bolt Threading Machine
1233
1
2
3
4
5

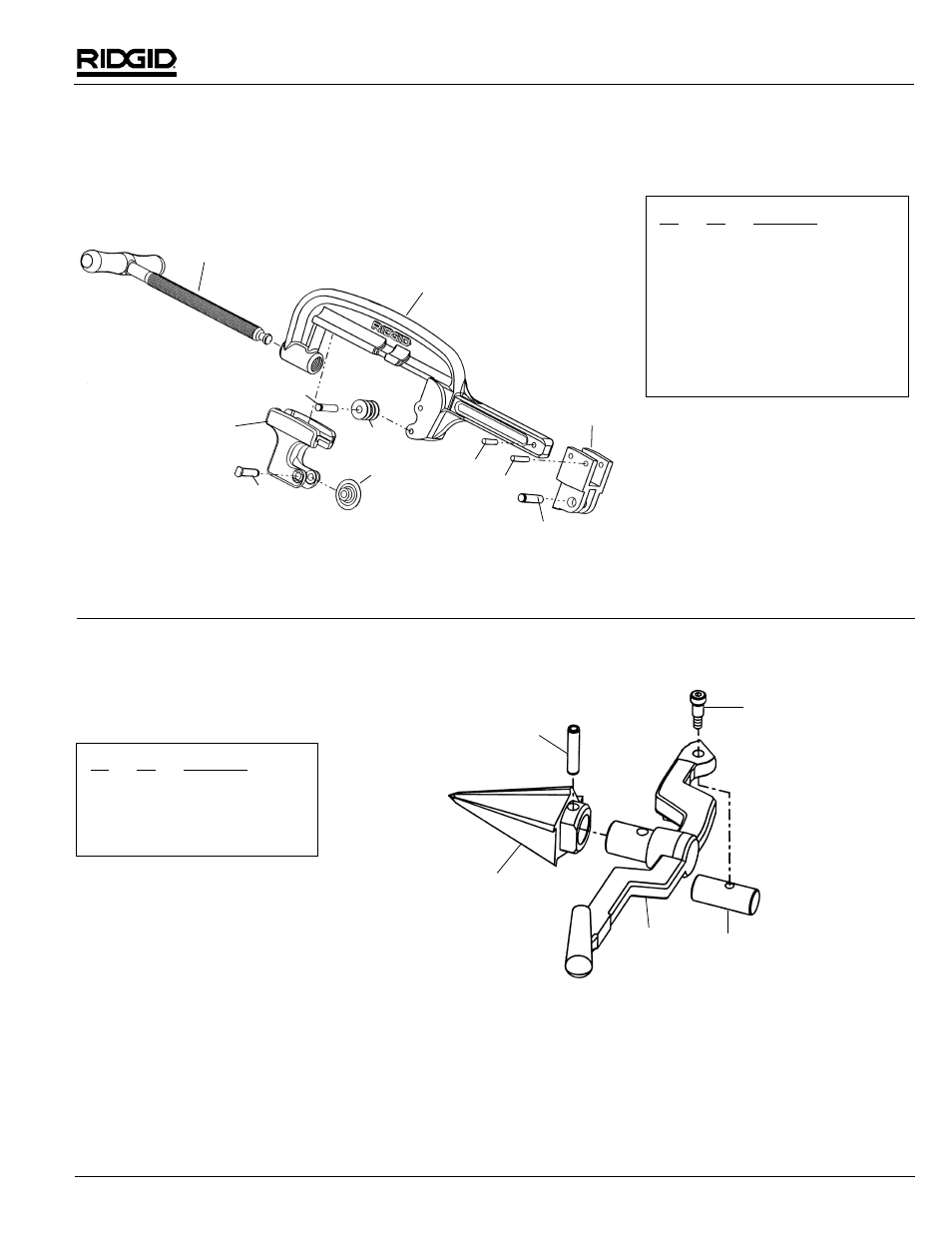

No. 743 Reamer
Ref. Catalog
No. No. Description
— 52272 743 Reamer Complete
1 36262 Shoulder Screw
2 36267 Pivot Pin
3 36272 Reamer Arm
4 52277 Reamer Cone
5 35355 Split Roll Pin
No. 763 Pipe Cutter
1
2
3
4
6
7
8
9
10
5
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
Ref. Catalog
No. No. Description
— 52452 763 Cutter Complete
1 54197 Feed Screw Handle
2 61872 Cutter Frame
3 58090 1 / 4 ″ x 1 ″ Roll Pin
4 61877 Bracket
5 54300 Roll Pin
6 44185 E1032 Cutter Wheel
7 34780 Pin & Clip
8 52247 Wheel Housing
9 46960 Rolls f/Steel Pipe (2)
— 43682 Rolls f/Coated Pipe (2)
10 46662 Roll Pin (2)
11 45520 Hinge Pin
11
