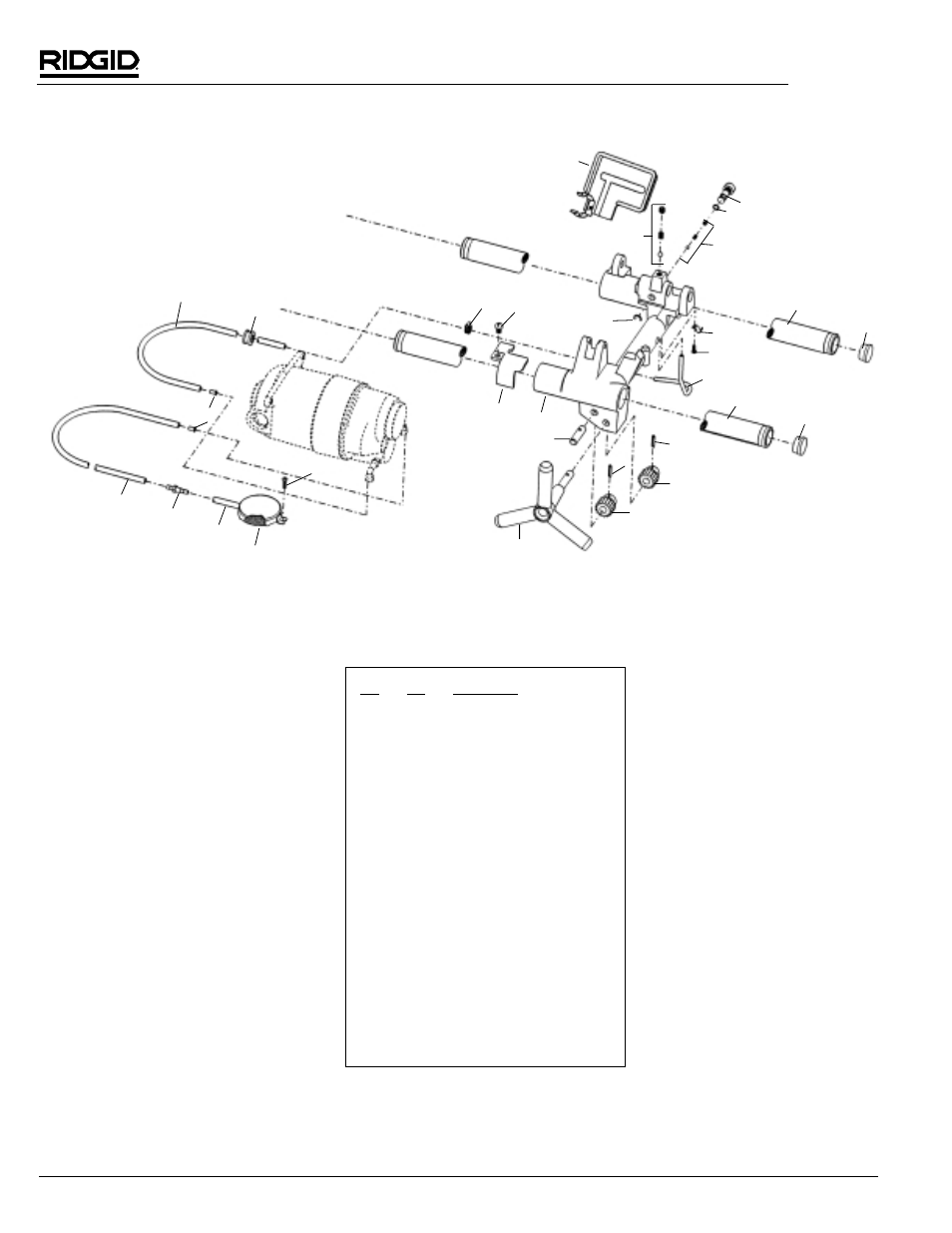

Ridge Tool Company/Elyria, Ohio, U.S.A.
2
Pipe and Bolt Threading Machine
1233
1
2
3
4
5
6
7
7
8
9
10
11
12
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
Ref.
Catalog
No.
No.
Description
1
46810
Detente Assembly
2
54097
Spool Valve
3
54102
O-Ring
4
35307
Oil Pressure Relief Set
5
54107
Crescent Ring
6
54112
Rear Rail
7
35162
Rail Plug (4)
8
35062
Oil Line Clamp
9
79965
10-32 x
1
/
2
″
Screw
10
35067
Oil Tube
11
54117
Front Rail
12
34342
Roll Pin
13
57097
Pinion
14
35182
Hand Wheel
15
35187
Pinion Idler Shaft
54122
Cap Plug (not shown)
16
54127
Carriage
17
54132
Carriage Stop
18
54137
5
/
16
″
- 18 x
1
/
2
″
Screw
19
35142
Hose Clamp
20
61282
Carriage Oil Line
21
47080
Oil Line Grommet
22
35117
Oil Line Insert
23
54152
Oil Intake Line
24
54142
Bulkhead Fitting
25
61897
Oil Filter Tube
26
58467
Filter Screen Assembly
27
45420
10-24 x
3
/
8
″
Screw
28
54517
Drip Pan
28
Carriage and Oil System
