3-42 Chapter 3: Hardware Service

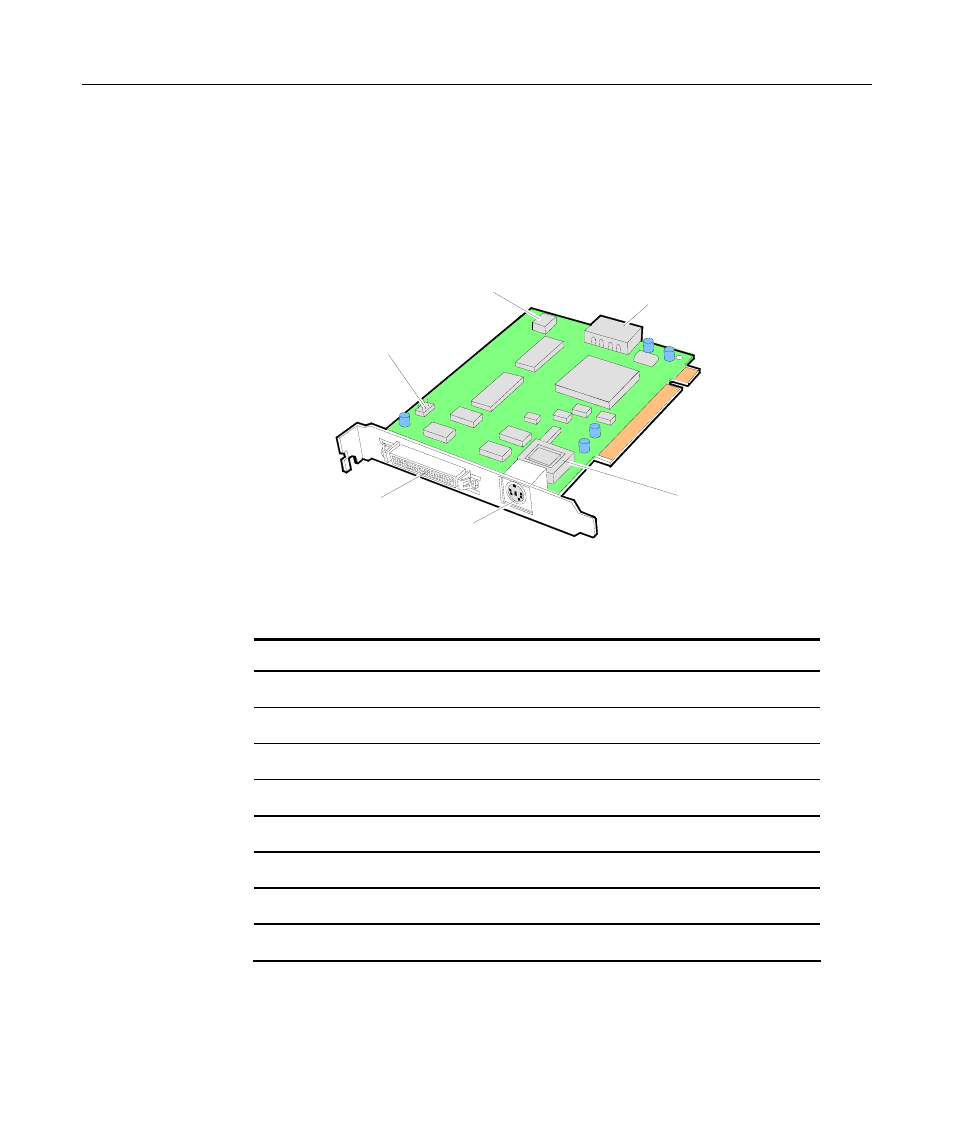

PCI LCD Board (5952-K052)
This PCI LCD Board provides a PCI bus interface for the 5952 10.4-Inch
DynaKey.
15376
Keyboard Header Connector
(for optional internal harness)
Panel Select Switch
(SW1)
Power Harness Connector
VGA BIOS
PS/2 Keyboard Connector
(Keyboard Adapter Cable)
LCD Connector
Setting the Panel Select Switch (SW1)
P1 P2 P3 Function
OFF OFF OFF Panel 8 (Color DSTN) (Passive)
OFF OFF ON Panel 7 (Mono STN)
OFF ON OFF Panel 6 (Color TFT) (Active)
OFF ON ON Panel 5 (Unused)
ON OFF OFF Panel 4 (5" Mono)
ON OFF ON Panel 3 (Unused)
ON ON OFF Panel 2 (Unused)
ON ON ON Panel 1 (Unused)
