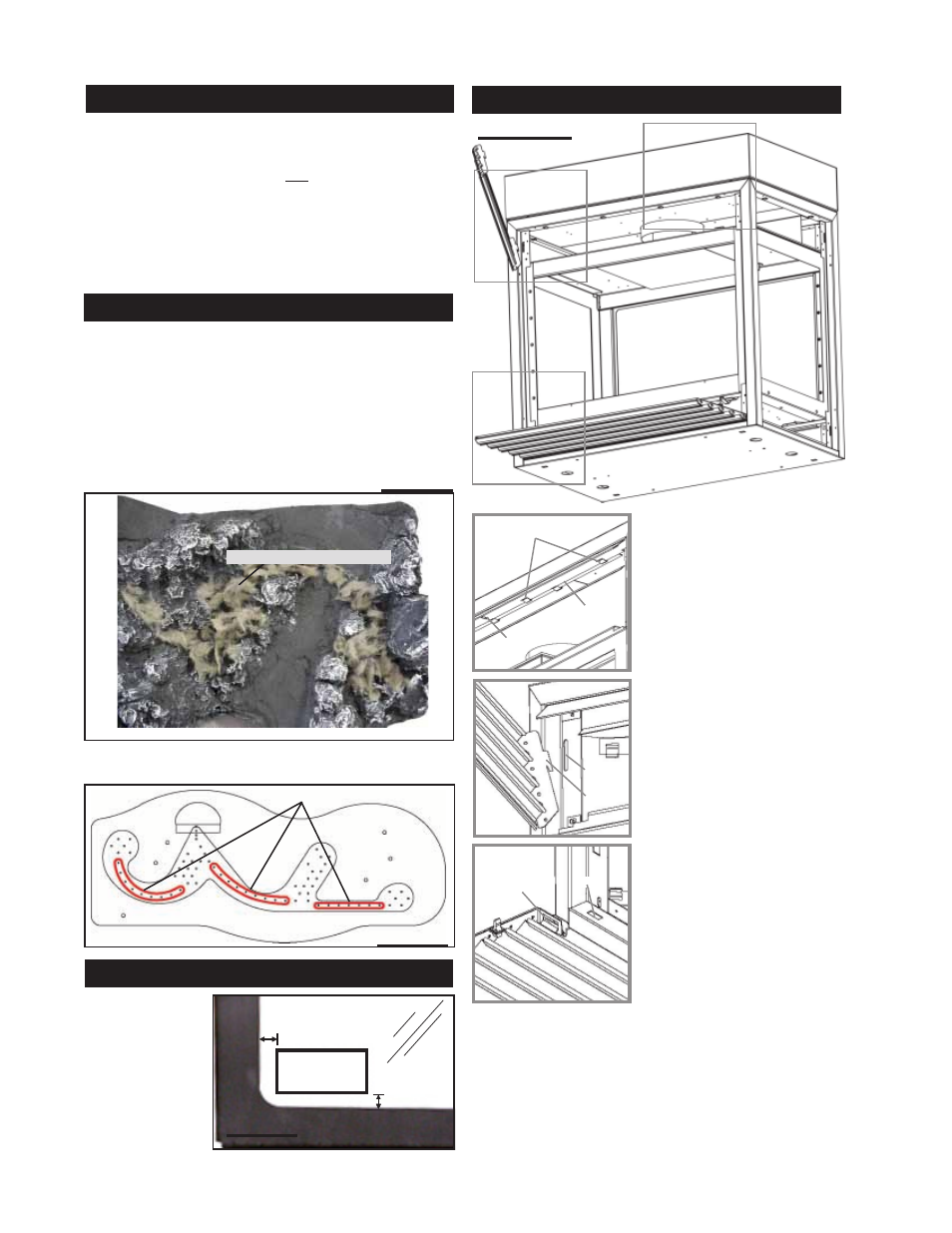

L36 LOUVRE INSTALLATION
FIGURE 36 a-c
HOOD
Attach the hood by pressing the
top flange into the clips along
the top of the louvre opening.
Secure using a screw through
the centre slot.
LOWER LOUVRES
Insert the hinge clips into the
slots located at the bottom left
and right corners of the unit.
To remove the louvres, pull the
back tabs of the clips forward,
while pushing the louvre assem-
bly back. Lift the clip.
UPPER LOUVRES
Insert the louvre tabs into the
slots located at the top left and
right corners of the unit.
A
CLIPS
C E N T R E
S L O T
FLANGE
C
HINGE
CLIP
S L O T
A
B
C
For proper ignition, it is very important to that glowing For proper ignition, it is very important to that glowing For proper ignition, it is very important to that glowing For proper ignition, it is very important to that glowing For proper ignition, it is very important to that glowing
ember
ember ember ember embers ar s ar s ar s ar s are in place e in place e in place e in place e in place..... Tear the embers into small pieces
and place on the ported area of the burner. Care should be
taken to shred the embers into thin, small irregular pieces
as only the exposed edges of the fibre hairs will glow. The
ember material will only glow when exposed to direct flame;
however, care should be taken to not block the burner
ports. Blocked burner ports can cause an incorrect flame
pattern, carbon deposits and delayed ignition. PHAZER
TM
logs glow when exposed to direct flame.
Randomly place the embers around the bottom brick pan-
els in a realistic manner but not in contact with the flames.
Keep ember dust away from burner ports to avoid plugging
them.
Fine dust found in bottom of bag not to be used. PHAZER TM
logs, and embers glow when exposed to direct flame. Use
only certified PHAZER
TM logs, glowing embers and char-
coal embers available from your Napoleon / Wolf Steel Ltd.
dealer.
GLOWING EMBERS
FIGURE 28
Remove the
backing of the
logo supplied and
place on the glass
viewing door, as
indicated.
LOGO PLACEMENT
GLOWING EMBERS
CHARCOAL EMBERS
LOGO
½"
½"
FIGURE 30
Ensure that glowing embers sufficiently cover the carry over
ports, highlighted below, to achieve maximum glow.
CARRY OVER PORTS
FIGURE 29
