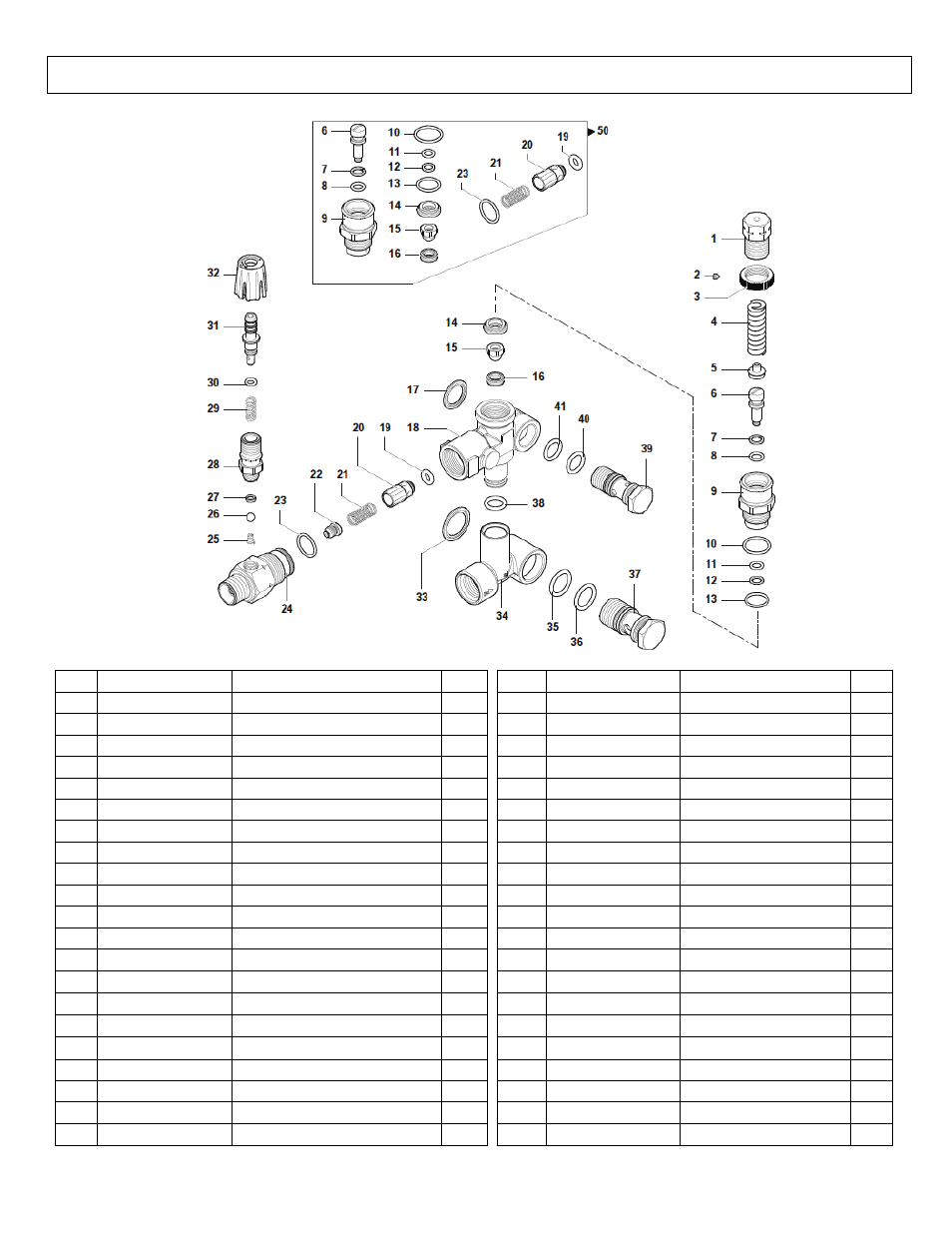

NSSHFD5030 Pump Exploded View
44
Ref #
Part #
Description
Qty Ref #
Part #
Description
Qty
1
Not Available
Bushing
1
22
CO3410036600 Injector Body 2.3
1
2
CO3622003000 Stop Adjustable Nut
1
23
Not Available
O-Ring
1
3
CO1227002200 Ring Nut
1
24
Not Available
Coupling
1
4
Not Available
Spring
1
25
CO1802018000 Spring
1
5
CO0009020700 Spring Spacer
1
26
CO3003002600 Ball
1
6
CO2409008800 Piston Rod
1
27
CO2812006700 Washer
1
7
Not Available
Anti-Extr. Ring
1
28
CO2803064600 Coupling
1
8
Not Available
O-Ring
1
29
CO1802034400 Spring
1
9
Not Available
Bushing
1
30
CO1210056400 O-Ring
1
10
CO1210061500 O-Ring
1
31
CO2803064500 Detergent Coupling
1
11
Not Available
O-Ring
1
32
CO1817009500 Knob
1
12
Not Available
Anti-Extr. Ring
1
33
Not Available
Gasket
1
13
Not Available
O-Ring
1
34
Not Available
Lower Body
1
14
Not Available
Gasket
1
35
CO1210041000 O-Ring
1
15
CO3002065400 Unloader Ball
1
36
CO1210041000 O-Ring
1
16
CO3009001300 Seat
1
37
CO2803063400 Coupling
1
17
Not Available
Gasket
1
38
Not Available
O-Ring
1
18
Not Available
Upper Body
1
39
CO2803063500 Coupling
1
19
CO1210057000 O-Ring
1
40
CO1210041100 O-Ring
1
20
Not Available
Check Valve
1
41
CO1210041100 O-Ring
1
21
Not Available
Spring
1
50
CO5015004900 Valve Repair Kit
1
