Page 16

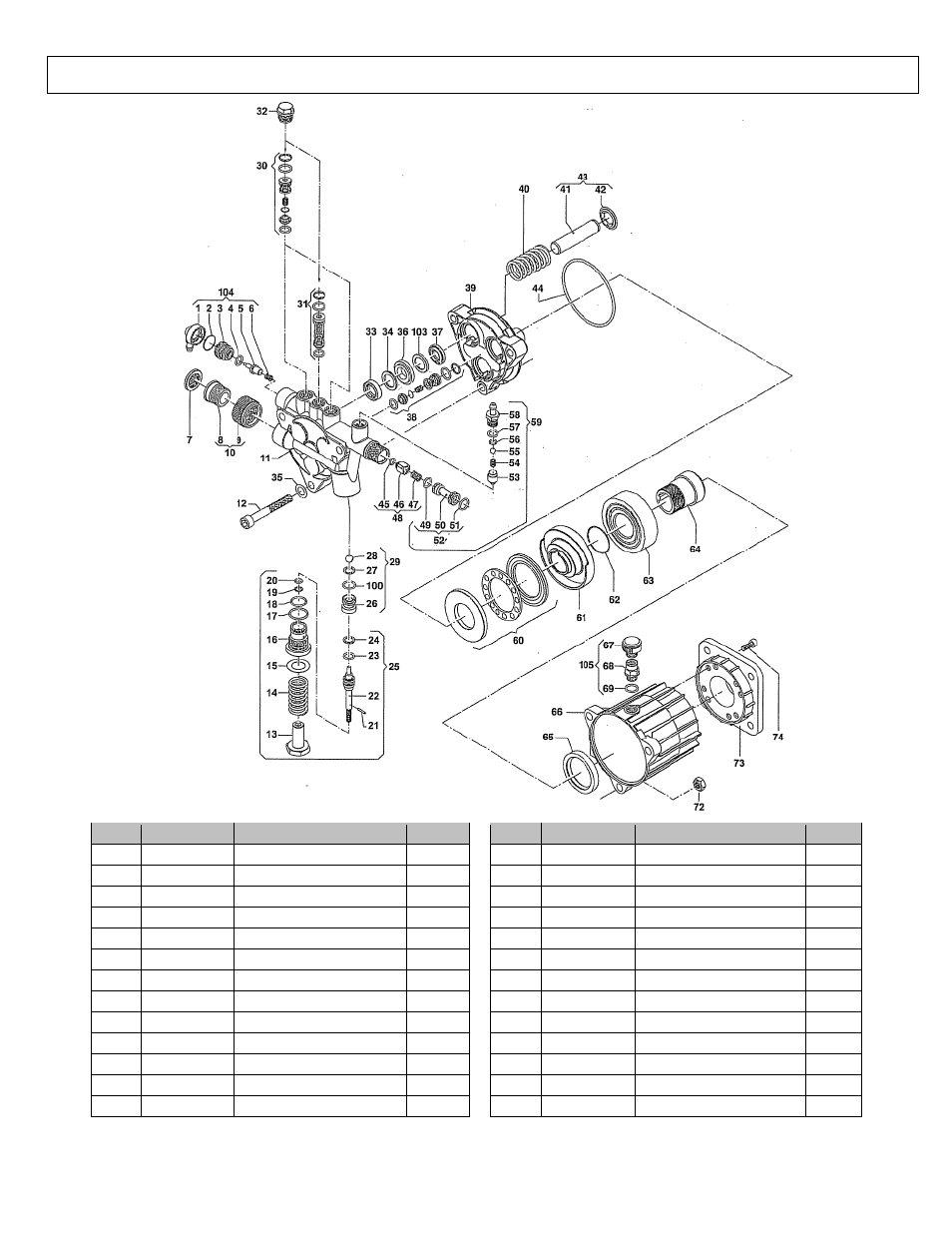

Comet VRX Pump Exploded View
16
Ref #
Code
Description
Qty
Ref #
Code
Description
Qty
1
2801 0079 Thermo Valve Cover
1
39
2432 0018 Pump Crankcase
1
2
1210 0218 O-Ring
1
40
1802 0213 Piston Spring
3
3
0424 0402 Thermal Valve Body
1
41
2409 0099 Piston
3
4
1210 0475 O-Ring
1
42
0009 0267 Ring
3
5
3230 0031 Sensor
1
43
5026 0260 Piston Kit
3
6
1802 0217 Spring
1
44
1210 0391 O-Ring
1
7
1002 0116 Suction Filter
1
45
1210 0463 O-Ring
1
8
2803 0395 Quick Coupler
1
46
2409 0102 Check Valve
1
9
1223 0093 Wing Nut
1
47
1802 0218 Spring
1
10
2800 0096 Straight Hose Tail Kit
3
48
5026 0262 Check Valve Kit
1
11
3218 0351 Pump Manifold
1
49
1210 0465 O-Ring
1
12
3609 0195 Screw
3
50
0801 0066 Detergent Injector
1
13
3202 0276 Plug
1
51
1210 0170 O-Ring
1
