ME103 Wireless Access Point Front Panel
The ME103 Access Point provides three status LEDs.

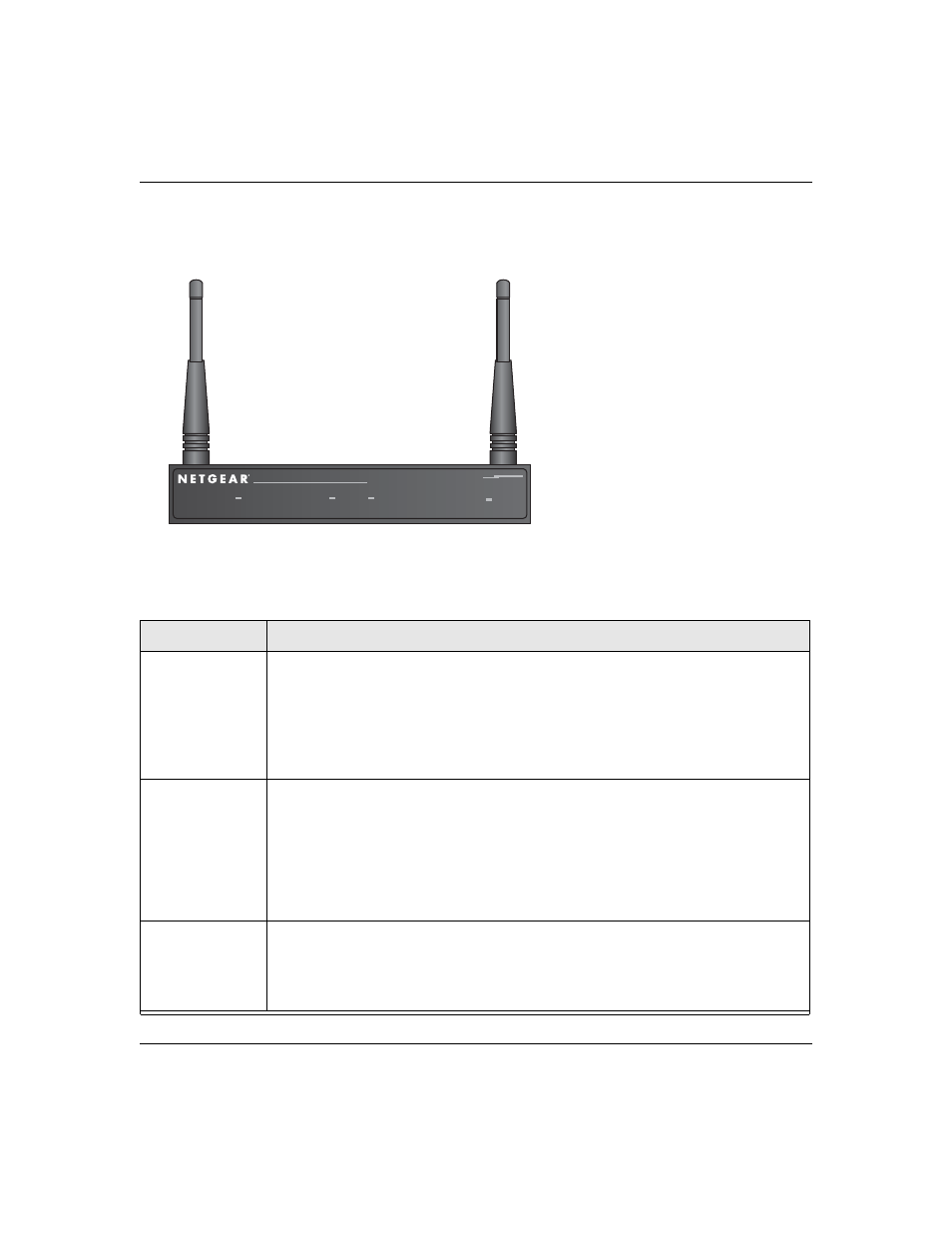

Figure 2-1: ME103 front panel
The following table explains the LED indicators:
LED DESCRIPTION
Power
Off
On
Power Indicator
No power. If this LED does not come on with the power adapter and cord correctly
installed, see Chapter 4,
Troubleshooting .
Power is on.
Blink Indicates self test, loading software, or system fault (if continues).
Note: This LED may blink for a minute before going on steady.
LAN Ethernet LAN Link Activity Indicator
Off
Green On
Indicates no Ethernet link detected.
100 Mbps Fast Ethernet link detected, no activity.
Green Blink Indicates data traffic on the 100Mbps Ethernet LAN.
Amber 0n 10 Mbps Ethernet link detected, no activity.
Amber Blink Indicates data traffic on the 10Mbps Ethernet LAN.
Wireless LAN Wireless LAN Link Activity Indicator
Off
Green On
Indicates no Ethernet link detected.
Wireless link enabled, no activity.
Green Blink Wireless link activity.
PWR LAN
802.11b ProSafe Wireless Access Point
MODEL ME103
Wireless LAN
