CHAPTER 2 NAMES AND FUNCTIONS OF COMPONENTS
User’s Manual U15776EJ1V0UM
26
2.5
Address Output Setting of Separate Bus
When using the separate bus function while debugging using the IE-703089-MC-EM1, switching to the separate
bus output function is not possible by setting the memory address output register (MAM) by software.
Use DIP switch SW5 to output the address of the separate bus function while debugging using the IE-703089-MC-
EM1.
The switches of SW5 and their corresponding ports are shown in Table 2-5.

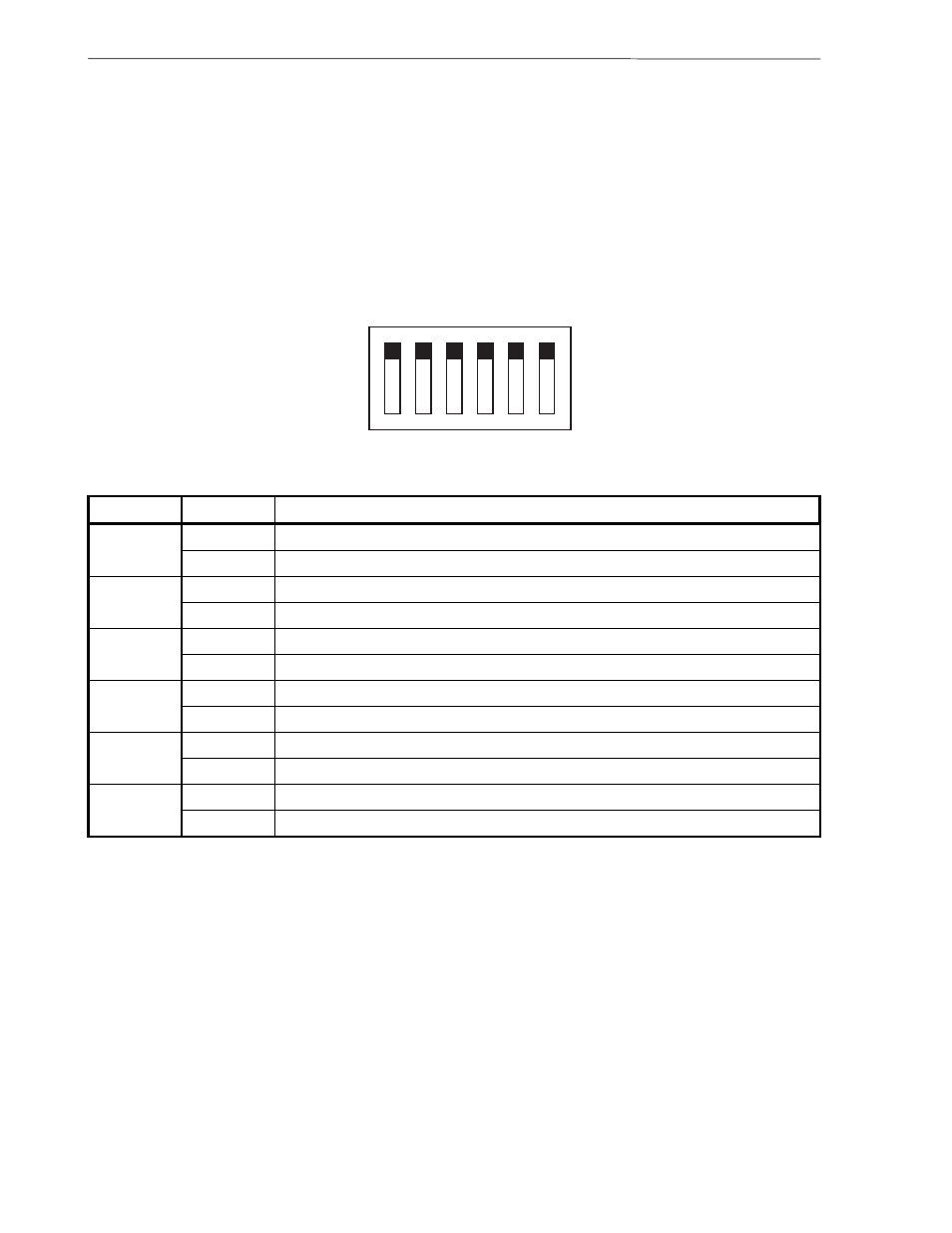

Figure 2-2. SW5
1
6
3
4
2
5
ON
OFF
Table 2-5. SW5 Setting
Switch
Setting
Selection of Alternate-Function Pin
ON
P113 to P110 (port mode)
1
OFF
A4 to A1 output to P113 to P110 (memory address output function of separate bus)
ON
P103 to P100 (port mode)
2
OFF
A8 to A5 output to P103 to P100 (memory address output function of separate bus)
ON
P107 to P104 (port mode)
3
OFF
A12 to A9 output to P107 to P104 (memory address output function of separate bus)
ON
P34 (port mode)
4
OFF
A13 output to P34 (memory address output function of separate bus)
ON
P35 (port mode)
5
OFF
A14 output to P35 (memory address output function of separate bus)
ON
P33 (port mode)
6
OFF
A15 output to P33 (memory address output function of separate bus)
