2.3 Illegal Access Detection ROM Setting
If using the IE-703002-MC for an in-circuit emulator for the V850/SCx by connecting the IE-703089-MC-EM1, set
JP1 of the IE-703002-MC as follows.

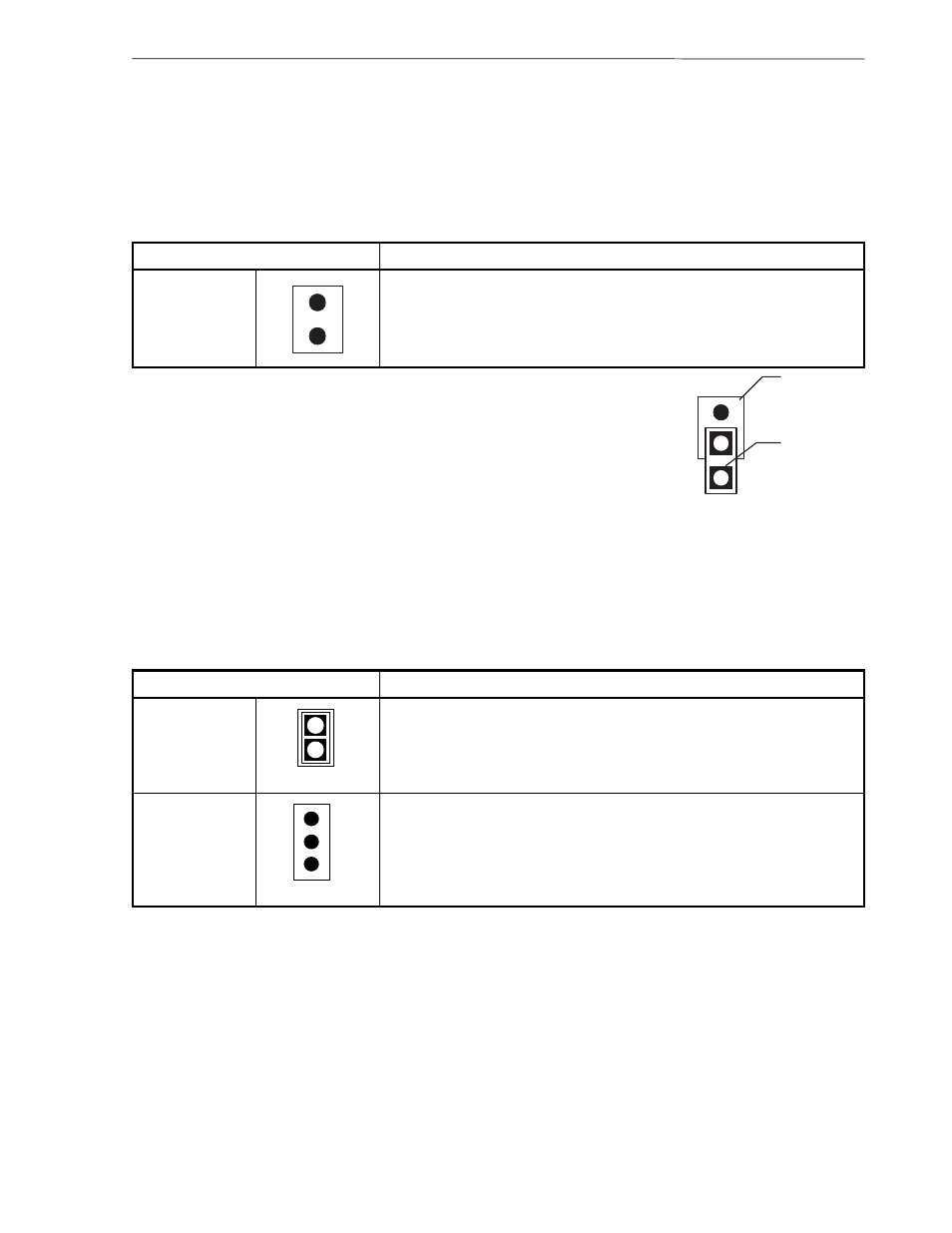

Table 2-3. JP1 Setting in IE-703002-MC
JP1 Description
Open Note Illegal access detection ROM (mounted on IE-703089-MC-EM1) for V850/SCx is
used.
Note When JP1 is set to open, keep the removed jumper contact attached to one
pin as shown in the drawing on the right.
JP1
Jumper
contact
2.4 CPU Operation Voltage Range Switching Setting
If using the IE-703002-MC for an in-circuit emulator for the V850/SCx by connecting the IE-703089-MC-EM1, set
JP3 and JP4 of the IE-703002-MC as follows.
Table 2-4. JP3 and JP4 Setting in IE-703002-MC
JP3, JP4 Description
JP3
(Shorted)
1
2
The operation voltage range of the IE-703002-MC is 3.0 to 5.5 V.
JP4
1
2
3
(Open)
The power supply for PORTV DD is generated on the IE-703089-MC-EM1.
