16
W415-0100 / D / 01.13.04
(To open the door, the trim must be removed.) When
opening the fire viewing door, a simple procedure must be
followed in order to not damage the door. First open the
valve control door. Next remove the louvres
located above the door. The door is se-
cured by two latches at the top and an-
other two at the bottom. Pull the latch han-
dles towards you and release each catch. The door may
now be safely opened.
To close the door, repeat in reverse order.
To remove the door, fully open to 90°, lift up and off.
The 2 vertical trim pieces are each held on with two mag-
nets. Attach the trim to the magnets.

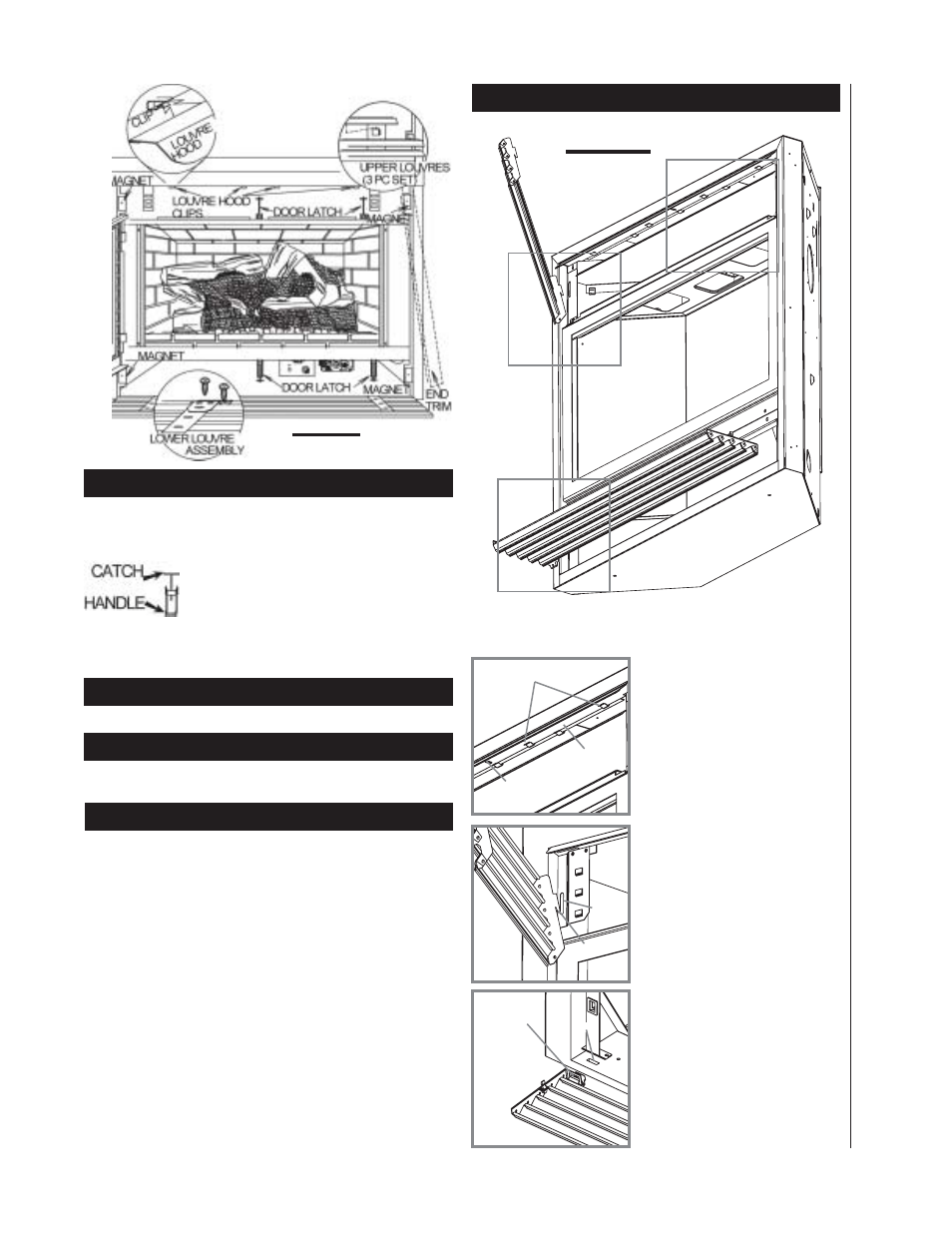

The louvre assemblies are installed as illustrated in figure
33. In addition, the louvre hood, located above the upper
louvres, is held in place with 4 clips. Slide the short leg of
the louvre hood into the clips, as shown.
A
C
B
L45 LOUVRE INSTALLATION
HOOD
Attach the hood by pressing
the top flange into the clips
along the top of the louvre
opening. Secure using two
screws located through the
slots.
LOWER LOUVRES
Insert the hinge clips into the
slots located at the bottom left
and right corners of the unit.
To remove the louvres, pull
the back tabs of the clips
forward, while pushing the
louvre assembly back. Lift the
clip.
UPPER LOUVRES
Insert the louvre tabs into the
slots located at the top left
and right corners of the unit.
A
CLIPS
S L O T
FLANGE
S L O T
TA B
B
C
HINGE
CLIP
S L O T
FIGURE 34a-c
GDL45 LOUVRE INSTALLATION
FIGURE 33
DOOR OPENING
DOOR REMOVAL
TRIM INSTALLATION
