14
W415-0100 / D / 01.13.04

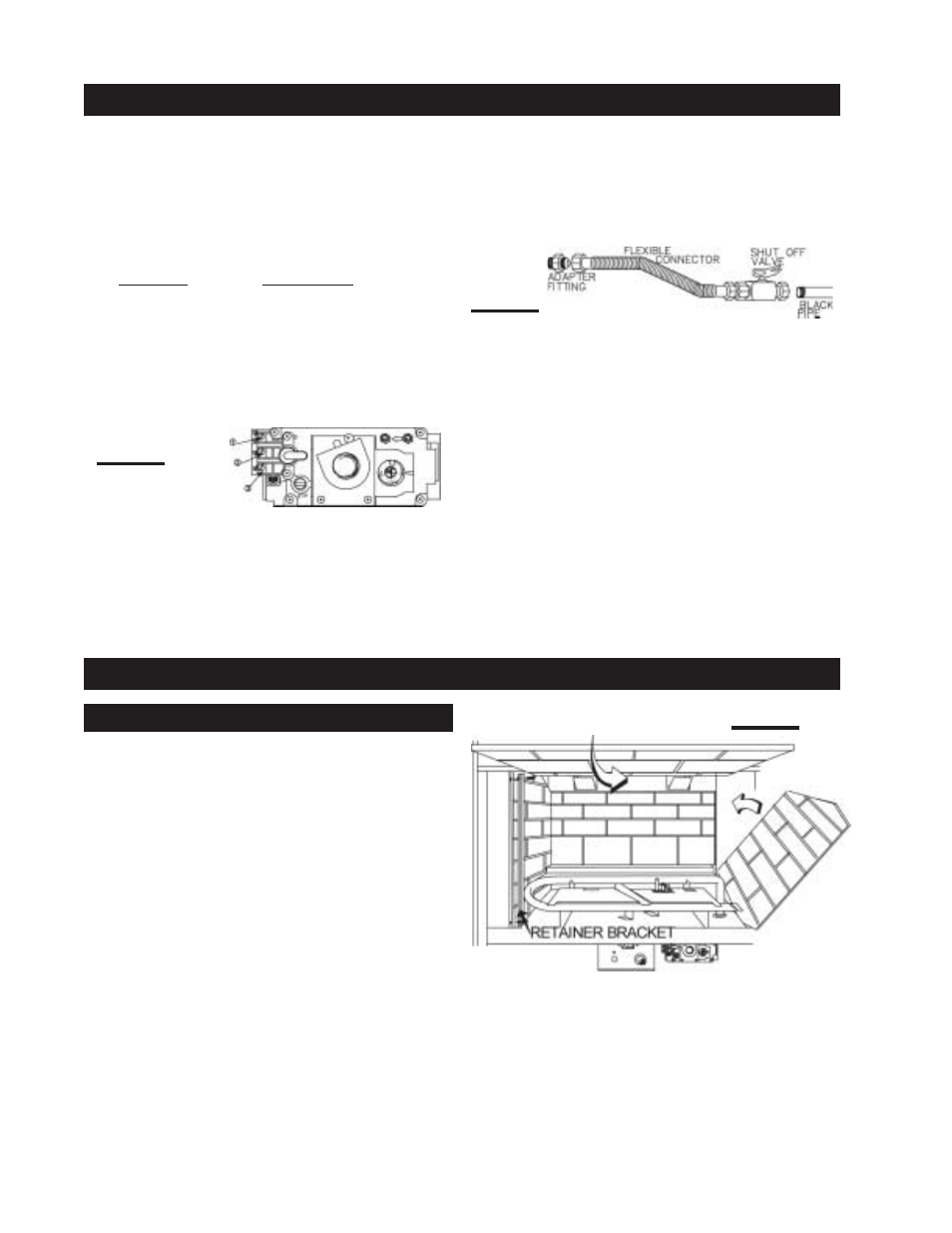

4. Install rigid black pipe, 1/2" type-L copper tubing or, if
local codes permit, a 3/8" flex connector and shutoff valve
to the gas line and the fireplace gas valve. Seal and tighten
securely. An adapter fitting is required between the gas
valve and the copper tubing or flex connector.
Do not k Do not k Do not k Do not k Do not kink f ink f ink f ink f ink fle le le le lex connector x connector x connector x connector x connector.....
Purge all gas lines with the glass door of the fireplace
open. Assure that a continuous gas flow is at the burner
before closing the door.
5. Check for gas leaks by brushing on a soap and water
solution.
Do not use open flame.
1. Route a 3/8" N.P.T. black iron gas line, 1/2" type-L
copper tubing or equivalent to the fireplace.
2. For ease of accessibility, an optional remote wall
switch or millivolt thermostat may be installed in a conven-
ient location. Route double strand solid core millivolt wire
through the electrical hole located at the bottom left side of
the unit. The recommended maximum lead length de-
pends on wire size:
WIRE SIZE MAX. LENGTH
14 gauge 100 feet
16 gauge 60 feet
18 gauge 40 feet
3. Attach the two leads to terminals 1 and 3 located on
the gas valve.
Do not connect either the wall switch, thermostat or gas
valve to electricity (110 volts).
FIGURE 31
FIGURE 30
FIGURE 29
1. Remove the two brick retainers located on either of the
firebox sides as illustrated.
2. Remove the protective plastic wrap from all four pan-
els. Centre the rear brick panel against the back of the
firebox.
3. Tilt and insert the left brick panel against the left side
of the firebox, ensuring that it butts up to the rear panel.
Excess material may be trimmed with a utility knife. Secure
in place using a retainer bracket and 2 of the screws. Re-
peat for the right side.
4. Slide the upper brick baffle into place over the side
brick panels.
When shipped, the brick panels range in colour from
white to varying shades of brown. During initial use,
the panels will darken temporarily and emit a slight
odour for a few hours. This is a normal condition that
will not occur again. Simply open a window to suffi-
ciently ventilate the room. The appearance of the pan-
els will permanently lighten in colour with use.
GAS INSTALLATION
FINISHING
BRICK PANEL INSTALLATION
