NTI USB-TO-SUN ADAPTER
1
INTRODUCTION
The NTI USB-SUN is a USB to SUN adapter that allows users to easily connect their SUN USB enabled CPU to an NTI Universal
Multi-Platform (ST-xU) or Universal Matrix (ST-nXm-U) KVM Switch.
Materials supplied:
1 NTI USB-SUN Adapter
1 USB-AB-0,5M-5T USB Type A male -to-USB Type B male cable
Cable that may be required but is not supplied:
Application NTI Cable
Connect adapter to NTI Universal Switch SKTINT-xx-MM
Legend:
xx is the length of the cable in feet.
MM indicates male-to-male connector.
APPLICATIONS

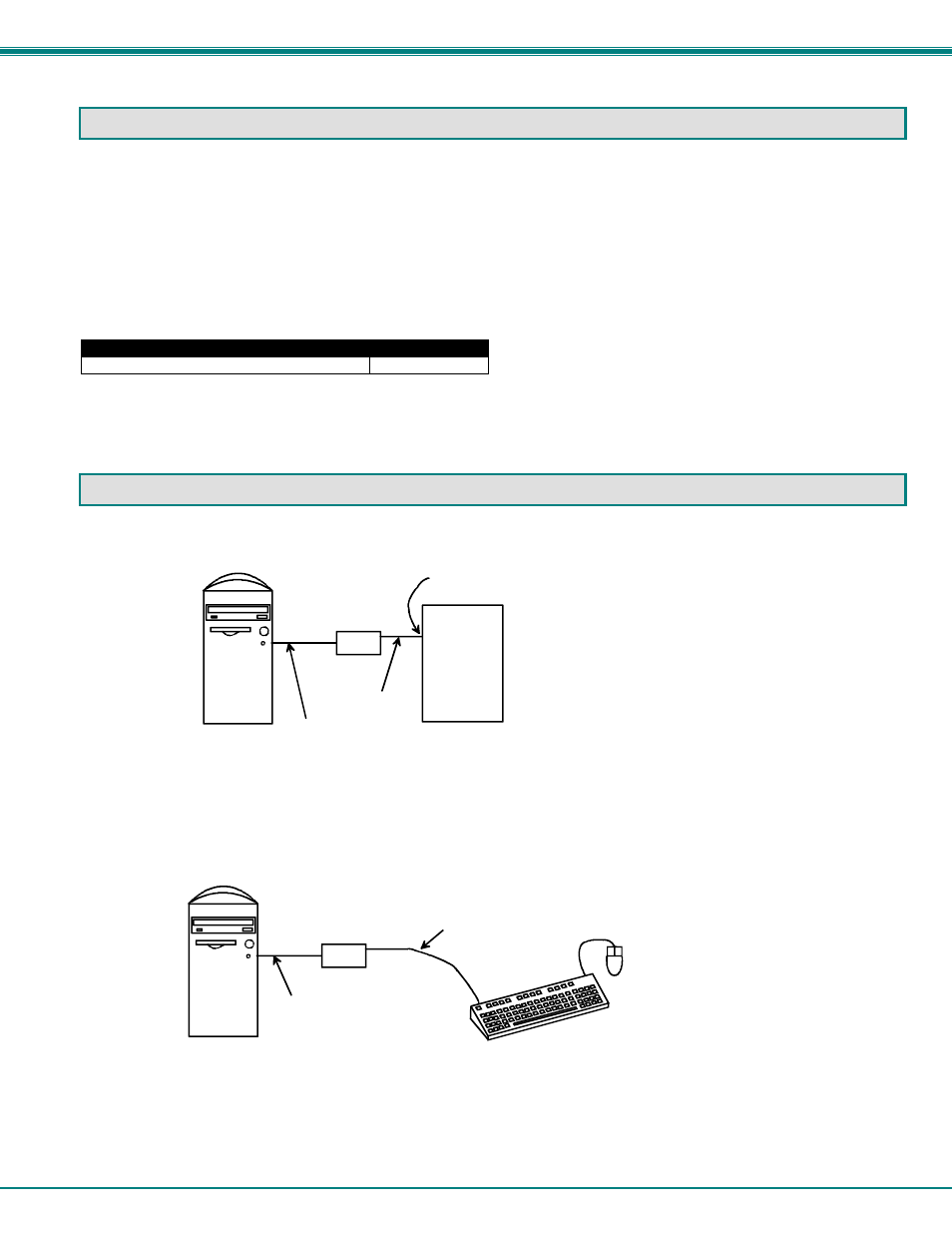

Figure 1- Connect NTI Universal or Matrix KVM Switch to a SUN CPU with a USB port
Figure 2- Connect a legacy SUN Keyboard/Mouse to a SUN CPU with a USB port
USB-AB-0,5M-5T
(supplied)
ST-nXm-U
or
ST-xU
Connection made to NTI
KVM Switch-
Keyboard and Mouse Inputs
SKTINT-xx-MM
USB-SUN
Adapter
SUN CPU
With USB
Port
USB-SUN
Adapter
SUN Legacy Keyboard & Mouse
Existing Keyboard Cable
SUN CPU
With USB
Port
USB-AB-0,5M-5T
(supplied)
