9

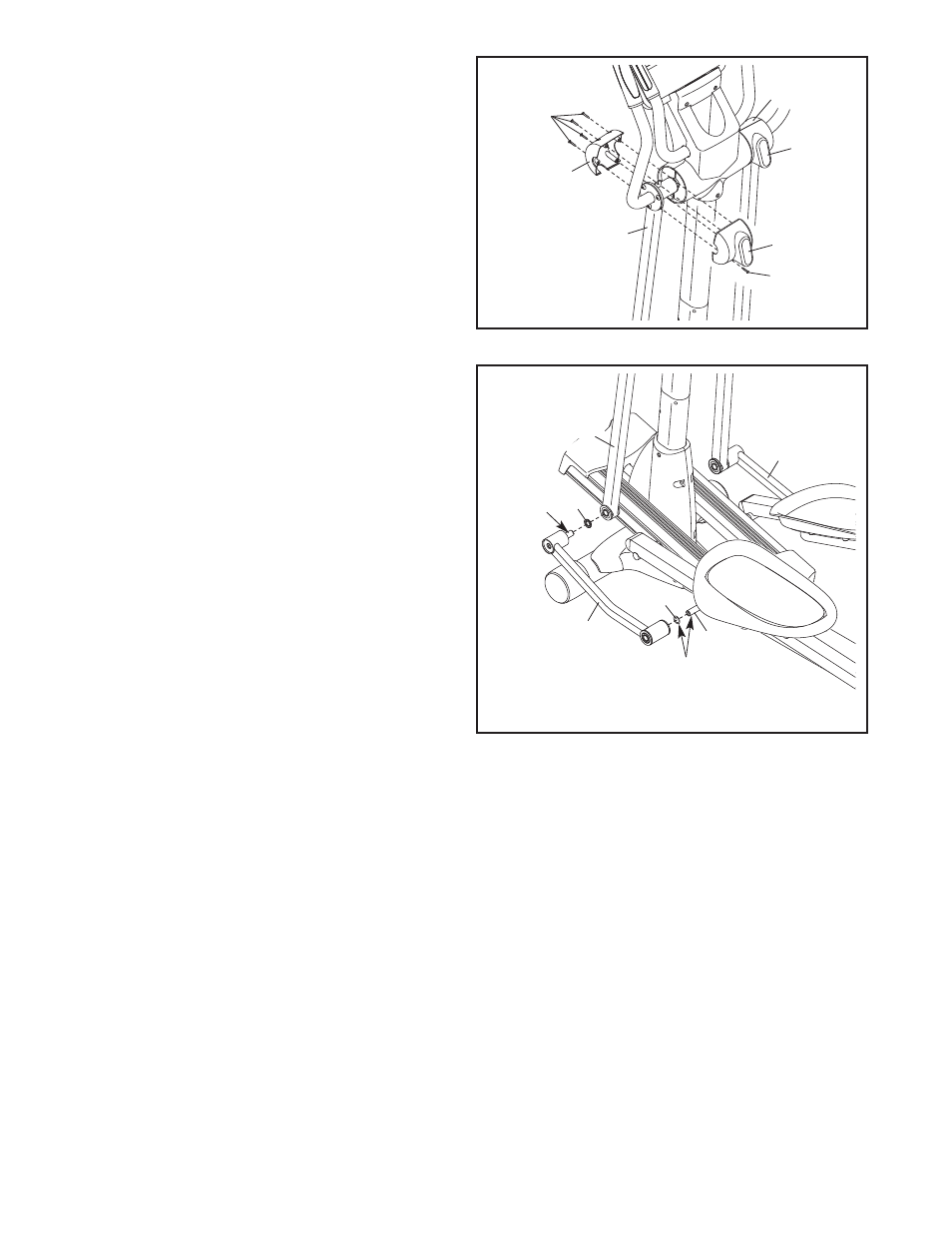

9. Apply a small amount of grease to the axle on
the Left Link Arm (30), to the axle on the Left
Pedal Arm (32), and to a Wave Washer (100).
Slide the Wave Washer (100) onto the axle on
the Left Pedal Arm (32). Next, slide a Link Arm
Spacer (74) onto the axle on the Left Link
Arm (30).
Then, insert the axle on the Left Link Arm (30)
into the left Upper Body Leg (24) while sliding
the Left Link Arm onto the axle on the Left Pedal
Arm (32).
Repeat this step with the Right Link Arm (31).
9
32
100
30
Grease
Grease
31
24
74
8. Hold the Left Rear Upper Body Cover (26) and
the Left Front Upper Body Cover (27) around
the left Upper Body Leg (24). Attach the Upper
Body Covers with five M4 x 16mm Screws (116).
Attach the Right Rear Upper Body Cover (28)
and the Right Front Upper Body Cover (29)
in the same way.
24
116
26
28
27
116
8
29
