14
W415-0153 / A / 10.29.01

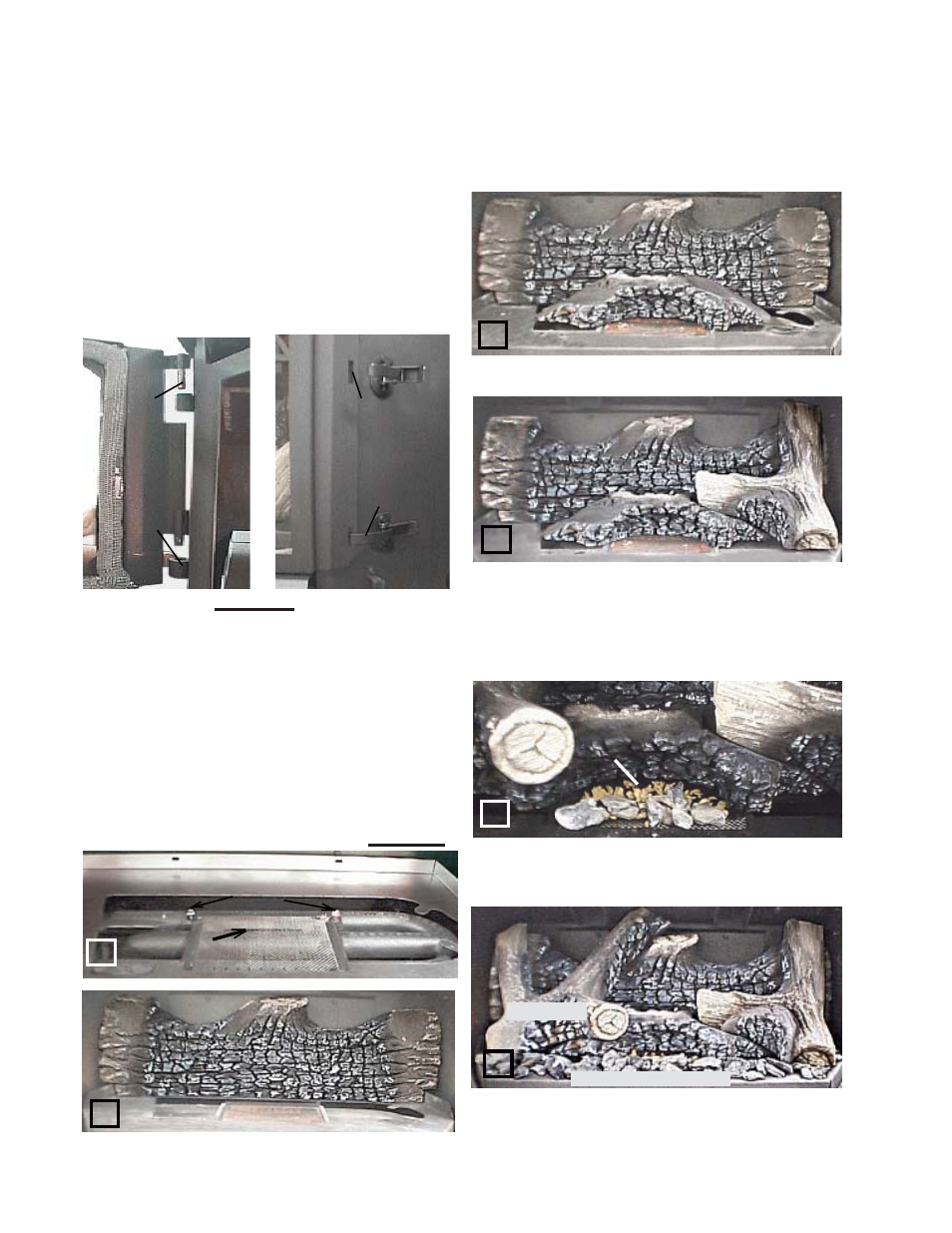

DOOR CLOSING AND OPENING
When installing the fire viewing door, a simple procedure
must be followed in order to not damage the door. First
open both side doors fully. Insert the pins on the door left
side into the hinge bushings. Swing the door closed and
engage the latches into the catch slots. Push the latch han-
dles backwards to secure the closed door. It may be nec-
essary to lift the door when securing it to ensure that it is in
a horizontal position.
To open the door, repeat in reverse order.
FINISHING
LOG PLACEMENT INSTRUCTIONS
PHAZER TM logs, glowing embers and charcoal embers ex-
clusive to Napoleon Fireplaces, glow when exposed to di-
rect flame and provide a unique and realistic glowing effect
that is different in every installation. Use only certified
PHAZER
TM logs, glowing embers and charcoal embers
available from your Napoleon / Wolf Steel Ltd. dealer.
Positioning the logs improperly will cause flame
impingement and carboning.
Place the back log into the firebox pushing it as close to the
firebox wall as possible and centered onto the log support
pan.
FIGURES 31
FIGURES 30
Place the front log on the ember screen lining up the studs
with the holes on the bottom of the log.
CATCH
SLOT
DOOR
LATCH
HINGE
PIN
BUSHING
Set the two crossover logs into the pockets provided on
both the front and rear logs., as shown.
Tear the glowing embers into pieces and place onto the
screen beneath the front log. Care should be taken to shred
the embers into thin, small irregular pieces as only the
exposed edges of the fibre hairs will glow when exposed
to direct flame; however care should be taken to not block
the burner ports. Blocked ports can cause an incorrect flame
pattern, carbon deposits and delayed ignition.
FRONT LOG 3
RIGHT LOG
4
6
CHARCOAL EMBERS
LEFT LOG
Randomly place the charcoal embers along the front of the
support pan and some onto the screen in a realistic man-
ner. Fine dust found in the bottom of the bag should not
be used. Do not place any embers on the burner.
Log colours may vary. During the initial use of the fireplace,
the colours will become more uniform as colour pigments
burn in during the heat activated curing process.
5
GLOWING
EMBERS
REAR LOG
2
SCREEN
1
FRONT LOG
STUDS
