Chapter 2
Using the SCXI-119X
SCXI-1190/1191/1192 User Manual
2-6
ni.com
Multiplexing to RF Sources

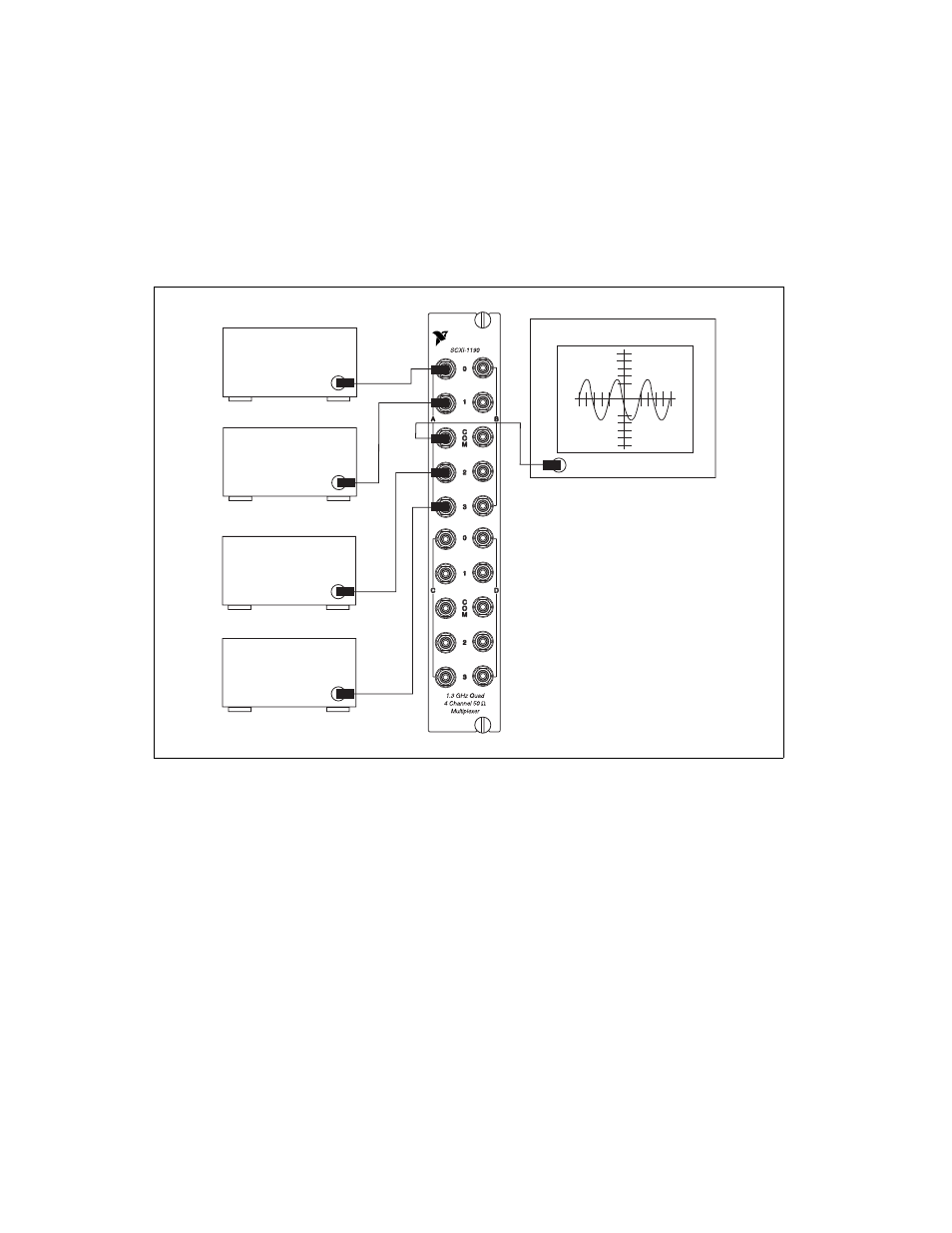

Figure 2-4 shows how to use the SCXI-1190/1191 to select one of four
RF sources to be routed to a RF measurement device.
Figure 2-4. Connecting the SCXI-1190/1191
RF Source
1
RF Source
2
RF Source
3
RF Source
4
RF Measurement Device
• Scope
• Spectrum Analyzer
• Power Meter
NATIONAL
INSTRUMENTS
