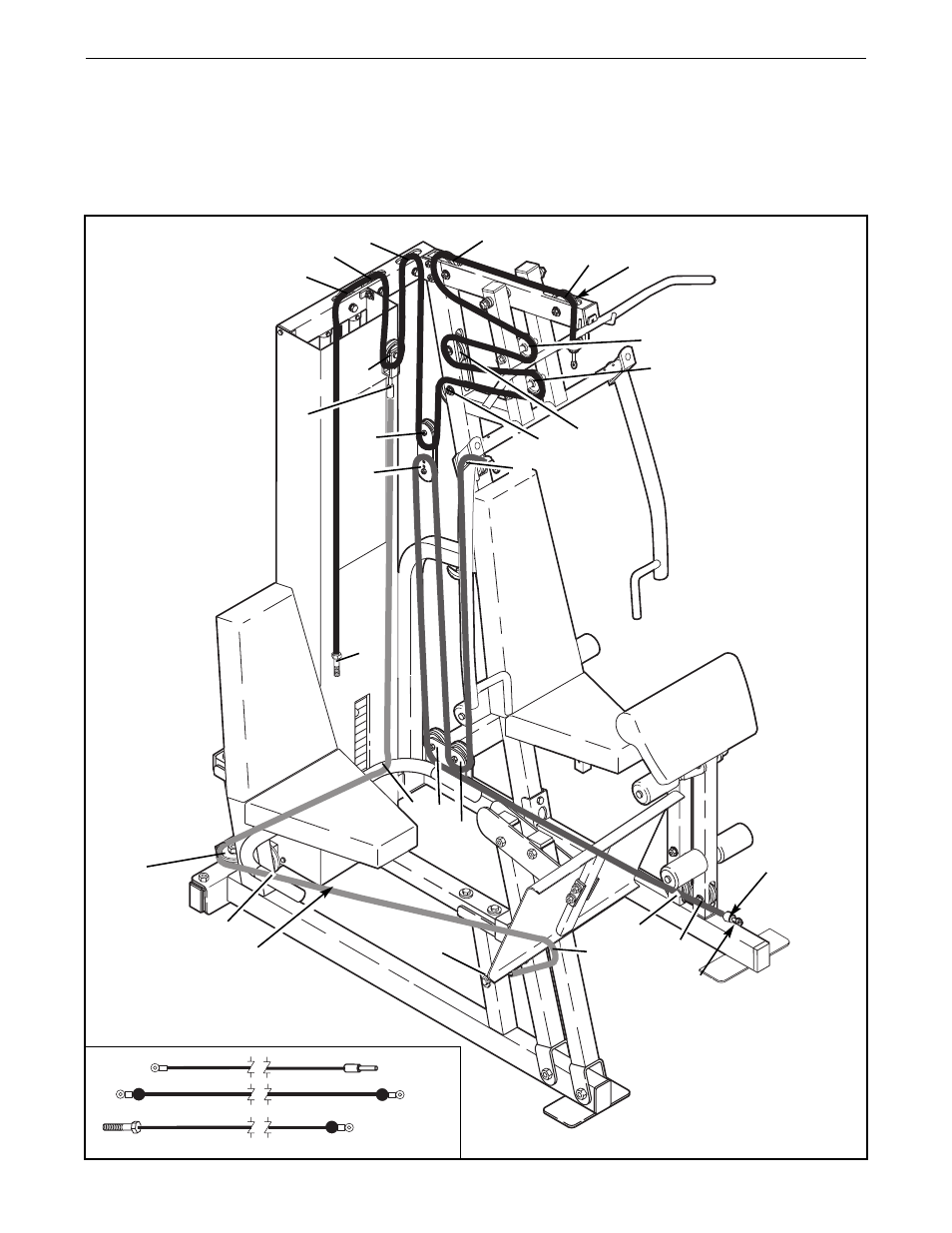

The diagram below shows the proper routing of the Low Cable (72), the High Cable (73), and the Leg Press
Cable (76). The numbers show the correct route for each cable. Make sure that the cables are routed cor-
rectly, that the pulleys move smoothly, and that the cable traps do not touch or bind the cables.
Incorrect cable routing can damage the weight system.
High Cable (73)
Large Ball
Low Cable (72)
Leg Press Cable (76)
2 8
10
12
9
1
3
7
6
4
5
11
6
Cable ID Chart
—72
—73
—76
4
2 3
1
1 2
6
5
4
3
5
CABLE DIAGRAM
