NordicTrack 831.159770 - Manual (Page 19)

19
44
45
34
34
56
32
38
38
5
Bracket
32
3

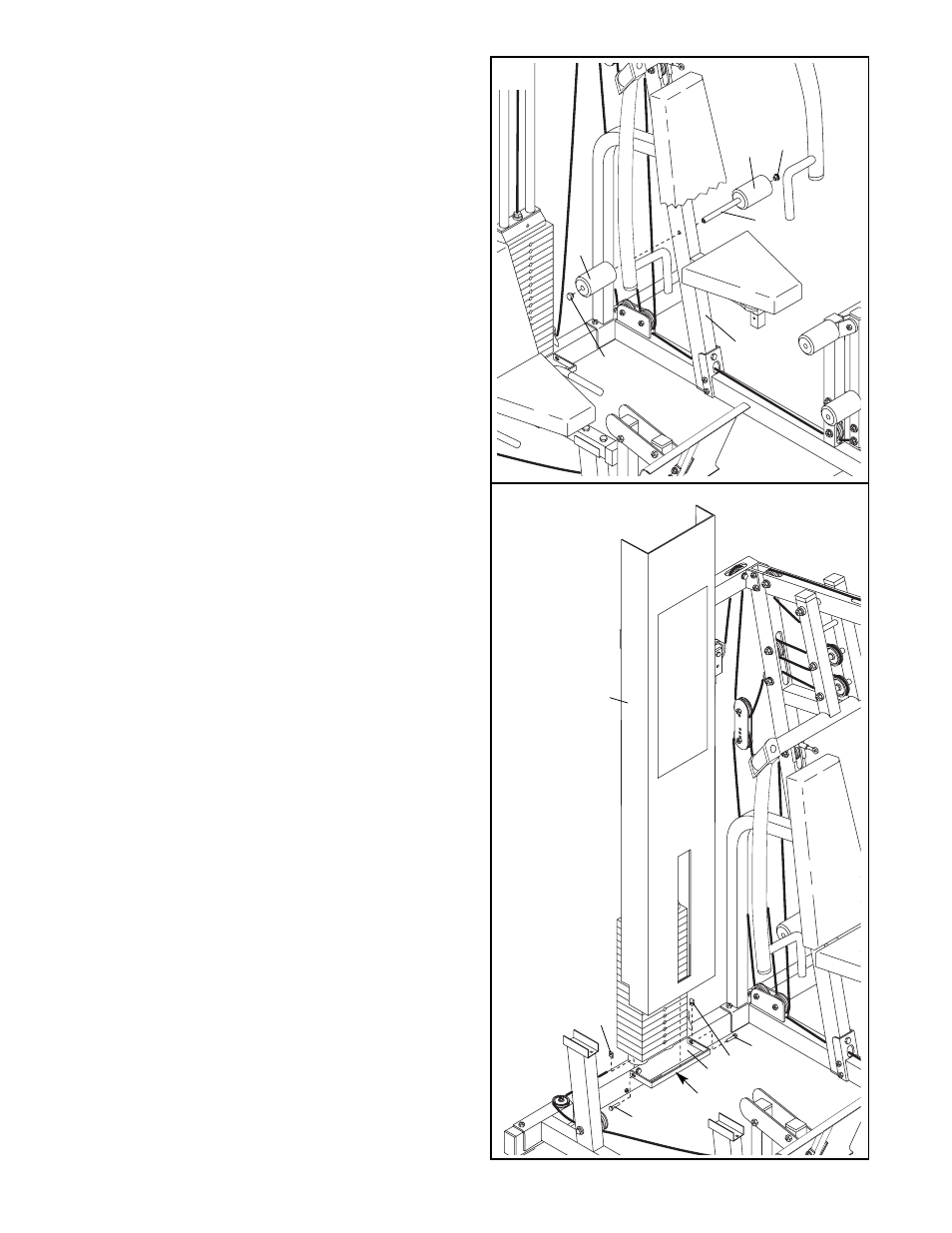

44. Press two 3/4” Round Inner Caps (34) into the
ends of the remaining Pad Tube (28).
Slide the Pad Tube (28) through the hole in the
Main Upright (3). Slide two Foam Pads (30) onto
the ends of the Pad Tube.
45. Slide the two Tinnerman Clips (38) down over the
slots in the bracket on the Stabilizer (5).
Attach the lower end of the Shroud (56) to the
bracket on the Stabilizer (5) with two #8 x 3/4”
Screws (32). The Screws must be inserted
through the square holes in the Shroud and into
the Tinnerman Clips (38).
30
30
28
