This fireplace requires a 15 amp, 120 volt and 60 hz
circuit. The fireplace should be on its own circuit. If there
are other appliances on the same circuit, this may cause
the circuit breaker or fuse to blow when the fireplace
heater is in operation.

The unit comes with a 6' electrical cord, exiting the
bottom right side. Plan your installation to avoid the use
of an extension cord. If you require an extension cord,
it must be at least 16 awg wire and be rated for 2025
watts.

Electrical outlet wires must comply with local building
codes to reduce the risk of fire, electrical shock and
injury.

Do NOT use the fireplace if any part has been under
water.

Call a qualified service technician IMMEDIATELY to have
the fireplace inspected for damage to the electrical

If it is necessary to hard wire this fireplace, a qualified
electrician may remove the cord connection, and wire
this unit directly to the house hold wiring.

Permanently framing the fi replace with an enclosure, requires
the fi replace to be hardwired.

This fi replace must be electrically connected and grounded
in accordance with local codes. In the absence of local
codes, use the current CSA C22.1 CANADIAN ELECTRICAL
CODE in Canada or the ANSI/NFPA 70-1996 NATIONAL
ELECTRICAL CODE in the United States.

1.

Power (Rocker Switch)

2. Thermostat

Switch

3.

Fan / Heater Assembly

4. Main

Circuit

Board

5.

DC Motor (flame effect)

6. Main

Power

Cord

7. Strain

Relief

8.

Flame Effect Light (two light sockets-60 watts max)

9.

Nylon Cable Tie

10. Learn Button

11. Manual on/off Button

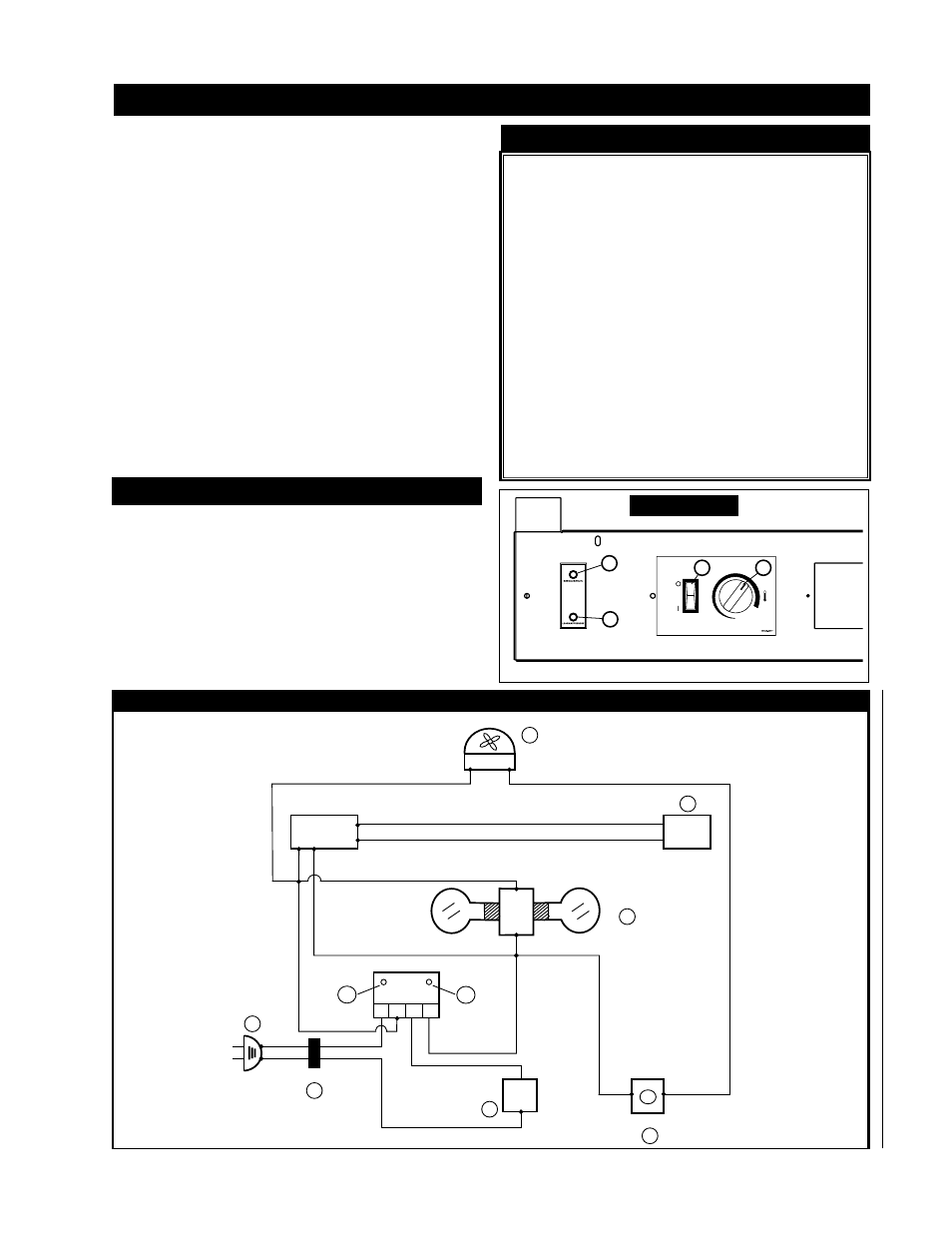

ELECTRICAL CONNECTION

HARD WIRING CONNECTION

Electric Diagram

ELECTRICAL DIAGRAM LEGEND
