Finishing – Napoleon Fireplaces EF36H User Manual
Page 6
6
W415-0544 / 10.31.05

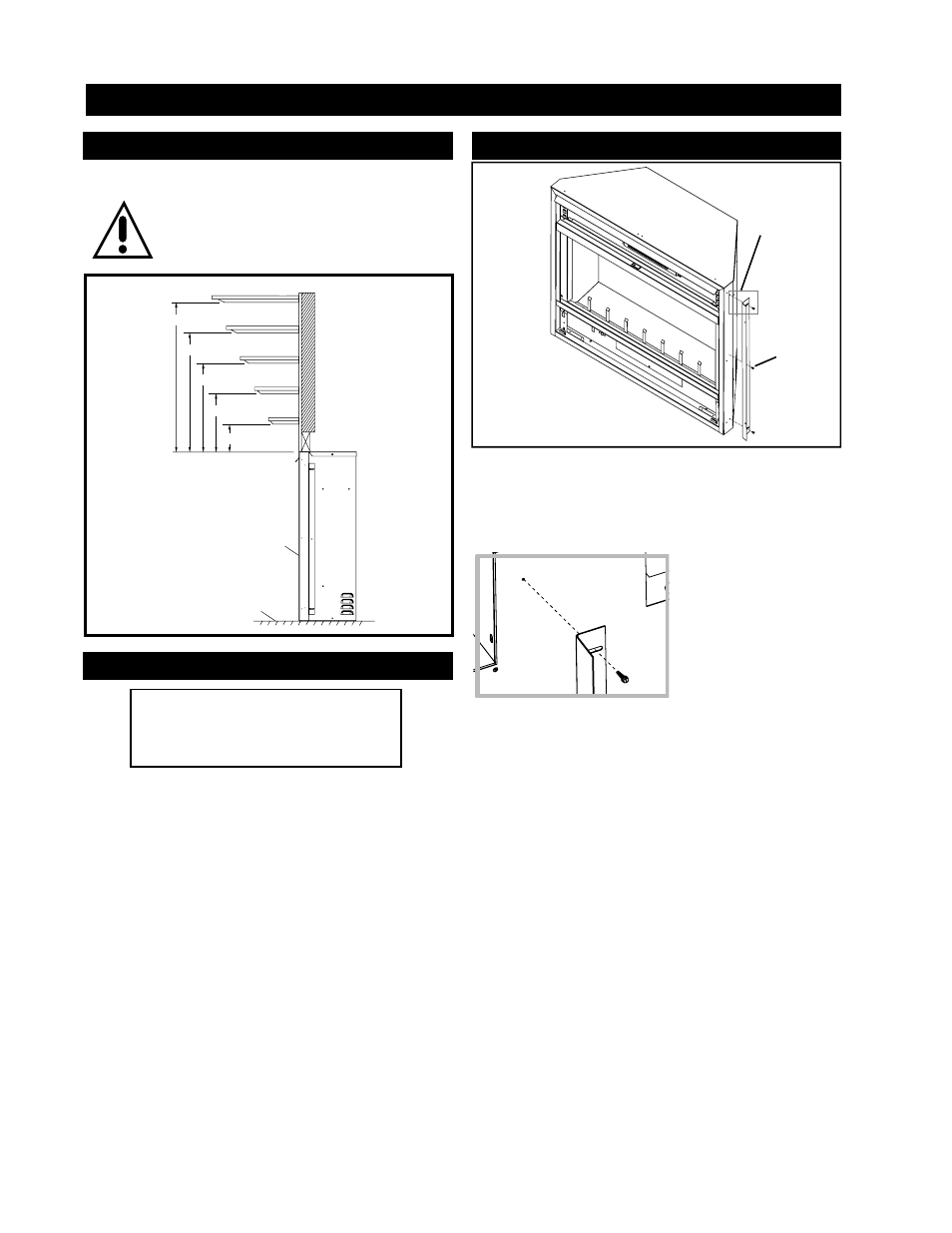

The minimum distance from the top of the unit that the mantel
can be installed is 0", at any depth.
When using paint or lacquer to finish the
mantel, such paint or lacquer must be heat
resistant to prevent discolouration.
10"
8"
6"
4"
2"
10"
8"
6"
4"
2"
FIREPLACE TOP
FIREPLACE
SIDEVIEW
FRONT
GLASS
OPTIONAL
HEARTH
WALL
Sides.........................
0
inches
Back..........................
0
inches
Floor..........................
0
inches
Top............................
0
inches
1. Choose fi replace location.
2. Place fi replace in position.
3. Frame in fi replace with header across the top. It is impor-
tant to allow for the fi nished facing materials when setting the
depth of the frame.
4. Remove the two screws
from the sides of the fi re-
place and attach the nailing
tabs with the screws.
5. To determine the final
location of the nailing tab,
you must fi rst determine the
thickness of your fi nishing
material (i.e. sheetrock/
drywall) This will determine the dimension from the control
panel front edge to the nailing tab. Secure with a sheet metal
screw supplied.
6. Attach the nailing tabs to the frame.
MANTEL
FRAMING AND FINISHING
CLEARANCE TO COMBUSTIBLES
Nailing
Tab
Installation
FINISHING
Sheet
Metal
Screw
