Specifications
Screen Size 36.3"(H)
ן20.3"(V) inches
922(H)
ן515(V) mm
diagonal 42"
Aspect Ratio 16 : 9
Resolution 1024(H)
ן768(V) pixels
Pixel Pitch 0.036"(H)
ן0.027"(V) inches
0.9(H)
ן0.671(V) mm
Color Processing 4,096 steps, 68.7 billion colors
Signals
Synchronization Range Horizontal : 15.5 to 110.0 kHz
(automatic : step scan)
Vertical : 50.0 to 120.0 Hz
(automatic : step scan)
Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),
PAL60, SECAM, HD*
1 , DVD* 1
Input Terminals
PC/RGB
Visual 1 (Analog) mini D-sub 15-pin
ן1
Video
Visual 1 RCA
ן1
Visual 2 S-Video: DIN 4-pin
ן1
DVD/HD
Visual 1 RCA-pin (Y, Cb/Pb, Cr/Pr)
ן1* 1
Visual 2 RCA-pin (Y, Cb/Pb, Cr/Pr)
ן1* 1
HDMI HDMI connector
ן2* 2
Audio Stereo RCA
ן3 (Selectable)
External Control D-sub 9-pin
ן1 (RS-232C)
Sound output 8W+8W at 6 ohm
Power Supply AC100-240V 50/60Hz
Current Rating 4.5A (maximum)
Power Consumption 285W (typical)
Dimensions 40.2 (W)
ן24 (H)ן3.9 (D) inches
1022 (W)
ן610 (H)ן98 (D) mm
Weight 59.5 lbs / 27 kg (without stand)
Environmental Considerations
Operating Temperature 0°C to 40°C / 32°F to 104°F
Humidity 20 to 80% (no condensation)
Altitude 720 to 1114 hPa
(0 to 9180 feet / 0 to 2800 m)
Storage Temperature -10°C to 50°C / 14°F to 122°F
Humidity 10 to 90% (no condensation)
Altitude 700 to 1114 hPa
(0 to 9840 feet / 0 to 3000 m)
Other Features Motion compensated 3D Scan Converter (NTSC,
PAL, 480I, 576I, 525I, 625I, 1035I, 1080I), 2-3
pull down Converter (NTSC, 480I, 525I, 1035I,
1080I (60Hz)), 2-2 pull down Converter (PAL,
576I, 625I, NTSC, 480I, 525I), Digital Zoom
Function (100-900% Selectable), Self Diagnosis,
Image Burn reduction tools (PEAK BRIGHT,
ORBITER, INVERSE, WHITE, SCREEN
WIPER), Color Temperature select (high/middle/
middle low/low, user has 4 memories), Auto
Picture, Input Skip, Color Tune, Low Tone (3
mode), Gamma Correction (4 mode), Plug and
play (DDC1, DDC2b, HDMI: E-DDC),
Split screen operations
Regulations UL 60065, CAN/CSA-C22.2 No.60065-03,
FCC class B, ICES-003 class B
The features and specifications may be subject to change without
notice.
* 1 DVD/HD input signals supported on this system.
480P (60 Hz)
480I (60 Hz) 525P (60 Hz)
525I (60 Hz) 576P (50 Hz) 576I (50 Hz)
625P (50 Hz) 625I (50 Hz) 720P (60 Hz)
720P (50 Hz) 1035I (60 Hz) 1080I (50 Hz)
1080I (60 Hz) 1080P (50 Hz) 1080P (60 Hz)
* 2 HDMI input signals supported on this system.
Supported Signals
• 640
؂480P @ 59.94/60Hz
• 1920
؂1080I @ 50Hz
• 1280
؂720P @ 59.94/60Hz
• 720
؂576P @ 50Hz
• 1920
؂1080I @ 59.94/60Hz
• 1440 (720)
؂576I @ 50Hz
• 720
؂480P @ 59.94/60Hz
• 1280
؂720P @ 50Hz
• 1440 (720)
؂480I @ 59.94/60Hz
Note: In some cases a signal on the plasma monitor may not be displayed
properly. The problem may be an inconsistency with standards from
the source equipment (DVD, Set-top box, etc...). If you do experience
such a problem please contact NEC Solutions (America), Inc. and also
the manufacturer of the source equipment.

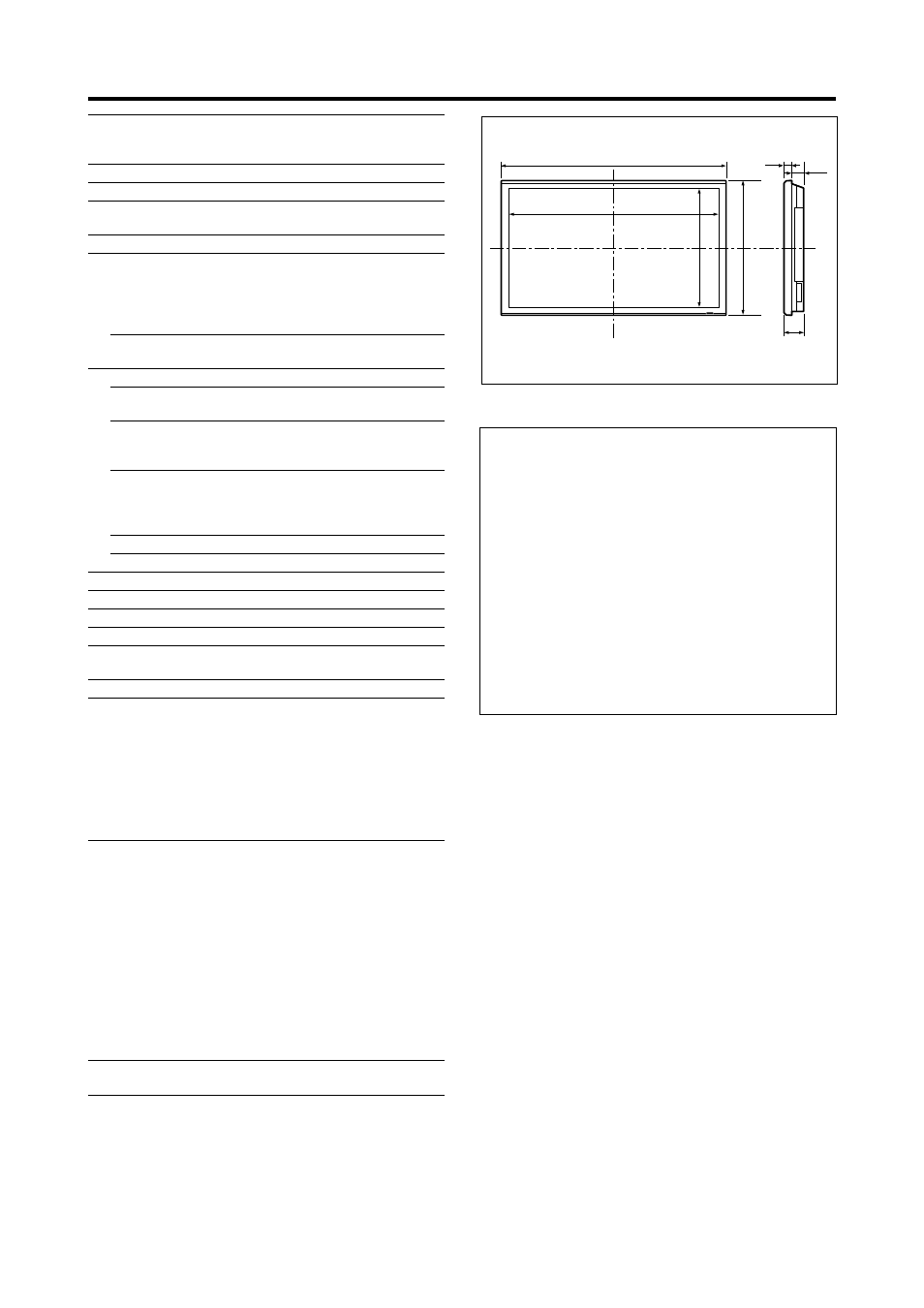

Units are in inch
(mm)
3.9"
(98)
1.59"
(40.4) 2.31"
(57.6)
40.2" (1022)
24" (610)
36.3" (922)
20.3" (515)
En-2
For the operation of your plasma monitor,
refer to “Operation Manual”.
