7

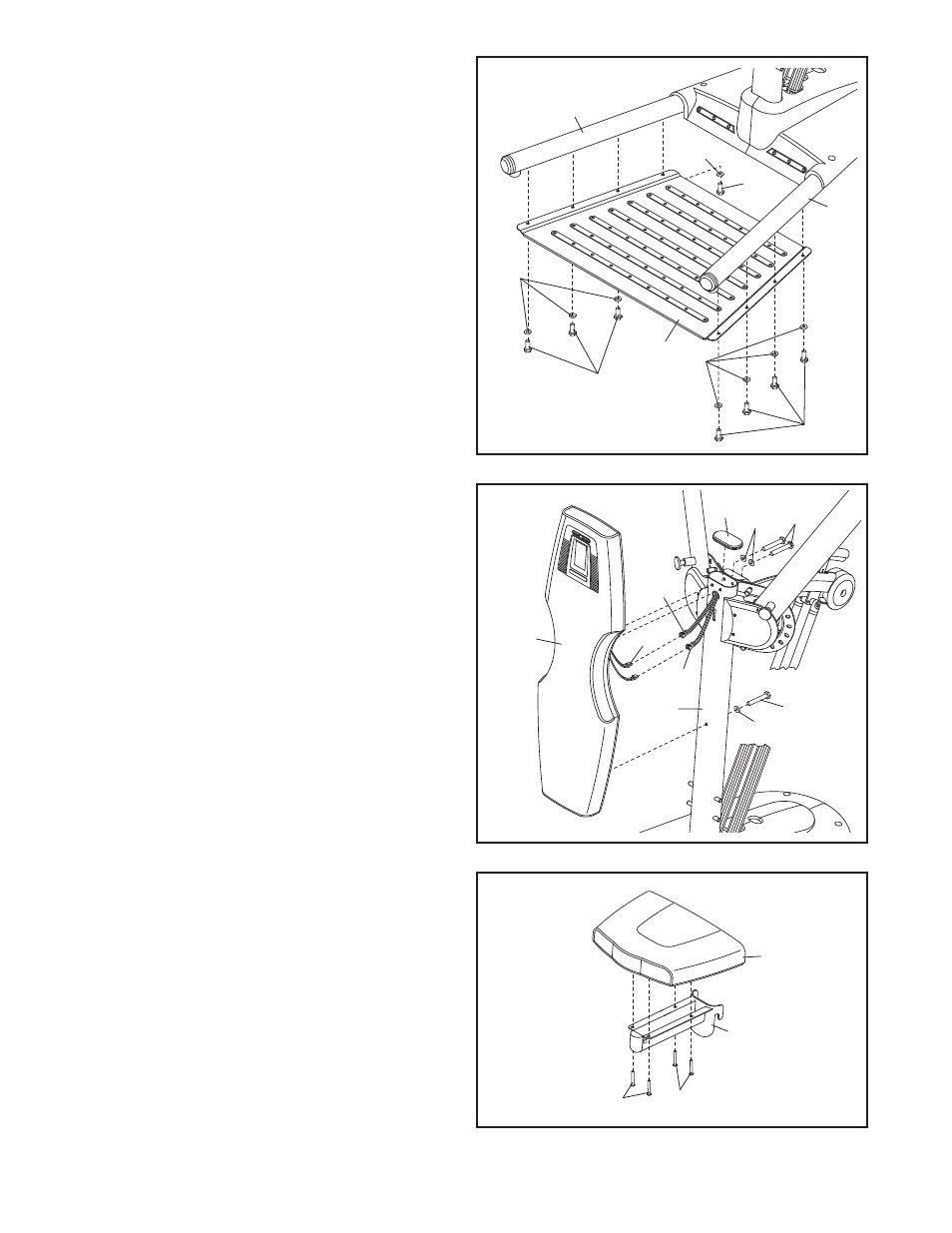

3. Have a second person hold the Backrest (23)
near the Base (1). Connect the 4-pin Counter
Wire Harness (39) to the 4-pin Console Wire
Harness (41). Next, connect the 3-pin Wire
Harness (42) to the 3-pin wire harness extend-
ing from the Backrest. Carefully push the wire
harnesses into the Base.
Attach the Backrest (23) to the Base (1) with
three M6 x 80mm Button Screws (68) and three
M6 Washers (82).
Press the Upright Cap (33) into the top of the
Base (1).
23
82
82
68
39
41
42
68
3
33
1
4
2. Attach the Base Plate (3) to the Base Legs (2)
with eight M6 x 20mm Screws (67) and eight M6
Large Washers (61).
See step 1. Tighten the M10 x 20mm Button
Screws (59).
Carefully tip the resistance system back into the
operating position.
3
67
67
67
61
61
61
2
2
2
5. Make sure that all parts are properly tight-
ened. The use of the remaining parts will be
explained in ADJUSTMENT, beginning on
PAGE 8.
4. Attach the Seat (24) to the Seat Frame (5) with
four M6 x 25mm Screws (72).
24
5
72 72
