Connect the components
18

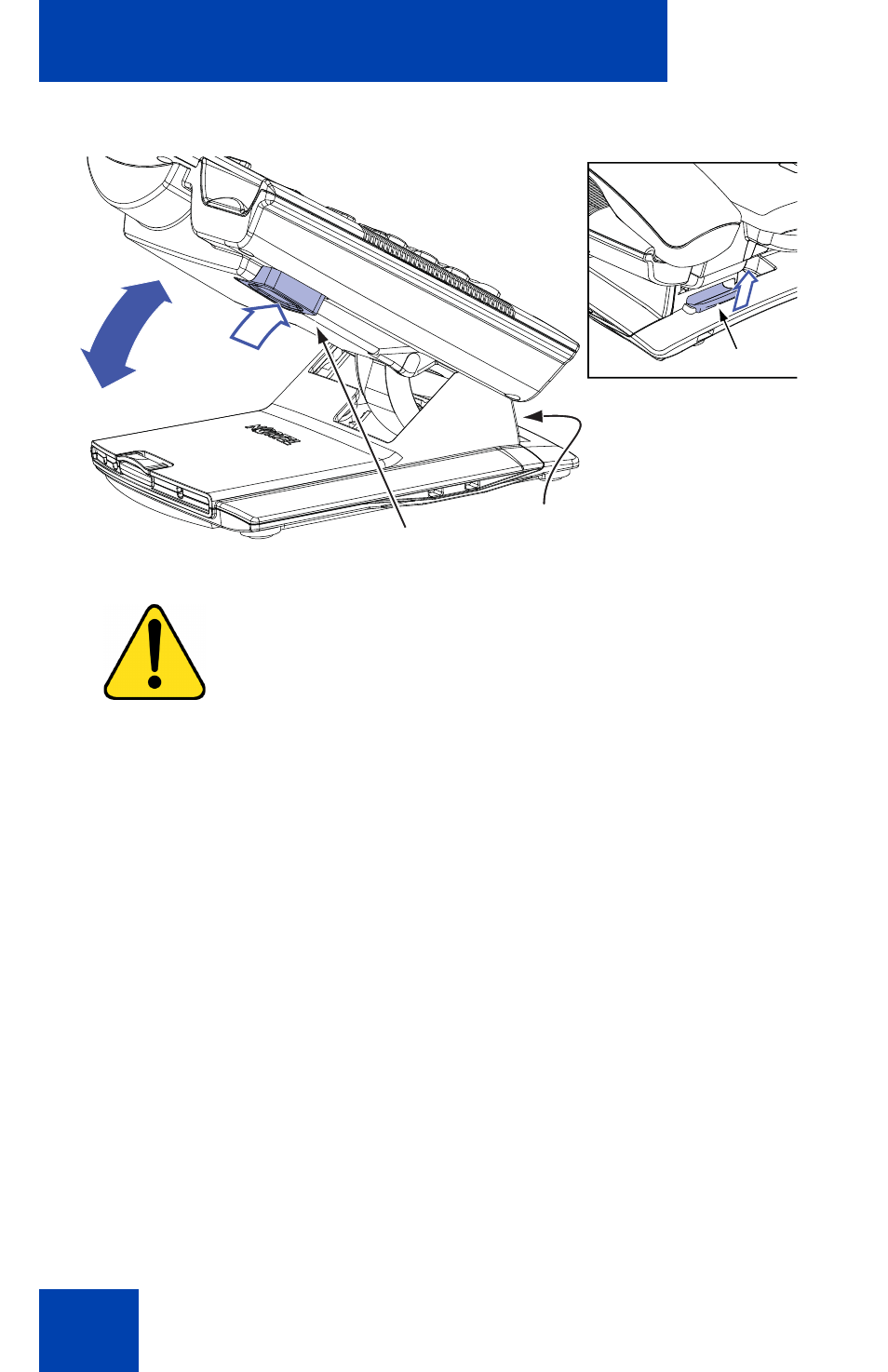

Figure 3: Release the phone from the stand
Use the following steps to connect the components of your phone.
1. Remove the stand cover. Pull upward on the center catch (see
Figure 4) and remove the stand cover from the stand base. The
cable routing tracks are now accessible in the stand base (see
Figure 5 ).
WARNING Your IP Phone 1110 is shipped with its stand
locked in position. To release the phone from the stand, press
the Wall-Mount lever (see
Figure 3 ) and gently rotate the
phone away from the stand a little. When you’re sure the
phone is released from the stand, press the Tilt lever and fully
rotate the phone away from the stand.
Wall-mount
lever Tilt lever
Wall-mount lever
