NEC NP1000 - Manual (Page 4)

NEC Solutions (America), Inc.
Visual Systems Division
NP1000/2000 Installation Guide
Desktop and Ceiling Mount v 1.3
www.necvisualsystems.com NP1000/2000 Page 4 of 9
Lens Shift Adjustable Range
Lens Shift Range for Desktop and Ceiling Mount
Application

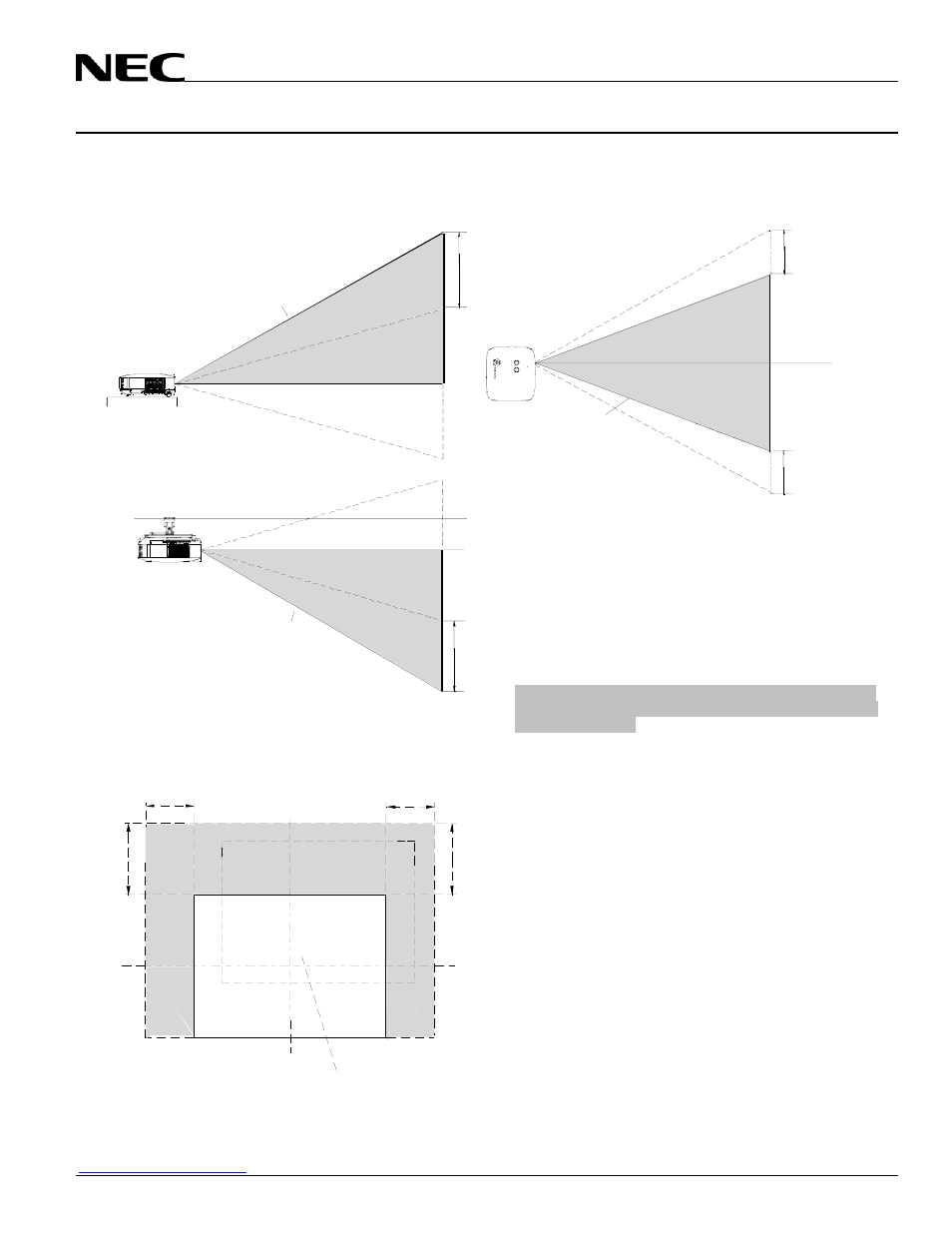

The diagram below shows the location of the image position
in the lens. The lens can be shifted within the shaded area as
shown using the normal projection position as a starting
point.
Note: Lens shift feature is not available with NP01FL (rear
lens). NP01FL should be used only for “zero degree” / “no-
offset” applications.
Maximum Possible Range
for Standard Lens/NP02ZL/NP03ZL/NP04ZL/NP05ZL:
Up: 0.5H
Right: 0.10W
Left: 0.10W
(W: width of projected image, H: height of projected image)
Normal Position
0.5H
Desktop/Front
Vertical
Normal Position
0.10W Horizontal
Normal Position
Ceiling/Front
Vertical
0.5H
0.10W
0.50H 0.50H
Normal projection
position
0.10W 0.10W
