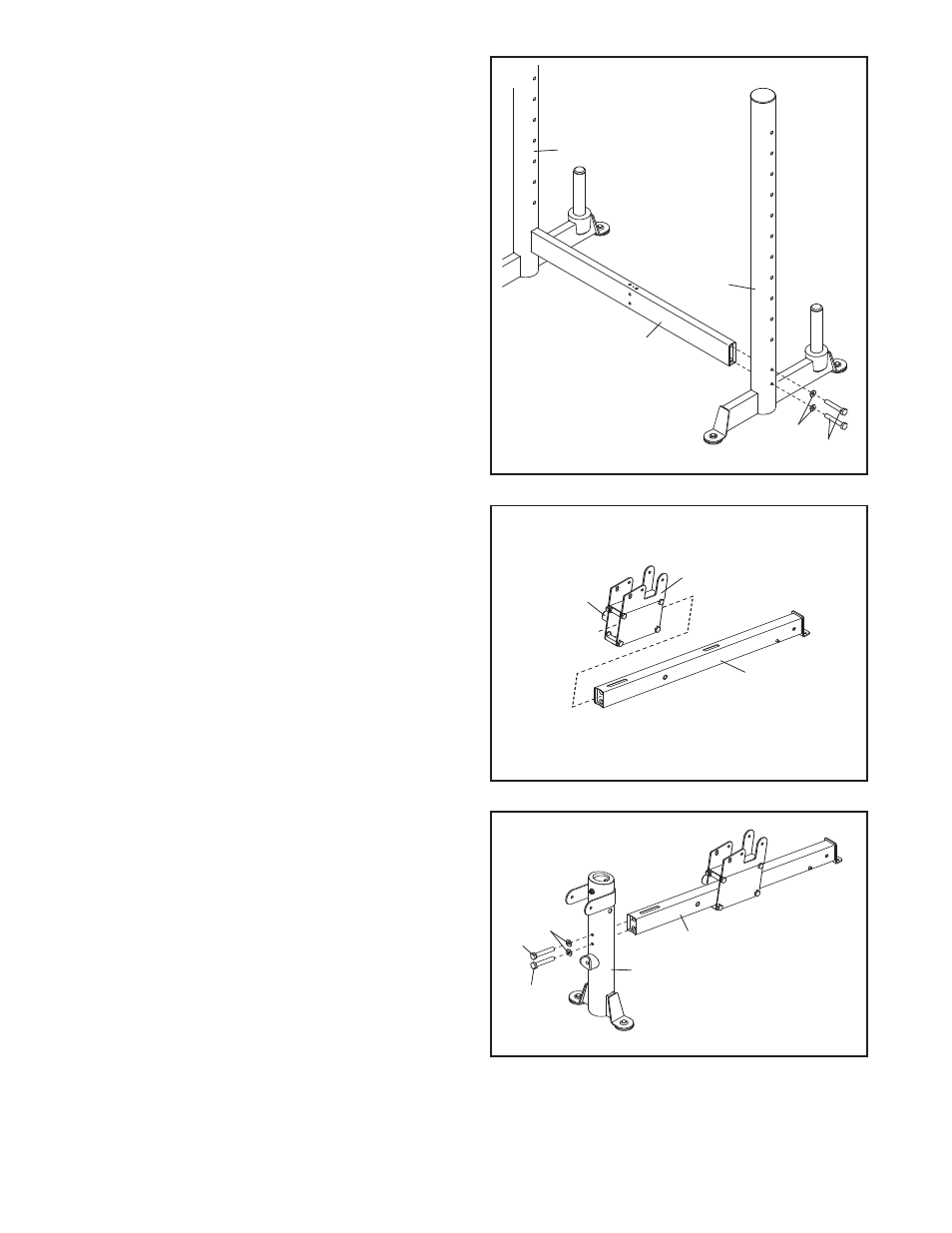

2. Orient the Left Upright (4) as shown. Attach the
Left Upright to the Cross Frame (2) with two M10
x 125mm Screws (53) and two M10 Washers
(65).
Attach the Right Upright (5) to the Cross
Frame (2) in the same way.
2
13
44
1
3. Orient the Seat Carriage (13) and the Frame (1)
as shown, and slide the Seat Carriage onto the
Frame.
Next, pull the Seat Carriage Knob (44), slide the
Seat Carriage (13) to the desired position, and
engage the Seat Carriage Knob into one of the
adjustment holes in the Frame (1).
53
5
4
2
3
65
4. Attach the Front Leg (3) to the Frame (1) with two
M10 x 125mm Screws (53) and two M10 Washers
(65).
4
53
53
65
1
3
