7
W415-0369 / F / 12.10.07
IT IS HIGHLY RECOMMENDED TO PROTECT THE LOGS
FROM MOISTURE.
COVER THE FIREBOX WHEN NOT IN USE.
PHAZER TM logs are exclusive to NAPOLEON® Fireplaces, and
provide a unique and realistic glowing effect that is different in every
installation.
Log colours
may vary. During the initial use of the fi replace, the
colours will become more uniform as colour pigments burn in during
the heat activated curing process.

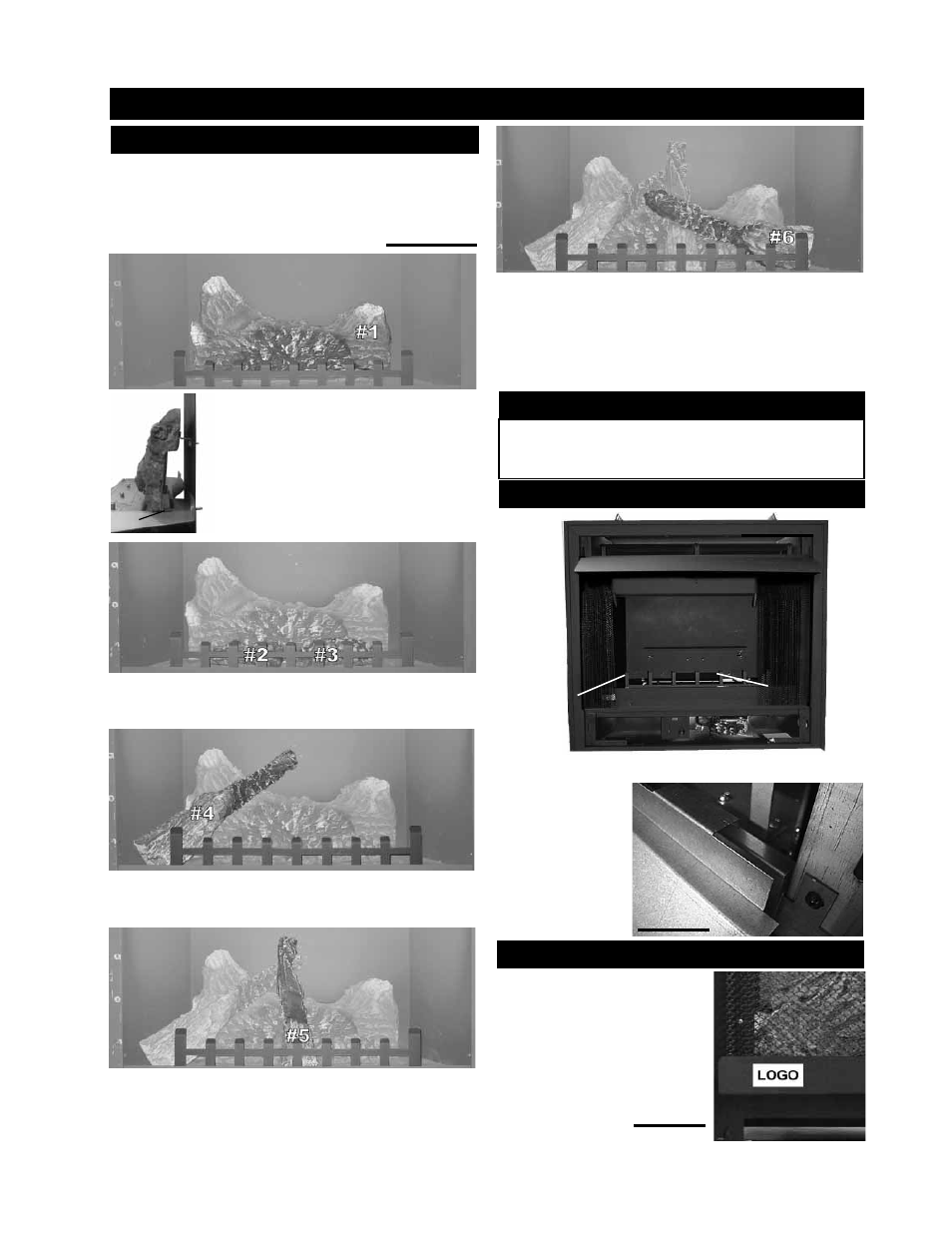

1. Place the back log (#1) onto the log
support tray and in front of the tabs. The tabs
maintain an air space between the log and
fi rebox back to facilitate combustion air fl ow.
Ensure that the back of the log rests against
the brackets on the back wall of the fi rebox.
2. Move the two small logs (#2 & #3) into position, lining up the
studs located on the burner with the holes on the bottom of the logs.
Ensure that the small logs sit fl at on the burner.
3. Place the bottom of the left crossover log (#4) against the left
fi rebox side and pulled forward to the grate.
The top of the log should rest in the pocket on the back log.
4. Position the notch located on the end of the center log (#5)
against the middle grate post with the other end of the log resting in
the pocket of the left crossover log.
5. Place the bottom of the right crossover log (#6) against the right
fi rebox side and pulled forward to the grate. The top of the log should
rest in the pocket provided on the center log (#5).
Blocked burner ports can cause an incorrect fl ame pattern, carbon
deposits and delayed ignition. PHAZER
TM logs glow when exposed
to direct fl ame.PHAZER TM logs available from your NAPOLEON®
dealer.
FINISHING
LOG PLACEMENT
FIGURE 11a-d
IMPORTANT SIDEVIEW
TAB
The curtain mesh must be kept fully closed during operation to help
prevent accidental burns from occurring.
The heater must not be
used when the hood
is removed. Hook the
hood over the lip of the
curtain support plate.
HOOD
HOOD
CURTAIN
MESH
FIGURE 12
FIGURE 13
Remove the backing of the logo sup-
plied and place on the screen cover,
as indicated.
LOGO PLACEMENT
FIGURE 14
