BATTERY OPERATION INSTRUCTION

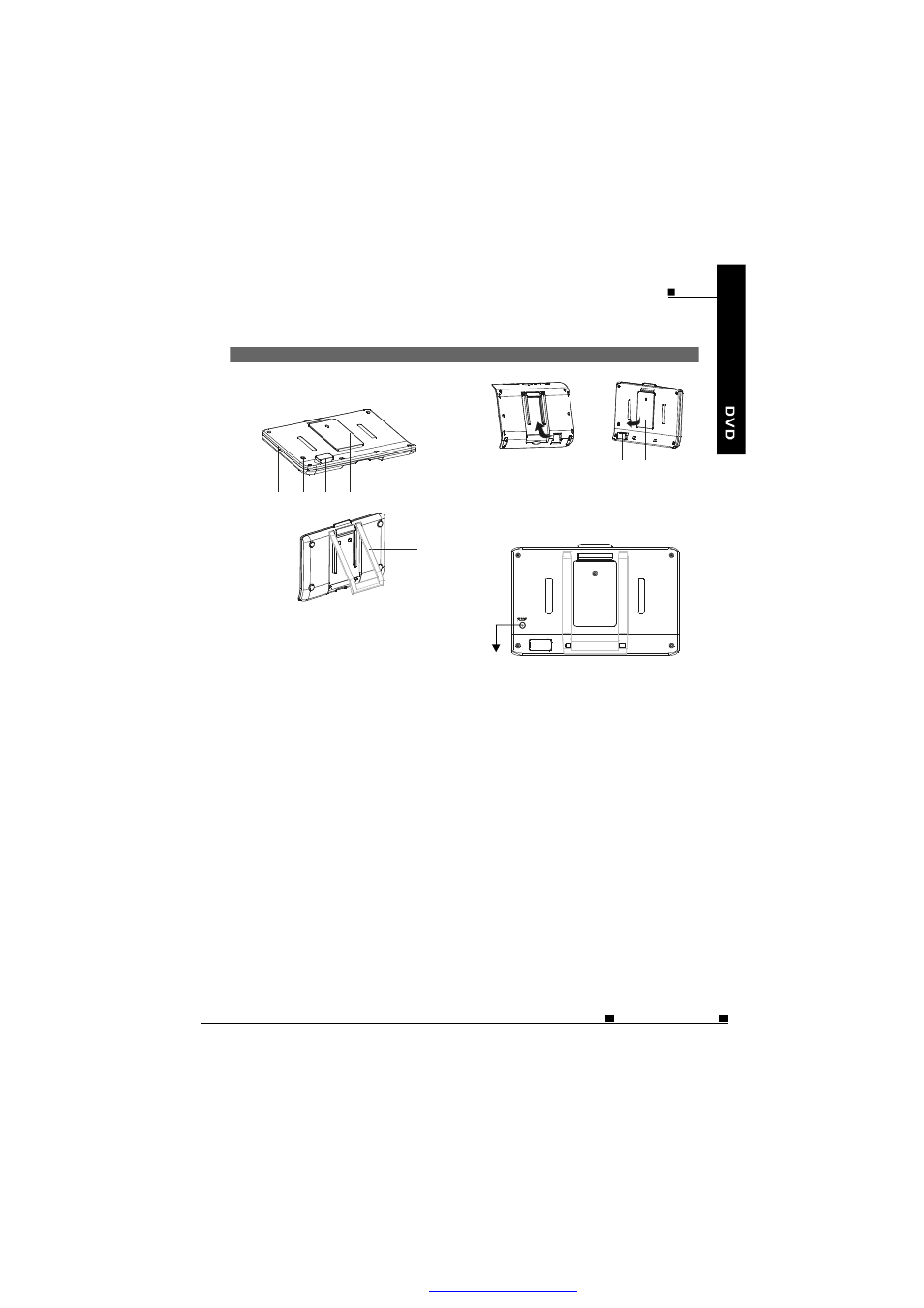

NAMES OF BATTERY PARTS AND THEIR
FUNCTIONS

1 DC IN connector

2 Player terminals

3 Battery indicator LED

4 Slide fitting mount
5 battery stand

Connect the power adapter to recharge.

Supply power to the player.
Do not short-circuit the terminals.

When the battery is discharging, LED is off.
When recharging the b attery, LED is red.
When the LED turns from red to off, it means
finishing recharging.

ATTACHING THE BATTERY PACK TO THE
PLAYER

1 Attach the battery pack to the rear of the

DVD player.

2 Slide the battery from the bottom, in an

upward direction, to engage the slide fitting
mount, Ensure the battery is pushed to the
top of the slide to engage the connection .

3 Now the player will operate from the battery

supply.

Battery Bottom

1) Slide fitting mount
2) Battery connector

Note:

Remember to insert back the rubber cover
of the unit to BATTERY CONNECTOR after
using the battery pack.

RECHARGING THE BATTERY PACK

Connect the output plug of AC/DC adapter
to the battery pack.

Notes:

1. The battery pack can be used for about 300

cycles of recharging and operations, though
this is variable depending on the operating
conditions.

2. Charge the battery pack fully before using it

for the first time. Place the battery pack and
AC/DC adapter on a flat surface for
recharging. Do not short-circuit the terminals
of the battery pack and AC/DC adapter. If
the battery pack is fully recharged, the player
can play DVD

s continuously for about 2

hours.

3. The battery charger(AC/DC adapter) is

compatible with supply voltage between
100V and 240 V AC and can be used
universally. When you want to use it on an
overseas travel, be sure to prepare a power
plug adapter matching the local power outlet.

4. The battery will be charged if connected to

the DVD player and the DVD player is
supplied with 12V DC.
