NextBase SDV685-AC - Manual (Page 12)

ENG
MOBILE ENTERTAINMENT

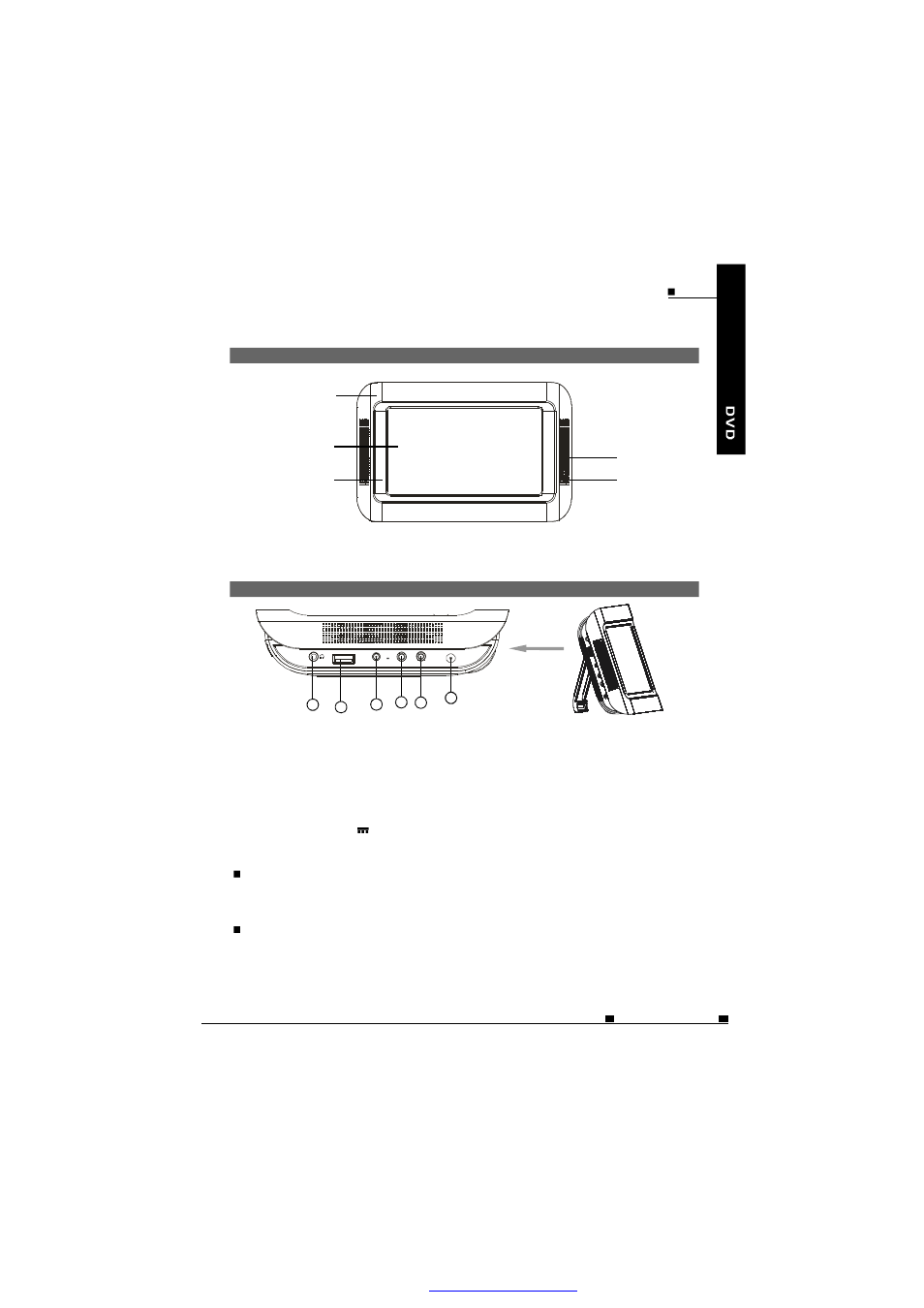

11 PARTS AND CONTENTS
FRONT SIDE
LEFT SIDE
5 4 3 2 1
6
6
DC IN 12V
Connect the included AC/DC adapter
or car power cable here.
5
AUDIO IN / OUT / COAXIAL OUT
Input or output audio signals to a
connected device by setting AV IN/
OUT mode button on the remote control.
Output coaxial audio signals to a
connected device.
The included AV cable or coaxial
cable (not included) is connected here.
4
VIDEO IN / OUT
Input or output video signals to a
connected device by setting AV IN/ OUT
mode button on the remote control.
The included AV cable is connected here.
2
USB port
Support USB 1.1 use.
1
EARPHONE jack
For connecting a stereo earphone
or an amplifier.
3
DC OUT jack (12V 1A)
DC output for car use only.
Note:
this connector is for interconnection
to a second NEXTBASE player
only. No other use intended or
damage may result.
The maximum output current is 1A.
1
2
3
4 5
1. Disc compartment cover 2. TFT Screen 3. Speakers
4. IR Headphone Transmitter LED 5. Remote Control Sensor
USB V ID EO IN /O U T AUD IO IN/ OUT COAX IA L OUT D C IN 12 V DC OUT 12V 1A CAR USE ONLY
