Installation
If you are installing the VCS-2D-HP into an existing wall,
take time to consider any possible obstructions which may
be hidden inside the wall, such as wood and metal studs;
electrical, telephone or other types of wiring; plumbing;
conduit; old wall safes; etc.
1. Install the electrical box or p-ring in the usual manner.
2. Run all the necessary wiring to the VCS-2D-HP. Label the
wires for future reference.
3. Make the connections to the VCS-2D-HP. Locate the
connectors for the VCS-2D-HP (remove them if they are
plugged in). Next, strip
1/4
” of insulation from the end of
each wire. Tightly twist the end of each wire until there are
no frayed ends. Insert each wire into the appropriate hole
on the removable connector blocks; secure the wiring to
the connectors by tightening the small connector screws.
Be certain that proper phasing is observed—connect the
positive terminals on the VCS-2D-HP to the positive termi-
nals on the amplifier and speakers; the negative terminals
on the VCS-2D-HP to the negative terminals on the amplifi-
er and speakers. See (Figures 3 and 4).
The inputs of the VCS-2D-HP are the connector pins
labeled “AMPLIFIER”
. The outputs are the connector pins
labeled “SPEAKERS”
. Be sure not to reverse these connec-
tions or the VCS-2D-HP will not function properly.
8

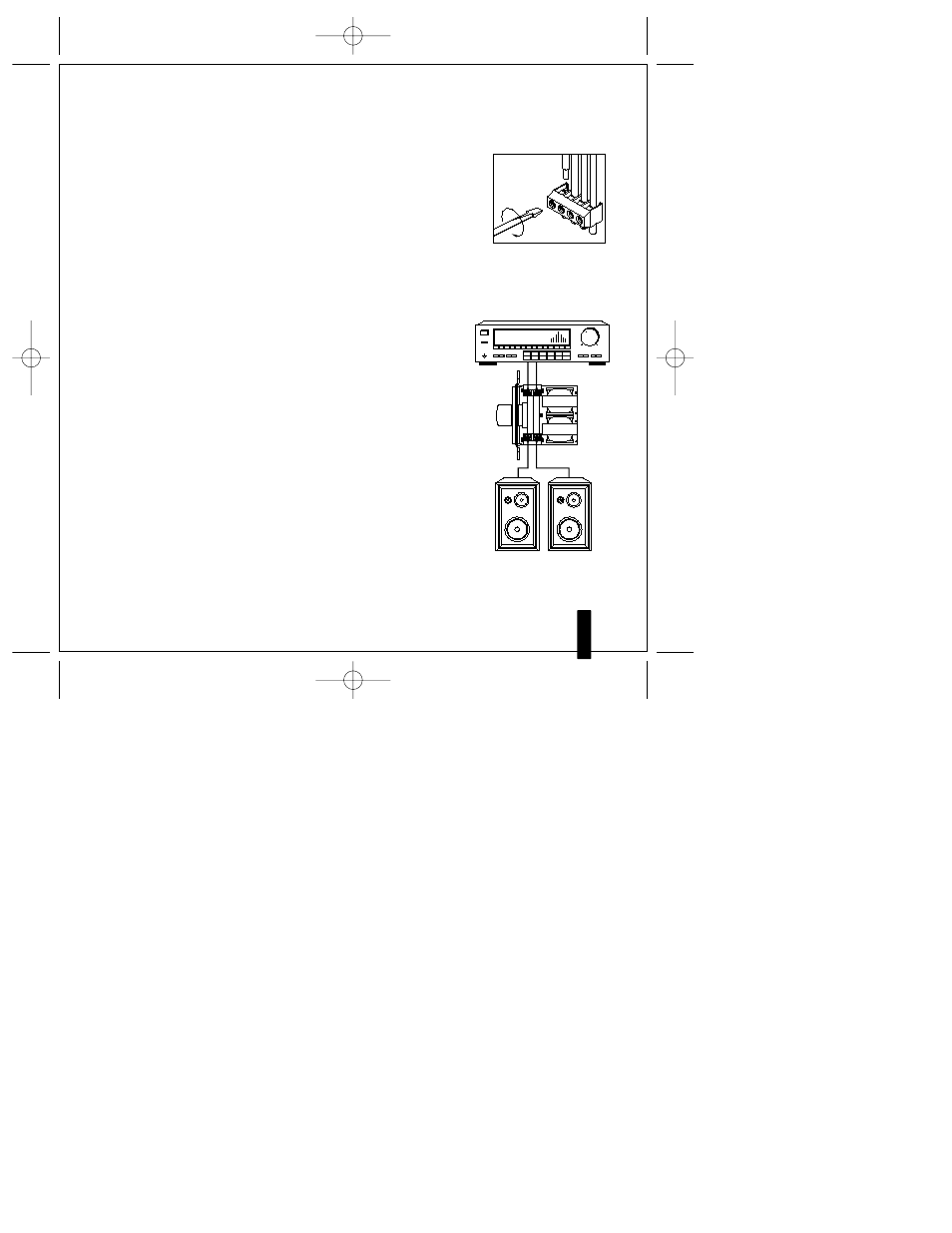

Figure 3
Wiring the Connectors
VCS-2D-HP
From Amplifier (Input)
To Speakers (Output)
SPEAKERS
RECEIVER
Figure 4
Wiring Diagram
H
H
II G
G H
H
P
P
O
O W
W E
E R
R
S
S
T
T E
E R
R E
E O
O
V
V
O
O L
L U
U M
M E
E
C
C
O
O N
N T
T R
R O
O L
L
