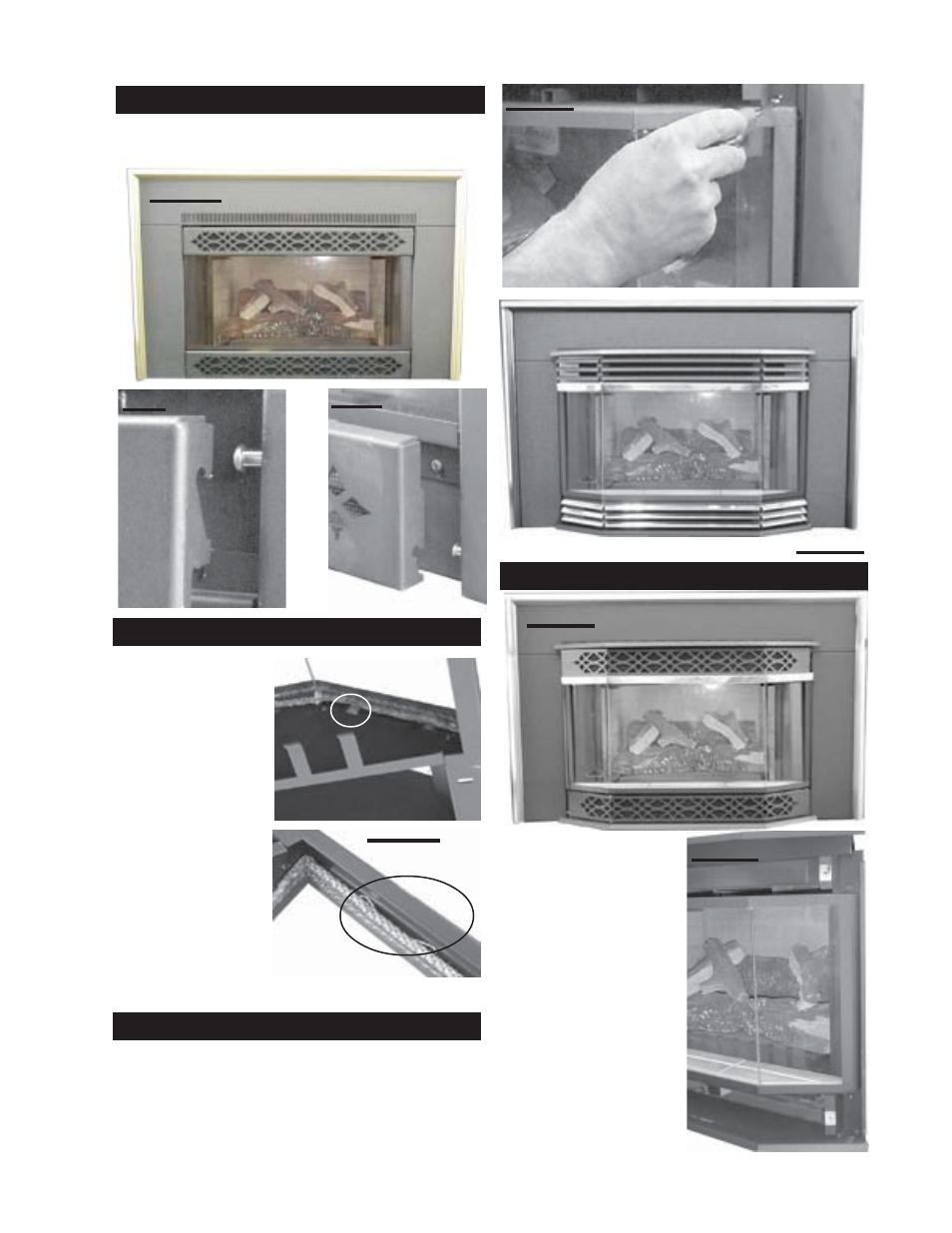

With the bay chassis on
a flat surface, insert the
front glass (bottom first)
and centred to the mitred
edges of the chassis.

Fit the bevelled edge of
the each side glass piece
tightly to either edge of the
front glass.

Secure the glass by bend-
ing up the retainer tabs at
the top and bottom.

Spread and insert the
spring clips between the
side glass and the chas-
sis (2 per side).

Place the front brick panel
pieces into place at the bottom.

Secure the bay to the insert front at the top and bottom
outside corners using 4 screws.

Note:

Black louvre assembly, if supplied, must be installed

as uppers, due to the high fireplace temperature.

SPRING

CLIP

FIGURES 16

RETAINER TAB

Assemble the flashing and mount to the inside of the outer
shell using 4 securing screws and spacers (supplied) as
shown. Hook the ornamental inlays over the spacers.

Both these options may be
attached to the insert front
using 4 magnets, posi-
tioned as shown:

NOTE:The ornamental bay
inlays can be adjusted to
align with the bay door as-
sembly.

FIGURE 17

FIGURE 18

FIGURE 19

FIGURE 20

MAGNET

UPPER

LOWER

FIGURES 15

ORNAMENTAL FLUSH INSETS, GI-OI

BAY GLASS FRONT, GI-BF

BAY LOUVRES, GIB-L

ORNAMENTAL BAY INSETS, GI-OI
