11. Make sure that all parts of the elliptical crosstrainer are properly tightened. Note: Some hardware
may be left over after assembly is completed. To protect the floor or carpet from damage, place a mat
under the elliptical crosstrainer.
9

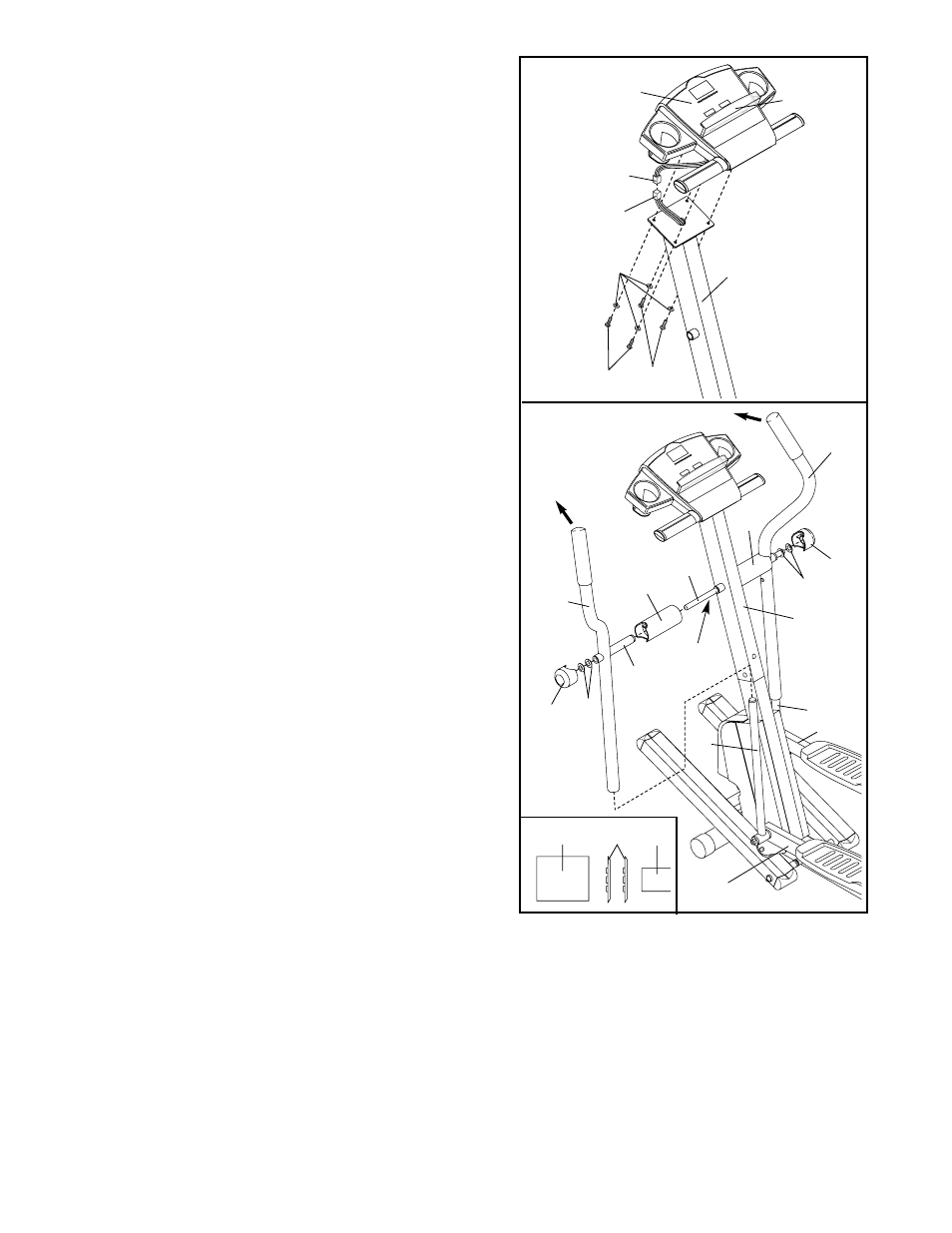

10. Slide the Left Upper Body Arm (15), which is marked
with an “L” sticker, onto the Chrome Tube (98) on the
Left Pedal Arm (3). Slide the Right Upper Body Arm
(18) onto the Chrome Tube on the Right Pedal Arm (4).
Make sure that the Upper Body Arms are on the
correct sides—the upper ends should bend in the
direction shown by the arrows. Next, slide an Axle
Cover (49) onto the post on each Upper Body Arm.
Apply grease to the Arm Axle (34). Insert the Arm Axle
into the Upright (2), the right Pivot Cover (49), and the
Right Upper Body Arm (18) as shown. Push the Arm
Axle into the Upright until the left end of the Axle is flush
with the left side of the Upright. Next, raise the Left
Upper Body Arm (15) and insert the Arm Axle into the
left Axle Cover (49) and the Left Upper Body Arm.
Center the Arm Axle.
Using the included pedal tool, tap two Push Nuts (94)
about 1/8” onto each end of the Arm Axle (34). Make
sure that the Push Nuts are turned as shown in the
inset drawing. Note: It may be helpful if another person
holds a block of wood against one end of the Arm Axle
while you tap Push Nuts onto the other end.
Press the two Axle Caps (51) onto the Arm Axle (34).
10
98
2
49
Post
Grease
49
34
51
51
94
94
15
3
4
18
Pedal Tool 94 34
2
Console
Wire
99
35 35
101
87
Bookrack
9. Remove the four Console Screws (35) and the four
Console Washers (101) from the Console (87).
Connect the console wire to the Extension Harness
(99).
Attach the Console (87) to the Upright (2) with the four
Console Screws (35) and the four Console Washers
(101) removed previously. Be careful to avoid pinch-
ing the wires.
Snap the bookrack onto the Console (87) where shown.
98
