Nikon WT-2 - Manual (Page 10)

3
LOCK
POWER
LINK
BUSY
Knob
Mounting
screw
Standard antenna
(WA-S1) Antenna
connector
Tripod
socket
USB cable
Status LEDs:
POWER
(green), LINK
(orange),
BUSY (green)
Housing
Power
contact

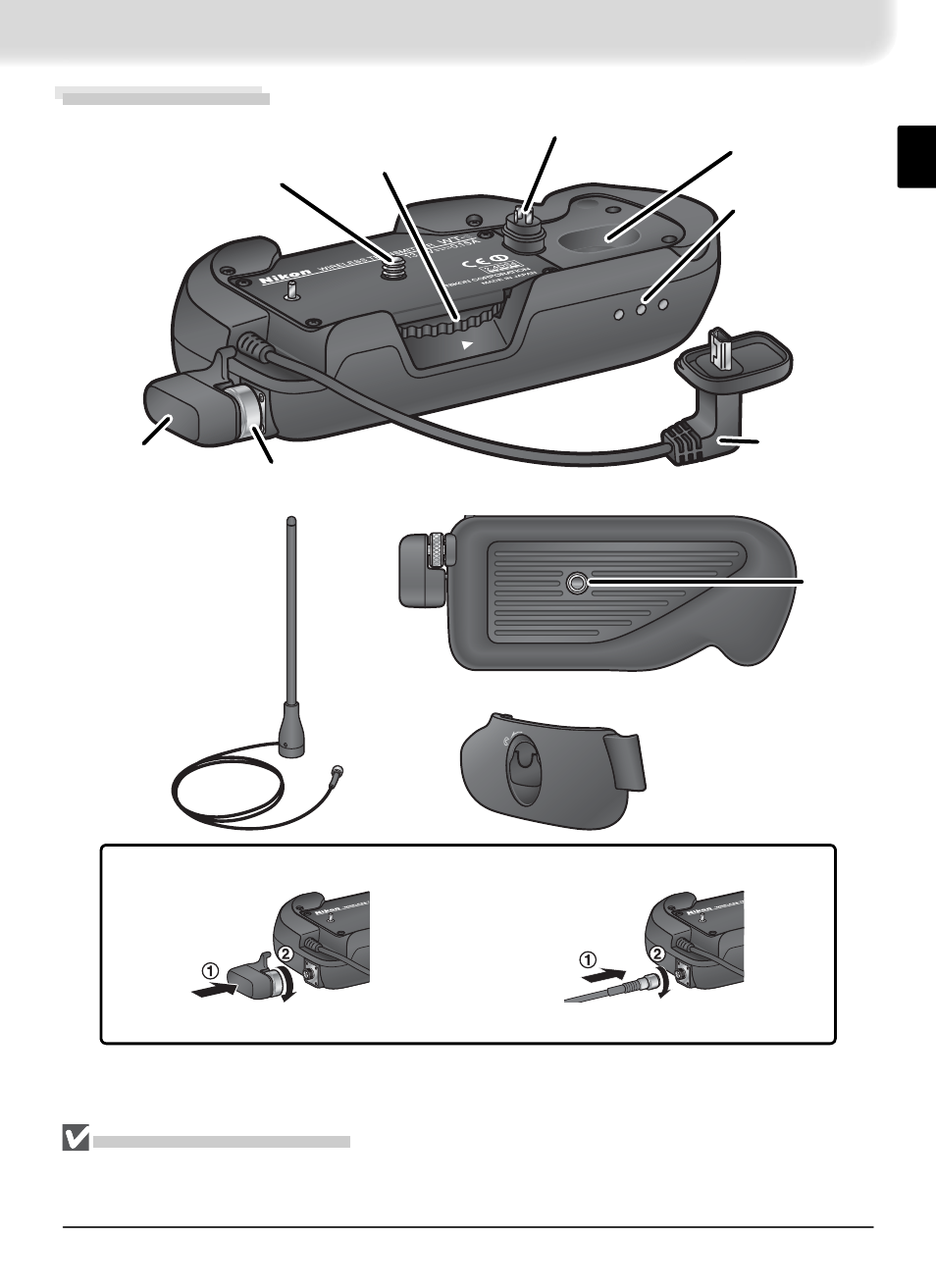

Parts of the WT-2
WA-E1 extended
range antenna with
tripod mount
(available separately)
BL-2 battery-chamber
cover (for camera
battery chamber)
Reorienting the Antenna
Before reorienting the WA-S1, unscrew it from the antenna connector. When using the
WA-E1 (available separately), be careful not to kink or tug the cable.
Attaching an antenna
Standard antenna (WA-S1) WA-E1 extended range antenna
