Page 9

English
1.
INTRODUCTION
9

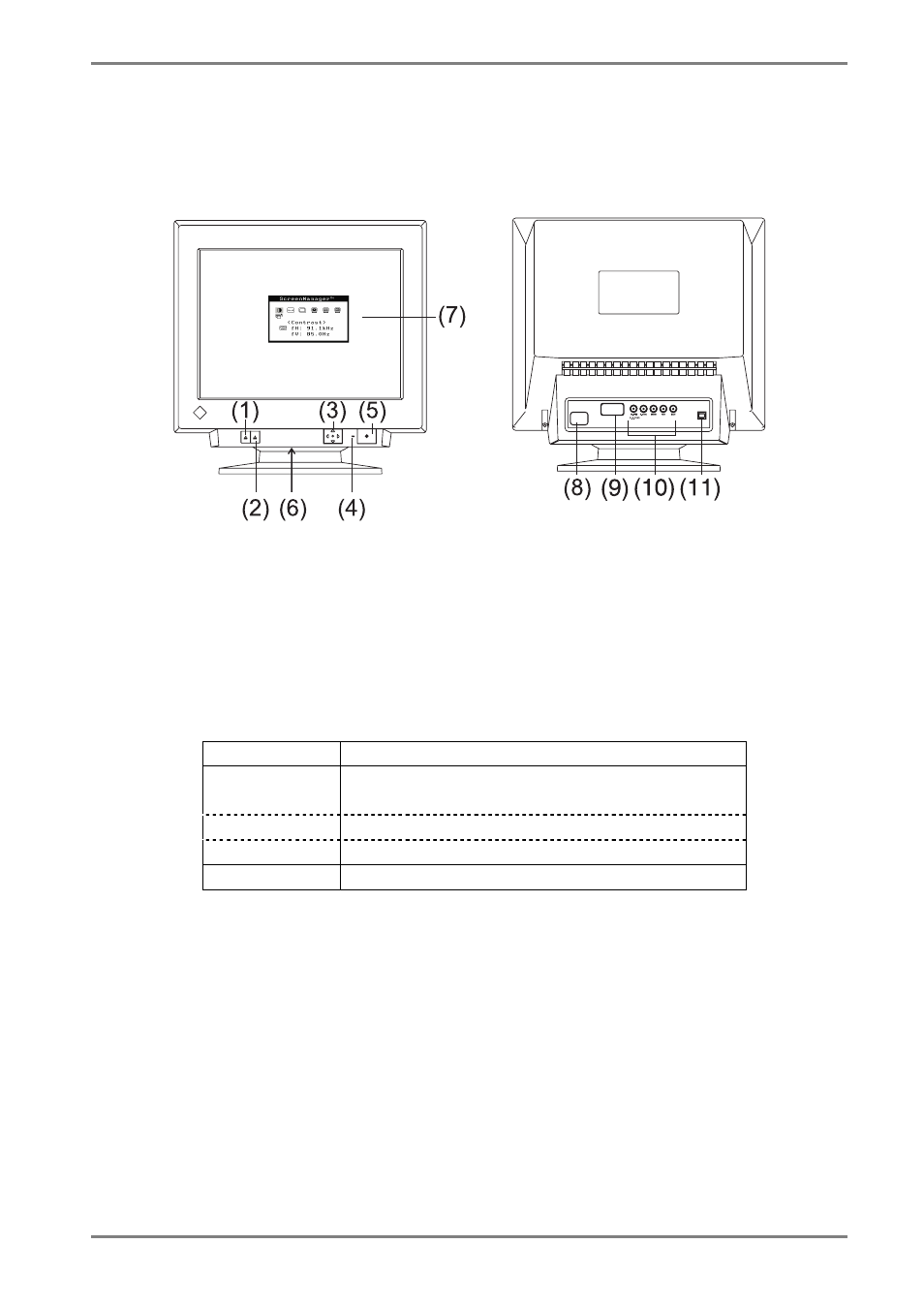

1-3. Controls & Connectors
Front
Rear
(1) BNC/D-SUB Selection Button
(2) AUTO/FINE
MODE
button
Push the button lightly: Fine Contrast Mode Selection button
Press and hold the button more than 2 seconds: AUTO-SIZING button
(3) QuickSet™ Control Pad
(Hereinafter “Control Pad”)
(4) Power
Indicator
Green
Power is on (Normal mode)
Flashing Green
Power save (Mode 1)
Advance notice of monitor's Off Timer
*1
Yellow
Power save (Mode 2)
Flashing Yellow
Power save mode with monitor's Off Timer
*1
Off
Power is off
(5) Power
Switch
(6) Power
Terminal
*2
(with a cover)
(7) ScreenManager™
(8) Power
Connector
(9) D-Sub mini 15 pin connector
(10) BNC Input Connector
(11) USB Port
*3
Upstream port x 1
*1
Regarding the "Off Timer", see page 19.
*2
Power Terminal can be used with an optional i⋅Sound Sound Unit.
*3
USB Port is used when using the software EIZO CRT Utility Disk. (See page 11.)
Bottom
