NuTone ULTRA SILENT QTR series - Manual (Page 4)

MODELS QTRN050F • QTRN080 • QTRN110
Page

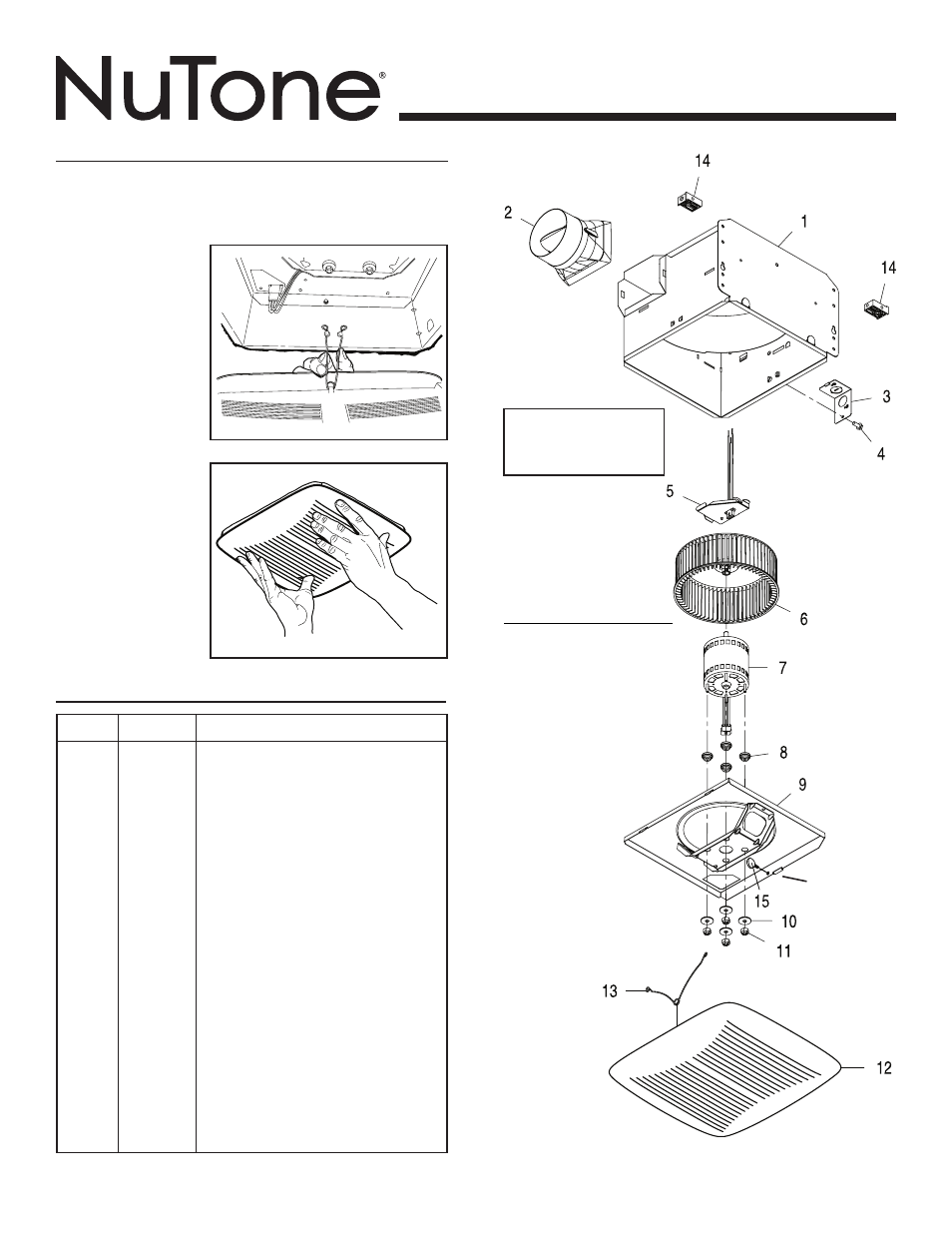

SERVICE PARTS
99044094A
Key No. Part No. Description
1 97016466 Housing
2 97016449 Duct Connector-4”
3 98010102 Wiring Plate
4 99170245 Screw, #8-18 X .375
5 97016932 Wire Panel/Harness Assembly
6 99020284 Blower Wheel
7 99080560 Motor (QTRN050F)
99080568 Motor (QTRN080)
99080582 Motor (QTRN110)
8 99100491 Isolator (4 req’d)
9 97016467 Motor Plate
10 99250959 Washer #8 (4 req’d)
11 99260558 Nut, Hex Lock #8-32 (4 req’d)
* 97016587 Blower Assembly (QTRN050F)
(includes key nos. 6 thru 11)
* 97016621 Blower Assembly (QTRN080)
(includes key nos. 6 thru 11)
* 97016739 Blower Assembly (QTRN110)
(includes key nos. 6 thru 11)
12 97017623 Grille Assembly
(includes key no. 13)
97017641 Grille Assembly - Microban
(includes key no. 13)
13 99140199 Grille Spring (2 req’d)
14 99111293 Spacer (2 supplied)
15 99420665 Thumbscrew, #8-18 x .375
INSTALL GRILLE
7. Attach grille
to housing.
Squeeze grille
springs and insert
them into slots on
each side of hous-
ing.
8. Push grille
against ceil-
ing.
6. Finish ceiling.
Install ceiling material. Cut out around housing.
SERVICE NOTE
To remove Blower Assembly:
Unplug motor (7).
Remove thumbscrew (15)
from motor plate (9) flange.
Find the single TAB on the
motor plate (located next to
the receptacle).
Push up near motor plate tab
while pushing out on side of
housing. Or insert a straight-
blade screwdriver into slot in
housing (next to tab) and
twist screwdriver.
TAB
Order service parts by “Part No.” - not by “Key No.”
Replacement parts can
be ordered on our web-
site. Please visit us at
www.nutone.com
