8

7.

Make sure that all parts are properly tightened before you use the treadmill. Keep the included hex key
in a secure place. The hex key is used to adjust the walking belt (see page 23).

To protect the floor or car-

pet from damage, place a mat under the treadmill.

1.

Make sure that the power cord is unplugged.
Remove the indicated 3/4" Screw (7) and the
Access Door (95) from the left side of the
Console Base (98).

2. Connect the wire on the receiver (A) to the indi-

cated wire extending from the Console Base
(98).

Hold the receiver so the small cylinder is

oriented as shown and is facing the Console
Base.
Attach the receiver to the plastic posts on
the Access Door (95) with the two included small
screws.

3.

Make sure that no wires are pinched.
Reattach the Access Door (95) with the 3/4"
Screw (7). Discard the other wires included with
the receiver.

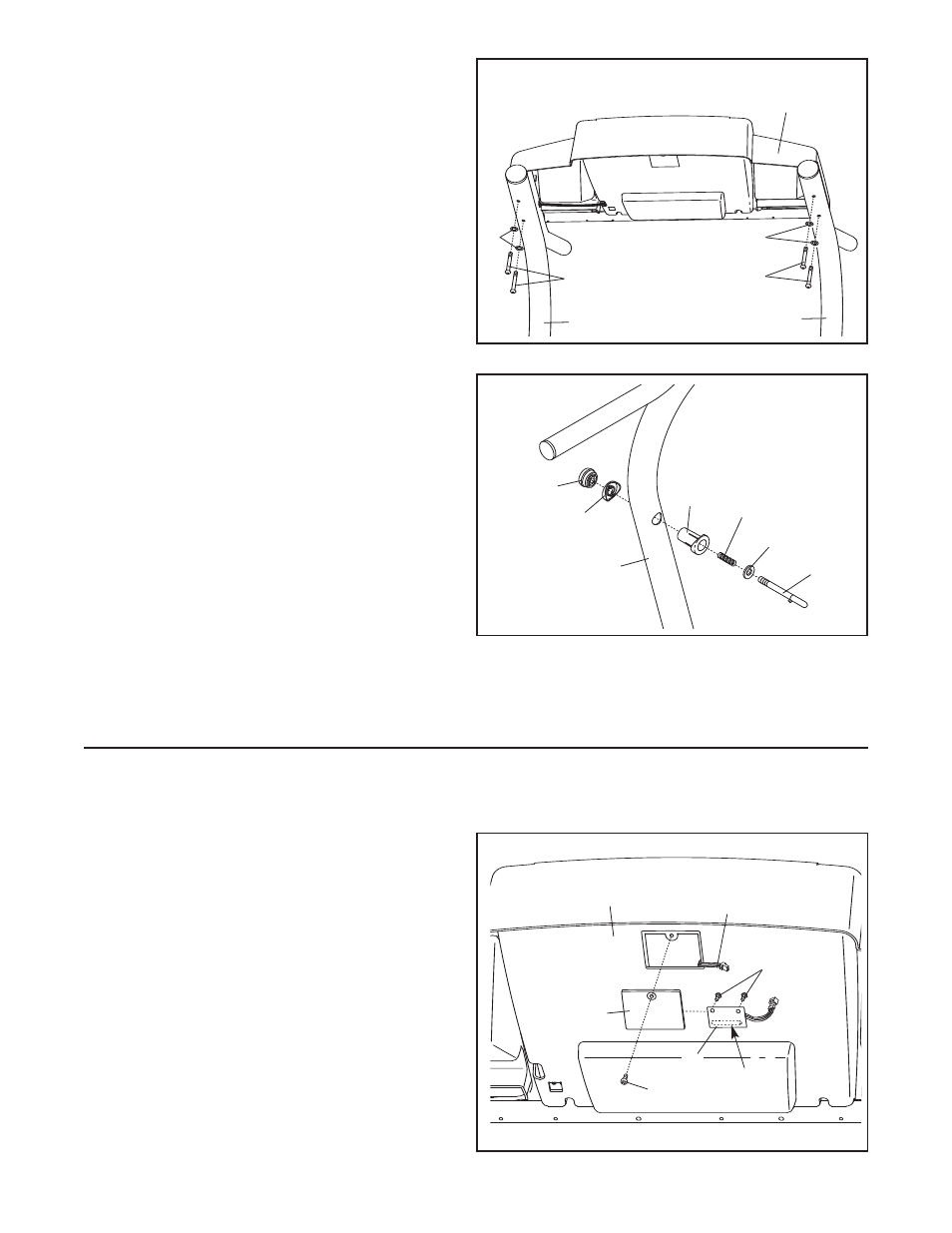

5. With the help of a second person, set the con-

sole assembly on the Uprights (85).

Make sure

that no wires are pinched. Attach the console
assembly with four Console Bolts (72) and four
Star Washers (67).

Start all four Console Bolts

before tightening any of them.

72

67

85

85

67

72

Console

Assembly

5

6. Press the Latch Insert (77) into the right side of

the left Upright (85), and press the Knob Insert
(92) into the left side of the left Upright. Use a
rubber mallet, if necessary.

Remove the latch knob from the latch pin. Make
sure that the collar and the spring are on the pin.
Next, insert the pin into the Latch Insert (77), and
tighten the knob back onto the pin.

77

92

Knob

85

Latch Pin

Collar

Spring

6

If you purchase the optional chest pulse sensor (see page 19), follow the steps below to install the re-
ceiver included with the chest pulse sensor.

A

98

Small

Cylinder

7

95

Wire

Small

Screws
