NordicTrack 30702.0 - Manual (Page 7)

7

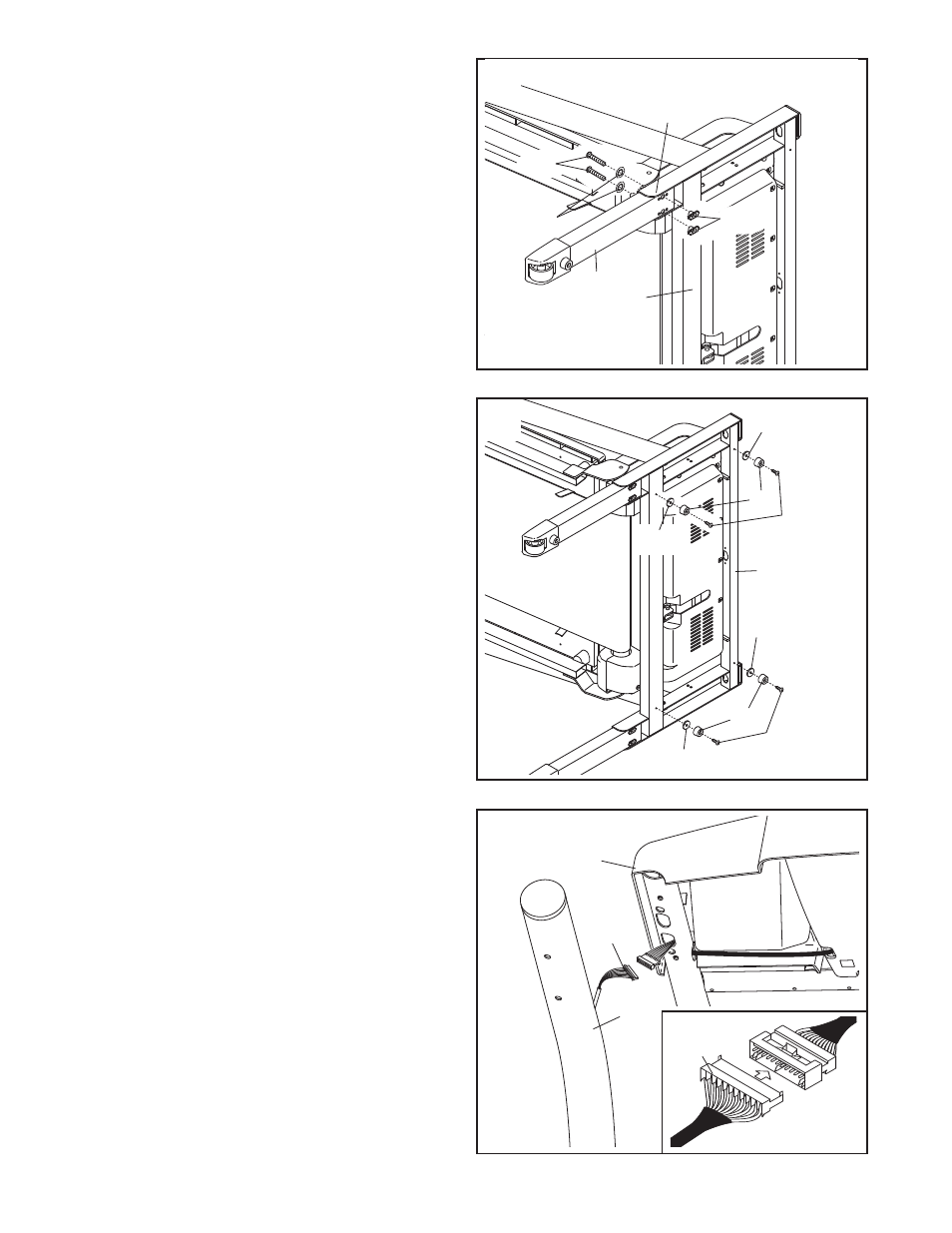

2. Insert the other Extension Leg (97) into the indi-
cated bracket on the base of the Uprights (85) as
shown.
Attach the Extension Leg (97) with two Extension
Leg Bolts (87), two Star Washers (67), and two
Extension Leg Nuts (106) as shown.
Firmly
tighten the Extension Leg Bolts.
85
Bracket
97
106
87
67
2
3. Attach the four Base Pads (81) to the base of the
Uprights (85) in the indicated locations with four
Plastic Washers (101) and four 1" Tek Screws
(82). Note: One replacement Base Pad may be
included. Use the Base Pad to replace any Base
Pad that becomes worn.
With the help of a second person, carefully tip
the treadmill down so that the Base Pads (81)
are resting on the floor and the Uprights (85) are
in the vertical position.
82
85
81
82
81
101
101
101
3
4. Remove the band securing the Upright Wire
Harness (73) to the right Upright (85). Have a
second person hold the console assembly near
the right Upright.
Connect the Upright Wire Harness (73) to the
wires extending from the console assembly.
See
the inset drawing. The connectors should
slide together easily and snap into place. If the
connectors do not slide together easily and snap
into place, turn one connector and try again.
IF
THE CONNECTORS ARE NOT CONNECTED
PROPERLY, THE CONSOLE MAY BE DAM-
AGED WHEN THE POWER IS TURNED ON.
Insert the connectors into the right Upright (85).
73
85
Console
Assembly
73
4
101
