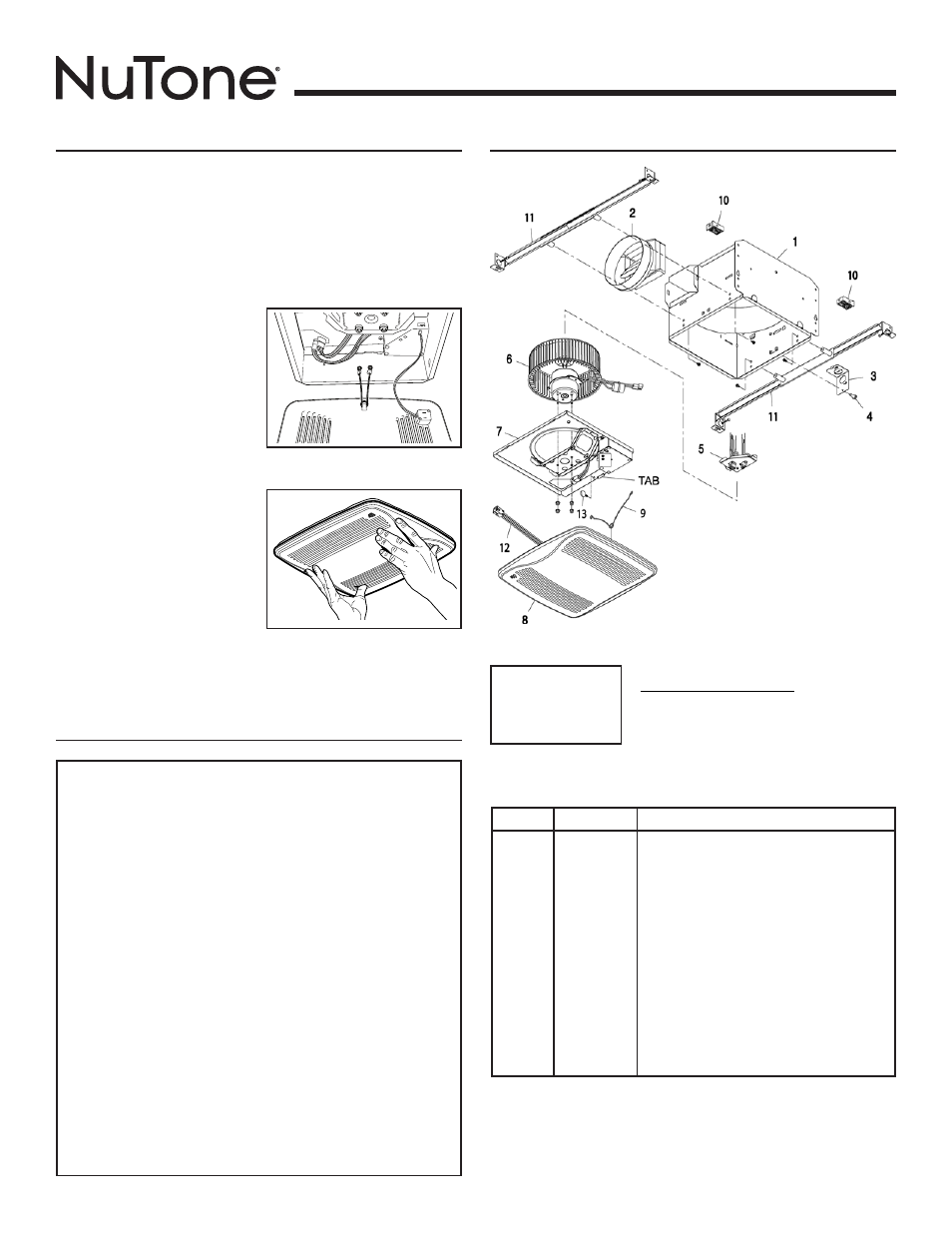

MODEL QTXEN110S
SERVICE PARTS
99044989A
Key No. Part No.
Description
1
97016466
Housing
2
97016450
Duct Connector-6”
3
98010102
Wiring Plate
4
99170245
Screw, #8-18 X .375
5
97017085
Wire Panel/Harness Assembly
6
97017999
Motor/Blower Wheel Assembly
7
97017083
Motor Plate & Control Assembly
*
97017087
Blower Assembly
(includes key nos. 6 & 7)
8
97016964
Grille Assembly
(includes key nos. 9 & 12)
9
99140199
Grille Spring (2 req’d)
10
97018014
Spacer (2 supplied)
11
QTNHB1
Hanger Bar Kit
12
99271344
Sensor Wire Harness
13
99420665
Thumbscrew, #8-18 x .375
INSTALL GRILLE
6. Finish ceiling.
Install ceiling material. Cut out around housing.
7. Plug in wiring.
Plug wiring into the proper receptacles.
8. Attach grille to
housing.
Squeeze grille springs
and insert them into slots
on each side of housing.
9. Push grille against
ceiling.
WARRANTY
SERVICE NOTE
To remove Blower Assembly: Unplug motor. Re-
move thumbscrew (13) from motor plate flange.
Find the single TAB on the motor plate (located
next to the receptacle). Push up near motor
plate tab while pushing out on side of housing.
Or insert a straight-blade screwdriver into slot
in housing (next to tab) and twist screwdriver.
