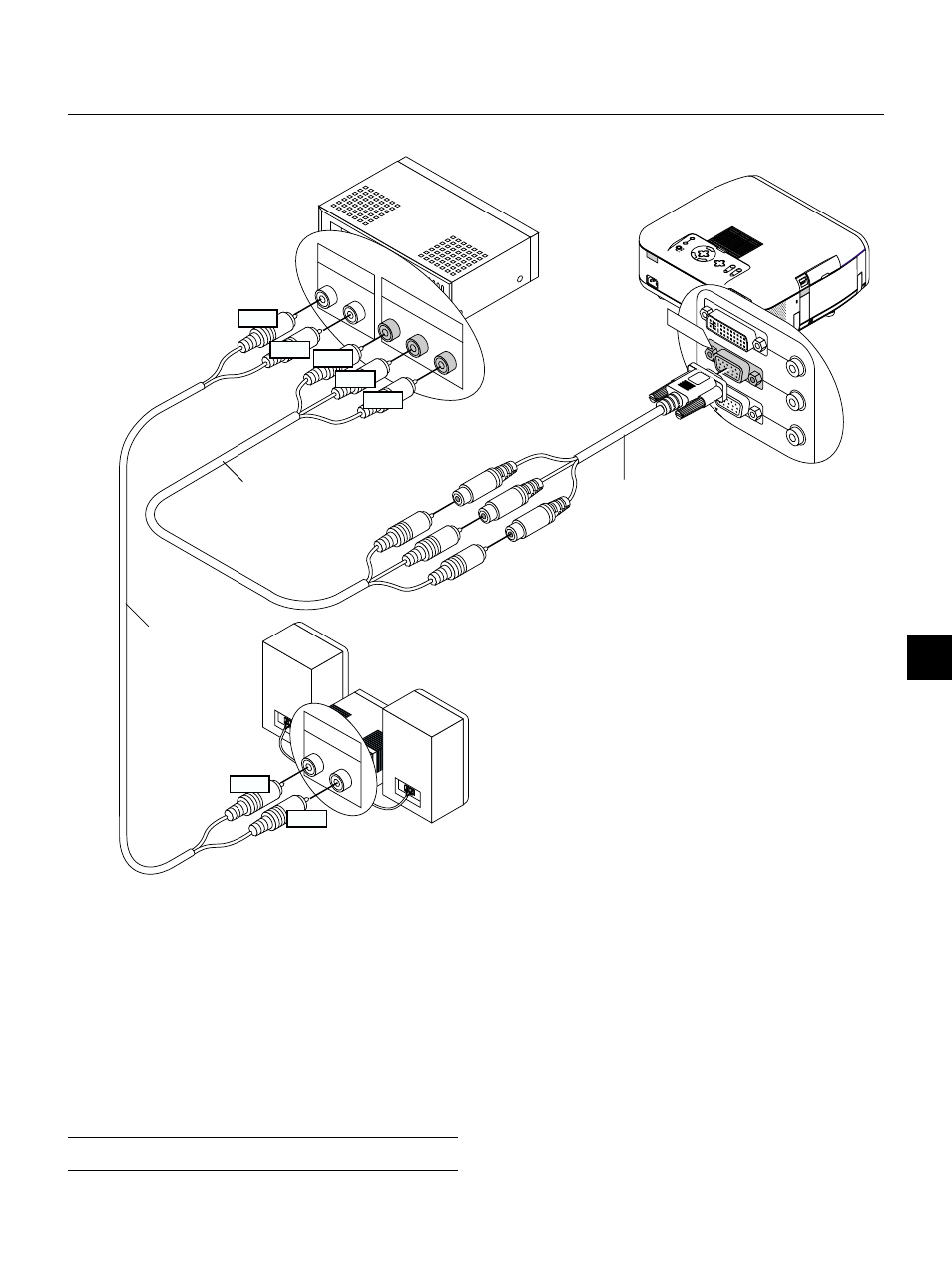

Connecting Your DVD Player
You can connect your projector to a DVD player with component out-
puts or Video output. To do so, simply:
1. Turn off the power to your projector and DVD player.
2. If your DVD player has the component video (Y,Cb,Cr) output, use a
commercially available component video cable (RCA ן3) and the
optional 15-pin-to-RCA (female) ן3 cable to connect your DVD player
to the RGB INPUT connector on the projector.
For a DVD player without component video (Y,Cb,Cr) outputs, use
common RCA cables (not provided) to connect a composite VIDEO
output of the DVD player to the Video Input of the projector.
3. Turn on the projector and DVD player.
NOTE: Refer to your DVD player’s owner’s manual for more information about
your DVD player’s video output requirements,
Audio cable
(not supplied)
Component video cable
RCA
ן3 (not supplied)
Audio Equipment
