conditioner will automatically turn on. This will
dehumidify the air and help to defog the
windows. The A/C indicator light will illuminate
when the air conditioner automatically turns on.
The air conditioner and A/C indicator light will
remain on in all flow control modes until the A/C
button is pressed or the fan control dial is turned
to off.

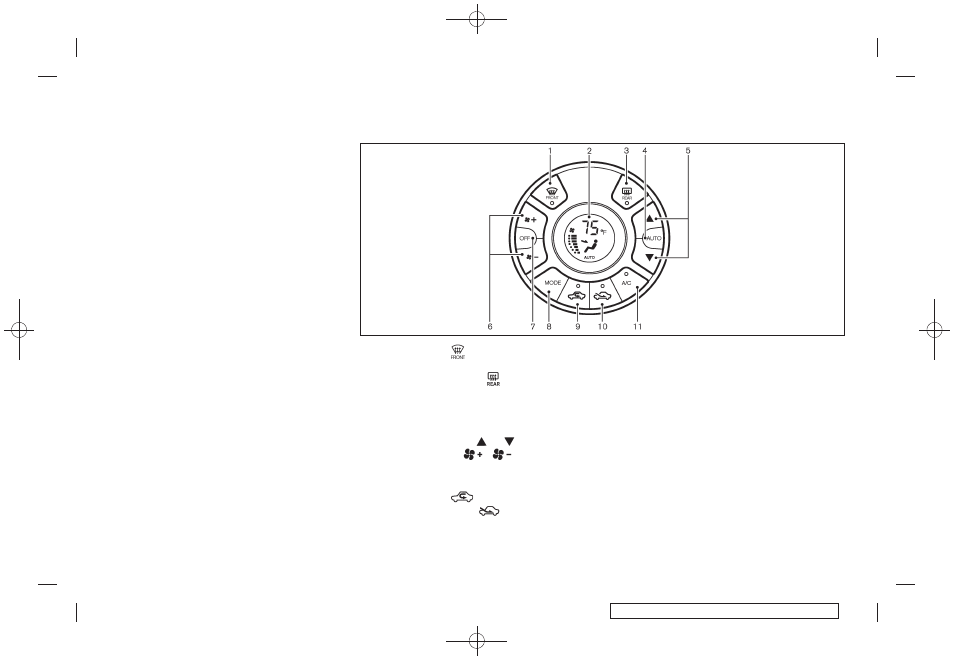

SAA2346
1 Front defroster button
2 Display*
3 Rear window defroster button (See “REAR
WINDOW AND OUTSIDE MIRROR DEFROS-
TER SWITCH” in the “2. Instruments and con-
trols” section.)
4 AUTO button
5 Temperature control , button
6 Fan speed control , button
7 OFF button
8 MODE button
9 Air recirculation button
10 Outside air circulation button
11 A/C (Air Conditioner) button
*:
Temperature is displayed 8F (US) or 8C (Canada).
AUTOMATIC AIR CONDITIONER
Automatic operation (AUTO)
The AUTO mode may be used year-round as the
system automatically controls constant tempera-
ture, air flow distribution and fan speed.
To turn off the heater and air conditioner, push
the OFF button.
Cooling and dehumidified heating:
1. Push the AUTO button. (The AUTO indicator
will be displayed.)
2. If the A/C indicator light does not illuminate,
push the A/C button. (The A/C indicator
light will illuminate.)
4-6 Heater, air conditioner, audio and phone systems
