13
W415-0319 / D / 08.03.05

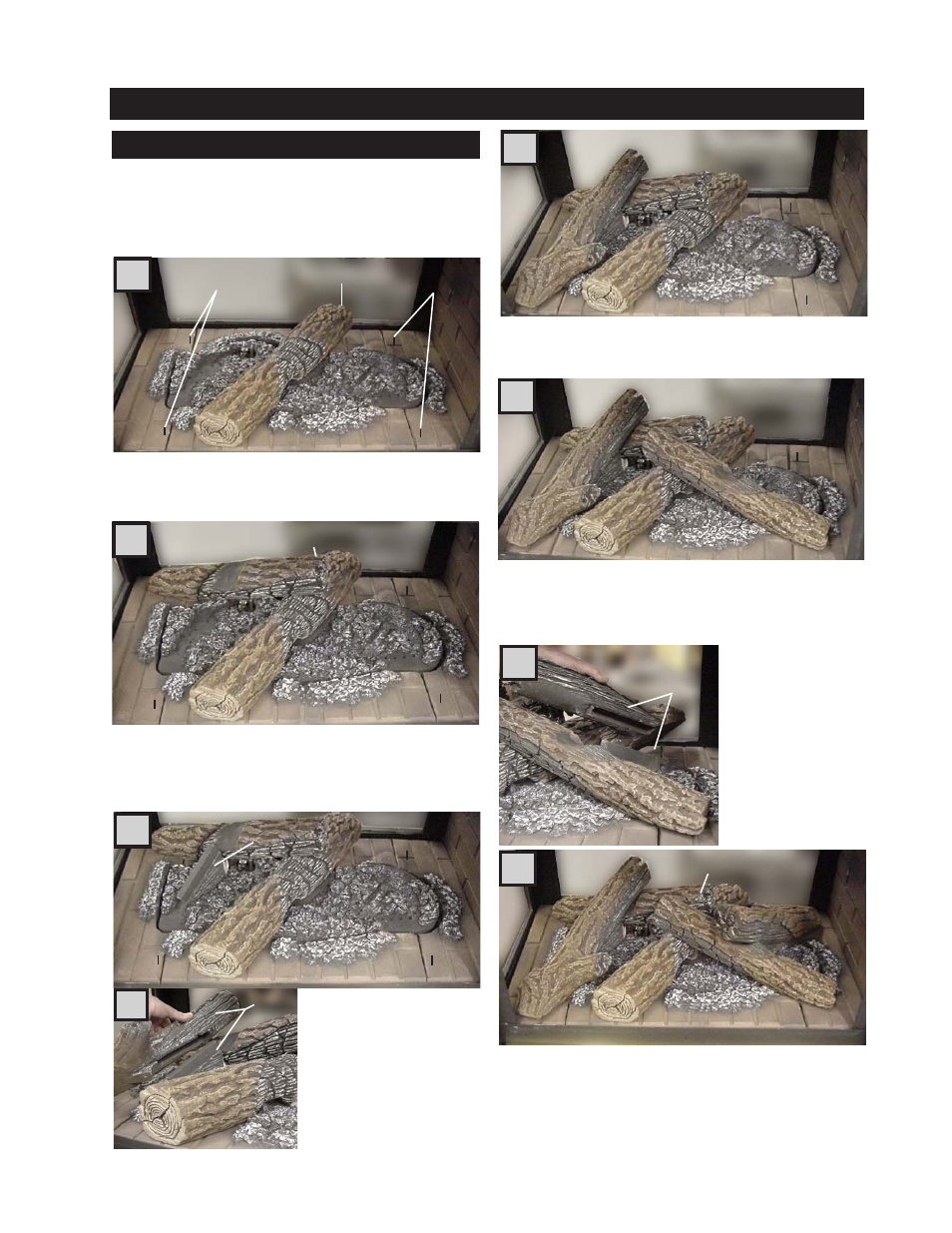

PHAZER TM logs, glowing and charcoal embers, exclusive
to Napoleon fireplaces, provide a unique and realistic glow-
ing effect that is different in every installation. Take the time
to carefully position the embers for a maximum glowing
effect. Figures 21 A - H.
1. Place log #1 diagonally across the textured burner cover
onto the pins. The texture is designed to cradle the under-
side of the log.
2. Depending on the type of installation, the view of the log
positioning will reverse. Here the lower end of log #2 rests
near the back left corner of the firebox on the locating pin.
The upper end sits on top of log #1, inside the groove on
log #2.
3. Log # 3 is made up of
two pieces, a and b. Piece
#3a is the base of log #3.
The base sits diagonally in
the designated area lo-
cated between logs #1 and
fits tight up against #2.
4. The slot in the under-
side of piece #3b fits over
#3a. Place the end of
piece #3b onto the pin.
5. When pieces #3a and #3b are attached to create log
#3, the upper end of log #3 should rest in the groove, on
top of log # 2.
6. As with log # 1, log #4 is also cradled by the texture of the
burner cover and the pin in the base. Position log #4 so that
the lower end fits onto the pin. The upper end rests against
the moulded locater on the top of log # 1.
7. Like log #3, log #5
also comes in two
pieces. The base
(#5a) slopes
outwards between
logs #2 and #4.
As with pieces #3a &
b, piece #5b fits over
piece #5a. Place the
end of piece #5b
onto the pin.
8. The upper end of log #5 rests in the groove, on top of
log #4 and creates the final appearance of the log set.
a
D
b
#3
#3
E
#1
#2
#3
#4
#5
H
#5
a
b
G
A
LOCATING PINS
#1
LOCATING PINS
#2 B
C
#3a
F
#4
FINISHING
LOG PLACEMENT
